FANUC A06B-6110-H011

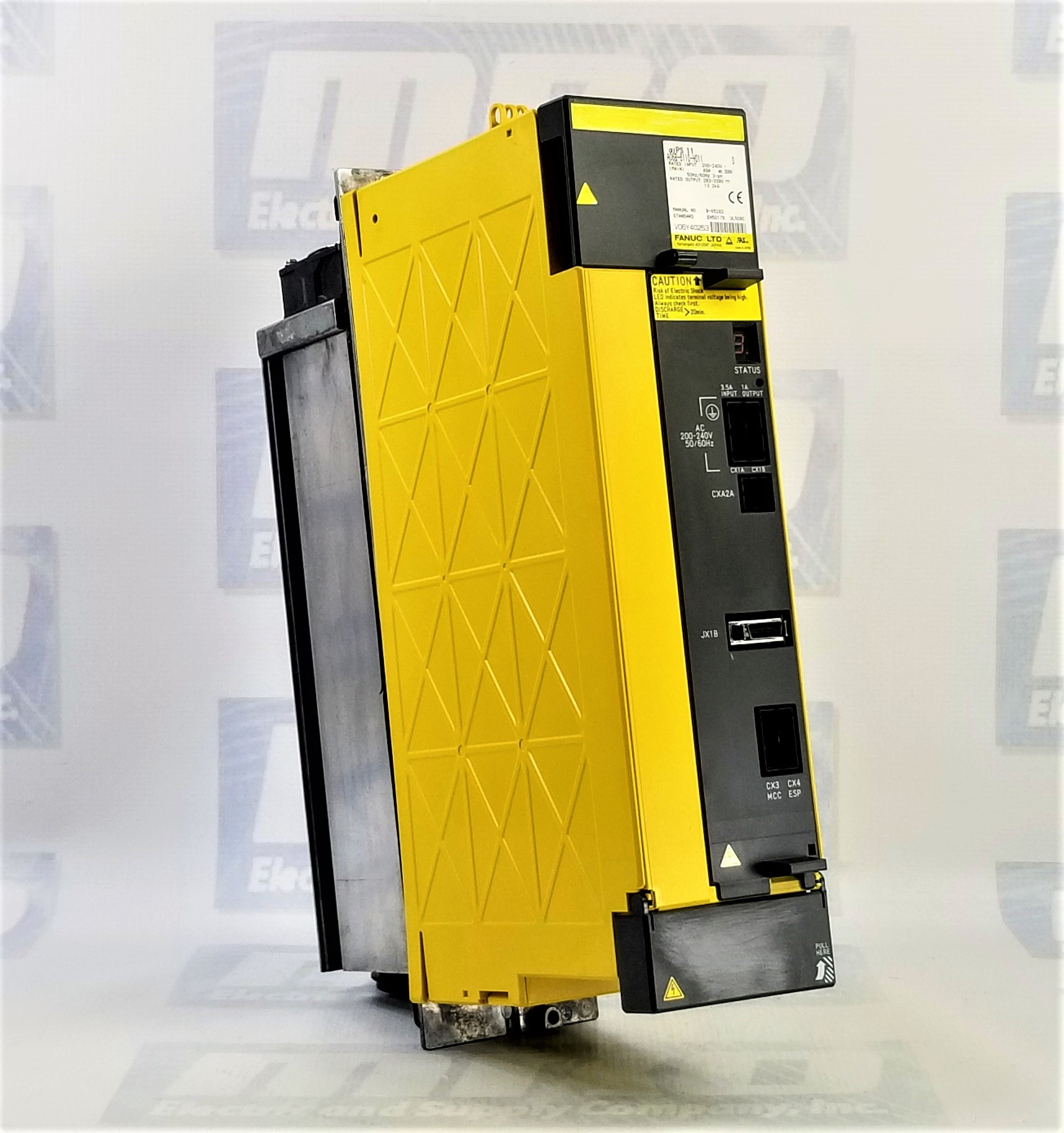

Fanuc Power Supply Module A06B6110H011

The αi power supply module A06B6110H011 from FANUC is designed with a modular structure, resulting in a sleeker profile that takes up less space, produces lower heat, and consumes less energy. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Siemens and Control Techniques.

The Fanuc part A06B6110H011 has a rated input of 200-240 V~ and a current input of 49 A at 200 V. It has a frequency of 50/60 Hz and operates in 3 phases. The rated output for this part is between 283-339 V, with a power output of 13.2 kW. The corresponding manual number for this part is B-65282.

Features

The Fanuc A06B6110H011 is a Power Supply module from the 200-V input series, intended to serve as the primary power source in the range of 200 to 240 V. This module employs power regeneration technology, which enables it to recover energy during motor deceleration (regeneration) and return it to the power supply.

Input Power Specifications

The primary power supply voltage range is three-phase 200 VAC to 240 VAC. The control power supply voltage range is single-phase 200 VAC to 240 VAC, with input from connector CX1A. An allowable voltage deviation of -15% to +10% is permissible, including voltage variation caused by load. The instantaneous power failure guarantee time is 3ms. The power frequency is 50/60Hz, with a tolerance of ±1Hz. The power supply unbalance should be ±5% of the rated voltage or less. Note that voltage variation must be within ±7% when producing maximum output voltage during non-load time, such as power running and regeneration.

To ensure proper functionality, the power supply input of CX1A for the αi PS control module must be turned on either before or simultaneously with the CNC. For information on the optimal timing for powering on the αi PS and CNC simultaneously, please refer to the power supply chapter in the hardware connection manual of the specific CNC being used.

Function

The αi PS series power supplies serve as the primary power source for motor power and a universal power supply for delivering control power to servo amplifiers. It is important to choose a suitable Power Supply that matches the output levels of the servo motor and spindle motor employed.

Please note that in case the power supply impedance is high, and the voltage variation surpasses the specified values, the αi PS module may issue an alarm (DC link undervoltage alarm or DC link overvoltage alarm). Alternatively, the motor output can decrease.

By utilizing the latest low-loss power device and a newly developed highly-efficient radiator, it is now feasible to diminish the fin depth to 100 mm, resulting in a reduced amplifier depth. This reduction in depth also allows for a decrease in amplifier width, resulting in an average of around 30% reduction in required installation space within the cabinet when compared to traditional amplifiers. Additionally, the cable connector's shape has been enhanced, which aids in the reduction of the cable projection length into the control board.

It is possible to connect amplifiers using a single cable. A ground connection from the motor output terminal block to the flange is integrated, eliminating the need for external cabling for this connection. However, it is still necessary to have a connection from the top of the flange to the system ground on the control board.
