FANUC A06B-6102-H230#H520

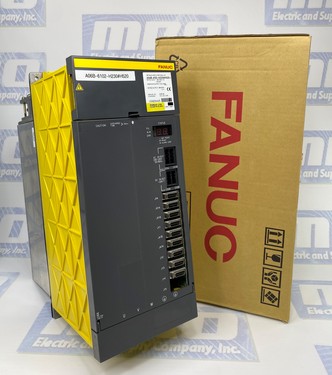

FANUC A06B-6102-H230#H520 Spindle Amplifier

Overview

The FANUC A06B-6102-H230#H520 spindle amplifier is a robust, high-performance component from the Alpha series designed for seamless integration into CNC-controlled machine systems. Renowned for its reliability and precision, this spindle amplifier is integral to FANUC’s advanced motion control solutions, providing consistent power delivery and high-speed operation for demanding industrial applications.

Power and Performance

Rated at 47 horsepower (35 kW), the A06B-6102-H230#H520 spindle amplifier is engineered for machines requiring substantial power and efficiency. It operates with a voltage range of 283-325 V on the input side, delivering a robust output voltage of 565-679 V to the spindle motor. An impressive output current of 133 A ensures smooth and reliable performance under heavy loads.

Precision Control for CNC Applications

This spindle amplifier is designed to support CNC (Computer Numerical Control) systems, making it ideal for precision machining applications. Its ability to provide fine control over spindle speed and torque enhances machining accuracy, improves surface finishes, and boosts overall productivity.

Durability and Compliance

Built to meet industrial standards, the A06B-6102-H230#H520 is CE-approved, ensuring safety, quality, and compliance with international regulations. Its durable construction allows it to withstand harsh operating conditions while maintaining consistent performance, making it a trusted choice for manufacturers worldwide.

Key Specifications

• Power Rating: 35 kW (47 hp)
• Input Voltage: 283-325 V
• Output Voltage: 565-679 V (maximum output voltage: 230 V)
• Output Current: 133 A
• Manual Reference: B-65162

Features and Benefits

• Energy Efficiency: Delivers efficient power conversion, reducing energy consumption and operational costs.
• High Output Capacity: Supports heavy-duty machining operations with high-speed and high-torque demands.
• Compact Design: Fits seamlessly into existing setups, optimizing space within control cabinets.
• Enhanced Reliability: Designed to minimize downtime with durable components and advanced diagnostics.
• Precision Machining Support: Enables superior control over machining parameters, improving accuracy and consistency.

Applications

The FANUC A06B-6102-H230#H520 spindle amplifier is suitable for various industrial applications, including:

• CNC Lathes and Milling Machines: Ensuring precise control for high-quality machining.
• Grinding Machines: Supporting intricate processes that demand precision.
• Robotics and Automation: Powering high-performance robotic arms for complex tasks.
• Manufacturing Lines: Facilitating efficient and consistent spindle operation in large-scale production environments.

Ease of Use and Maintenance

With its user-friendly interface and comprehensive manual (B-65162), this spindle amplifier is straightforward to install and operate. Routine maintenance is minimal, but periodic inspections are required to ensure optimal performance and longevity.

Warranty and Shipping

FANUC backs the A06B-6102-H230#H520 spindle amplifier with a 2-year warranty through MRO Electric and Supply, offering peace of mind and reliable post-purchase support. Also, free shipping makes this high-quality component cost-effective for businesses seeking efficient and dependable solutions.

Why Choose the A06B-6102-H230#H520?

The FANUC A06B-6102-H230#H520 spindle amplifier is a versatile and robust solution tailored to meet the rigorous demands of modern manufacturing and machining industries. Its blend of performance, durability, and precision ensures that it remains a trusted component for enhancing CNC machine efficiency and productivity. Whether upgrading existing systems or integrating new equipment, this spindle amplifier delivers reliable performance with the backing of FANUC’s renowned engineering excellence.

Frequently Asked Questions (FAQ) for FANUC A06B-6102-H230#H520 Spindle Amplifier

What is the FANUC A06B-6102-H230#H520?

This spindle amplifier from FANUC’s Alpha series is designed to provide precise control and power delivery to CNC spindle motors. It is a critical component for applications requiring high-speed and accurate machining.

What are the input and output voltage specifications?

• Input Voltage: 283-325 V
• Output Voltage: 565-679 V

The amplifier ensures efficient power conversion and reliable operation for CNC applications.

What is the rated power and current output of this spindle amplifier?

• Rated Power Output: 35 kW (47 hp)
• Output Current: 133 A

These specifications make it suitable for heavy-duty industrial applications.

What type of control does the amplifier support?

This amplifier is designed for CNC control systems. It enables precise management of spindle speed, torque, and acceleration, which is essential for machining applications requiring high accuracy.

Is the FANUC A06B-6102-H230#H520 CE-certified?

This spindle amplifier is CE-approved, ensuring compliance with international safety and quality standards.

What are typical applications for this amplifier?

The A06B-6102-H230#H520 is used in:

• CNC Lathes
• Milling Machines
• Grinding Machines
• Robotic Systems
• High-speed manufacturing lines

What is the warranty provided for this product?

MRO Electric and Supply offers a 2-year warranty on the spindle amplifier, offering peace of mind and reliable after-sales support.

What is included in the shipping policy?

The product qualifies for free shipping, making it a cost-effective option for businesses looking to minimize procurement costs.

How does this amplifier enhance machining performance?

With precise control, high output capacity, and energy-efficient operation, it boosts machining accuracy, reduces energy consumption, and ensures consistent performance for demanding tasks.

Where can I find maintenance instructions for this amplifier?

Maintenance guidelines are detailed in the included manual (B-65162). Routine checks include:

• Inspecting for debris or damage
• Ensuring proper ventilation
• Monitoring input and output parameters for consistency

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Spindle Amplifiers from other manufacturers such as Siemens and Control Techniques.
