A06B-6096-H201

2-year Warranty

Same Day Shipping

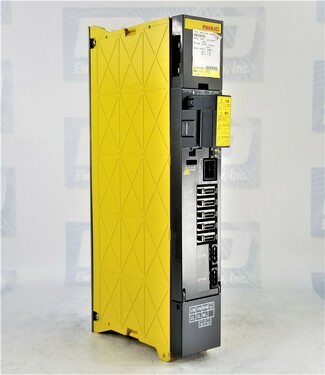

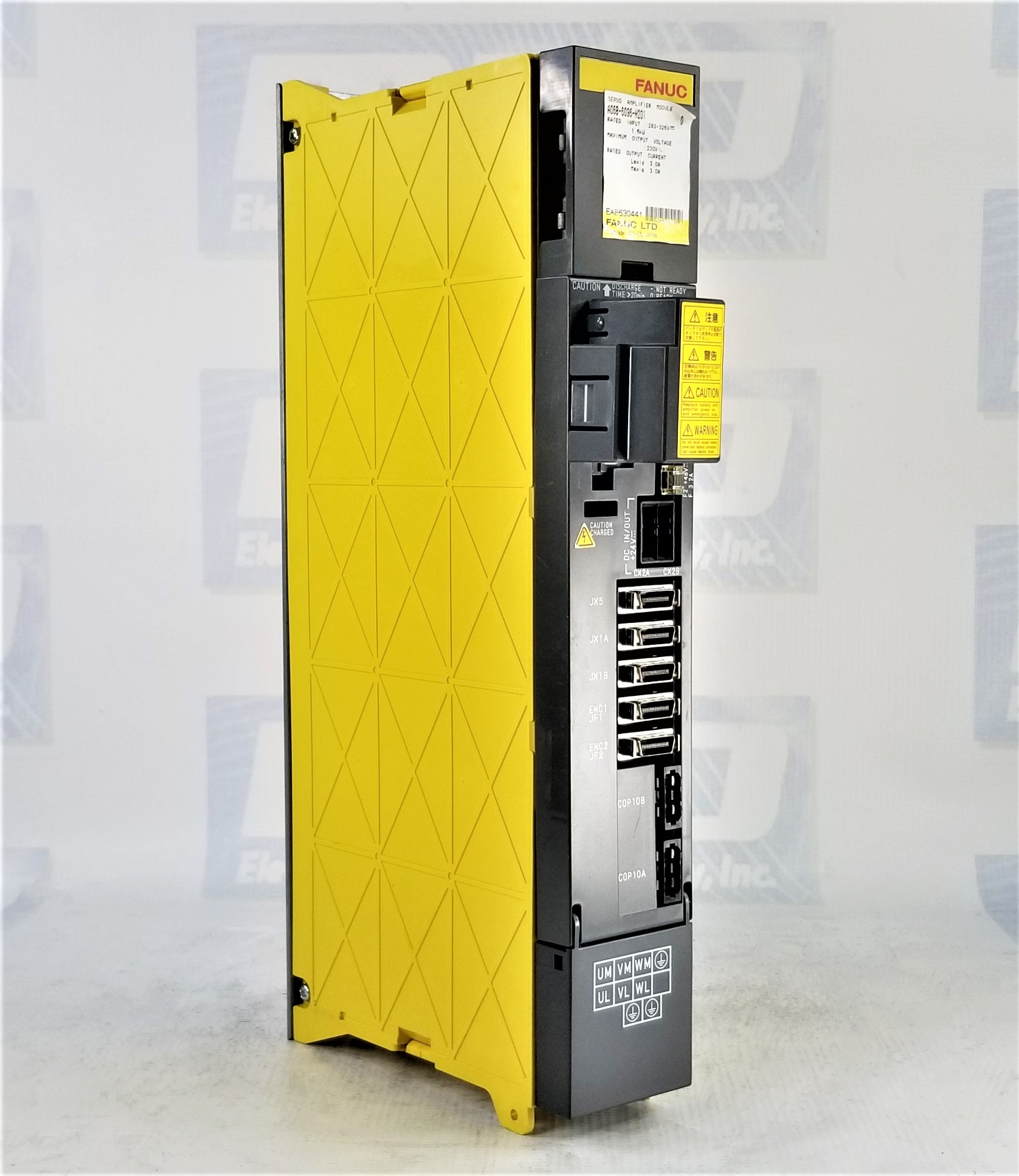

FANUC A06B-6096-H201

ALPHA 2 AXIS SERVO MODULE MDL SVM2-12/12
5/5
4 ratings

Select Condition

Refurbished

2 in stock

$1,937.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberA06B-6096-H201
ManufacturerFANUC
TypeServo Amplifiers
Model #A06B6096H201
Warranty2 Year
Rated Input 283-325 V
1.5 kw
Max Output230 V ~
Rated Output Current3.0 A
Axis 2-Axis
 SVM212/12/
INTERFACEFSSB

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A06B-6096-H201 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A06B-6096-H201 we also repair a wide range of other FANUC products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A06B-6096-H201, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 7lbs

Want it shipped tomorrow?

  • Order within the next 19 hours and 12 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A06B-6096-H201 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

FANUC A06B-6096-H201 Overview

Fanuc A06B6096H201 SVM2-12/12

The Fanuc A06B6096H201 is an SVM2-12/12 two-axis servo amplifier module with an FSSB interface. Its wiring board specification is A16B-2202-0750, and its printed circuit board specification is A20B-2100-0541 (alternatively A20B-2100-0251).

When HRV3 is being used, it is recommended to use the following boards in combination:

A16B-2202-075X as the wiring board, and A20B-2100-054X as the printed circuit board.

Which components make up the Fanuc servo amp series?

The Fanuc servo amp series is composed of various units and components, including (1) Basic power supply module (PSM), (2) Basic servo amplifier module (SVM), (3) Basic spindle amplifier module (SPM), (4) Basic AC reactor, (5) Basic connectors for cable connections, (6) Basic fuses, (7) Optional power transformer, and (8) Optional fan adaptor.

How do you configure the Servo amp with the series?

To set up the servo amp with the series, the typical configuration involves one spindle amplifier module and two two-axis servo amplifier modules.

Installing a capacitor unit for power-factor improvement is not advised since it may have a negative impact on power regeneration.

The rated output of the motor is ensured only for the rated input voltage. Even if the input voltage change falls within the permissible range, the rated output may not be achieved.

If the input voltage falls outside the range of 200 to 240 VAC, a power transformer is necessary when using the power supply in that area.

Grounding is essential for the main circuit and 200V control power supply. This can be achieved by connecting the ground through either the neutral point or one phase of the three-phase power supply.

In order to comply with the EMC regulation enforced in EU countries, it is necessary to install a noise filter in the power supply input section.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Servo Amplifiers from other manufacturers such as Siemens and Control Techniques.
