FANUC A06B-6088-H230#H500

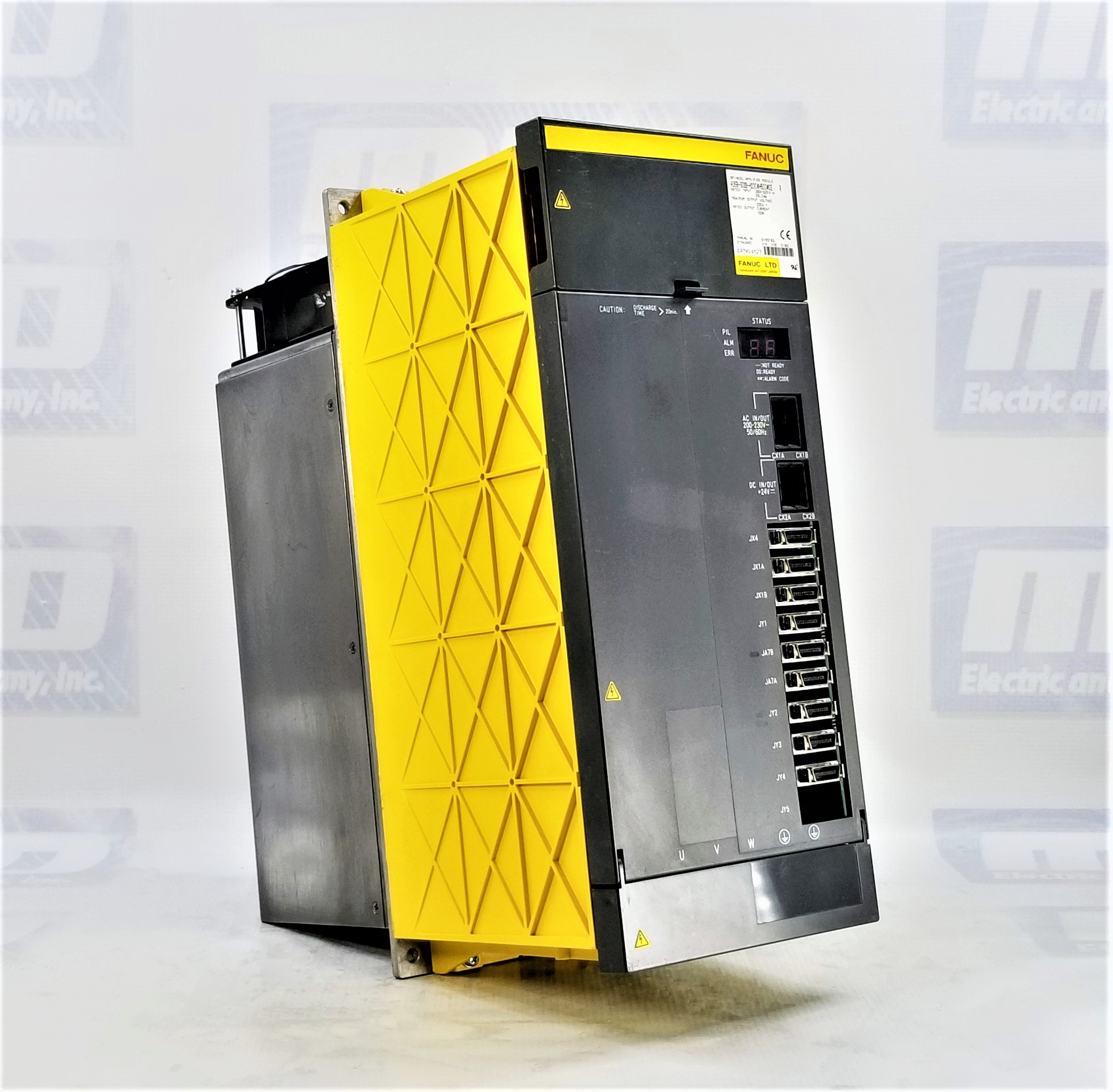

A06B-6088-H230#H500 SPM 30 Spindle Amp

The A06B-6088-H230#H500 is an SPM 30 spindle amp module manufactured by Fanuc. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling. They come with a 2-year warranty from MRO Electric. We also carry Spindle Amplifiers from other manufacturers, such as Siemens and Control Techniques.

Specifications

The Spindle Amp module A06B6088H230#H500 SPM-30 has a Rated Input of 283-325V and a maximum output of 230V, with a Rated Output Current of 133A. Additionally, its manual number is B-65162, and its power output is 35 kW.

The spindle amplifier module should be chosen based on the specific type of motor being used to drive a spindle motor. There are three different types of spindle amplifier modules available, as described below:

• The Spindle amplifier module (SPM) is designed for spindle motors requiring a 200-V input series.
• The Spindle amplifier module (SPMC) is suitable for use with the αC series spindle motor.
• The Spindle amplifier module (SPM-HV) is designed to drive spindle motors that require a 400-V input series.

Series overview

In the FANUC series, there is a variety of basic units and parts available, which include:

1. Power supply module (PSM) (Basic)
2. Power supply module (register discharge type) (PSMR) (Basic)
3. Servo amplifier module (SVM) (Basic)
4. Spindle amplifier module (SPM) (Basic)
5. Spindle amplifier module (SPMC) (Basic)
6. AC reactor (Basic)
7. Connectors (for connection cables) (Basic)
8. Fuses (Basic)

There are also some optional units and parts, including:

1. Power transformer (Optional)
2. Fan adaptor (Optional)

Additionally, there are other basic units and parts available in the FANUC series, such as:

1. AC line filter (Basic)
2. Regenerative discharge unit (Basic)
3. Dynamic brake module (DBM) (Basic)

Manual B-65162 provides detailed instructions in Chapter 3 on combining the power supply module, servo amplifier modules, and spindle amplifier modules. It is important to note that a magnetic contactor, AC reactor, and circuit breakers are always required.

To protect the unit from lightning surge currents, surge absorbers must be connected between lines and between the lines and ground at the power inlet of the power magnetics cabinet. For more information on this topic, please refer to APPENDIX A in manual B-65162.

FAQ for FANUC Spindle Amplifier A06B-6088-H230#H500

Q1: What is the main function of the FANUC A06B-6088-H230#H500 Spindle Amplifier?

The A06B-6088-H230#H500 is a spindle amplifier used in CNC machines to control and drive spindle motors. It regulates the speed and torque of the spindle motor, ensuring smooth and accurate operation during machining processes.

Q2: What is the input voltage and power rating of the A06B-6088-H230#H500?

This spindle amplifier operates with an input voltage range of 283-325 V and has a rated power input of 35 kW.

Q3: What is the maximum output voltage and current of the amplifier?

The amplifier provides a maximum output voltage of 230 V and has a rated output current of 133 A.

Q4: What type of spindle motor is compatible with the A06B-6088-H230#H500?

The A06B-6088-H230#H500 is compatible with FANUC SPM-30 spindle motors. This combination is typically used in precision CNC machines for high-speed spindle operations.

Q5: What is the manual number for this model?

The manual for the A06B-6088-H230#H500 is referenced as Manual No. B-65162. This document contains detailed technical information and setup, operation, and troubleshooting guidelines.

Q6: Does the A06B-6088-H230#H500 have any special features?

Yes, it is designed with advanced control features, allowing it to optimize spindle motor performance and provide higher accuracy and efficiency in CNC machining applications.

Q7: Can this spindle amplifier be used in new and retrofitted CNC systems?

Yes, the A06B-6088-H230#H500 can be integrated into new CNC machine builds and retrofitted into existing systems, making it a versatile choice for machine upgrades and maintenance.

Q8: What are the typical applications of the A06B-6088-H230#H500 Spindle Amplifier?

This spindle amplifier is commonly used in high-precision manufacturing environments, such as automotive, aerospace, and metalworking industries, where precision machining and spindle control are critical.
