A05B-2490-C171

2-year Warranty

Same Day Shipping

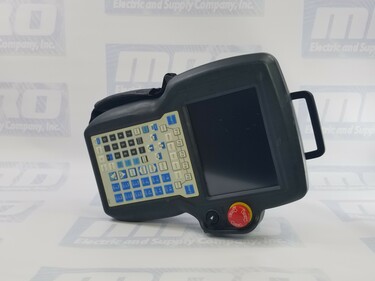

FANUC A05B-2490-C171

TEACH PENDANT MATERIAL HANDLING

5/5
3 ratings

1 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberA05B-2490-C171
ManufacturerFANUC
TypePower Supplies
Model #A05B2490C171
Warranty2 Year
RangeiPendant
CategoryTeach pendant
DestinationMaterial handling
KeypadMultifunctional keys
ApplicationOperating and programming robotic systems
SafetyLive-man switch, E-stop

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed A05B-2490-C171 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this A05B-2490-C171 we also repair a wide range of other FANUC products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty A05B-2490-C171, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 3lbs

Want it shipped today?

  • Order within the next 19 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty A05B-2490-C171 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

FANUC A05B-2490-C171 Overview

Fanuc A05B2490C171 Teach Pendant

The Fanuc A05B2490C171 Teach Pendant is a versatile and advanced control device for industrial robots. It is designed to streamline programming and operational tasks while ensuring user-friendly interaction. Its intuitive layout and robust features empower operators to manage robotic systems with enhanced control, precision, and safety, meeting the demands of complex industrial applications.

Physical Features

The pendant features a multi-functional keypad, where each key can perform various tasks depending on the active screen, serving both command and alphanumeric input purposes. A critical safety element, the live-man switch on the side of the pendant, has three distinct positions. For robot movement to occur, the switch must be in the "Motion Enabled" position; otherwise, it disables motion as a precaution. The pendant also includes an emergency stop (E-stop) button, designed to immediately halt robot operations in emergencies. The E-stop requires a manual reset to restore functionality, ensuring the robot remains inactive until safety is confirmed. A clear display screen allows users to navigate the pendant's menus and settings effectively, and built-in sound feedback enhances the user experience by providing auditory alerts for specific functions.

Functional Keys and Their Uses

The pendant's function keys are context-sensitive, adapting their roles based on the active screen, with the options shown at the bottom. In the Manual Menu, axis keys control robot movement, with varying functionality based on motion settings. The motion keys are also accessible in the Manual Menu, with controls for gripping, homing, readying the robot, and other motion-specific tasks. Additionally, array keys facilitate navigation within variable arrays, allowing users to select specific elements easily. In contrast, data entry keys enable users to input alphanumeric data, such as variable names and values.

Live-Man Switch and E-Stop Functionality

The live-man switch must be set to the "Motion Enabled" position to activate robot motion. Releasing or pressing it too hard triggers the safety mechanism, which stops the robot. The E-stop button, when engaged, immediately cuts off power to the robot's arm and stops its operation. To reactivate the robot, the E-stop button must be manually reset by turning it clockwise, restoring arm power.

Navigating Screens and Passing Control

The teach pendant operates through a structured series of screens that display a range of robot functions navigated through its function keys. Control can be passed from other systems to the teach pendant, typically for training and testing tasks, using specific commands within the system or application shell. This transition allows for precise and safe programming adjustments.

Moving the Robot and Terminating Pendant Control

The pendant facilitates precise robot movement by controlling speed, motion type, and operational mode. To initiate motion, hold the live-man switch in the correct position and use the axis and motion keys. To return control to the primary host computer, users can navigate to the "Terminate Pendant" screen and select the corresponding option, ensuring a smooth and safe control handoff.

The Fanuc A05B2490C171 Teach Pendant is a sophisticated and essential tool for industrial robotics. It provides operators with the control, precision, and safety needed for advanced robotic applications.

FAQs for Fanuc A05B2490C171 Teach Pendant

Q: What is the purpose of the live-man switch?

A: The live-man switch is a critical safety feature with three positions to control robot motion. It must be in the "Motion Enabled" position to allow movement; if released or pressed too hard, the safety mechanism stops the robot, ensuring safe operation at all times.

Q: How does the emergency stop (E-stop) function?

A: The E-stop button instantly halts the robot's movement and cuts power to the robot arm in emergencies. Once activated, it requires a manual reset (turned clockwise) before the robot can resume operation, preventing accidental restart until safety is verified.

Q: How are the function keys used on the teach pendant?

A: The function keys adapt based on the active screen, changing their roles according to the displayed options at the screen's bottom line. This flexibility allows operators to easily access and manage various robot functions.

Q: What steps are involved in moving the robot using the teach pendant?

A: To move the robot, the live-man switch must be set to "Motion Enabled," the operator can then use the axis and motion keys to control movement. The pendant also allows for adjustments to speed, motion type, and operational mode, giving operators precise control.

Q: How is control transferred from the teach pendant to the host computer?

A: Control is returned to the host computer by navigating to the "Terminate Pendant" screen on the teach pendant and selecting the appropriate option. This ensures a safe transition of control from the pendant to the central system.

FANUC products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling usage. They come with a 2-year warranty from MRO Electric. We also carry Power Supplies from other manufacturers such as Siemens and Control Techniques.
