Siemens 6SN1123-1AA00-0LA1

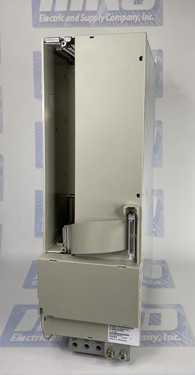

Siemens 6SN1123-1AA00-0LA1 Power Module

The Siemens 6SN1123-1AA00-0LA1 is a power module from the SIMODRIVE 611 series, designed to provide reliable control and management of motor systems in industrial applications. Known for its precision and efficiency, this module offers robust performance and versatile integration with various drive configurations. It is a single-axis power module built to handle heavy-duty operations focusing on precision and efficiency.

Internal Cooling and Protection Features

One of the critical attributes of the Siemens 6SN1123-1AA00-0LA1 is its internal cooling system. This feature allows the module to effectively dissipate heat, thus maintaining optimal operating temperatures and preventing overheating. This internal cooling system eliminates the need for external cooling mechanisms, reducing the module's complexity and overall installation cost. Additionally, the power module is equipped with an IP20 degree of protection, offering adequate resistance to dust and solid objects of a size greater than 12mm.

Electrical Specifications and Power Connection

Regarding electrical specifications, the Siemens 6SN1123-1AA00-0LA1 has a rated motor current of 45 A for single-phase systems and a peak current of 108 A. The power connection for this module is designed to handle cables up to 50 mm², ensuring a secure and reliable electrical connection for high-power applications. The module supports an output voltage of 0 to 430 V AC in a three-phase configuration, making it suitable for applications requiring a wide range of voltage outputs. These specifications indicate that the module can handle substantial power, making it ideal for large-scale or intensive motor applications.

Compact Design and Dimensions

The module's design emphasizes compactness and efficient use of space. With a width of 150 mm, height of 480 mm, and depth of 288 mm, it can be easily integrated into a variety of industrial setups without taking up excessive room. The module’s compact design and high current capacity make it a preferred choice for industries where space is at a premium but performance requirements are high.

Performance and Integration Capabilities

The Siemens 6SN1123-1AA00-0LA1 is part of the SIMODRIVE 611 family, which is well-regarded for its modularity and flexibility. This power module is designed to integrate existing control systems easily, enhancing productivity and simplifying maintenance. Whether used in conjunction with other SIMODRIVE modules or in standalone configurations, it delivers reliable motor control and operational efficiency. The SIMODRIVE 611 series is specifically engineered for demanding industrial environments where performance and durability are essential.

Warranty and Reliability

Additionally, this model comes with a two-year warranty from MRO Electric and Supply, which reflects the company's confidence in its reliability and the quality of service available. This warranty offers users peace of mind, ensuring that any manufacturing defects or issues can be resolved promptly.

FAQs

Q: What type of cooling does the Siemens 6SN1123-1AA00-0LA1 power module use?

A: The Siemens 6SN1123-1AA00-0LA1 power module utilizes an internal cooling system. This built-in cooling mechanism allows for efficient heat dissipation and eliminates the need for external cooling components, reducing installation costs and complexity.

Q: What is the rated motor current capacity of this power module?

A: The Siemens 6SN1123-1AA00-0LA1 power module has a rated motor current capacity of 45 A for single-phase systems, with a peak current of 108 A. This allows it to handle heavy-duty motor operations in industrial settings.

Q: What kind of protection does the module offer against dust and solid objects?

A: The Siemens 6SN1123-1AA00-0LA1 power module has an IP20 degree of protection rating, which provides adequate protection against dust and solid objects larger than 12mm.

Q: What are the dimensions of the Siemens 6SN1123-1AA00-0LA1 power module?

A: This power module measures 150 mm in width, 480 mm in height, and 288 mm in depth. Its compact size facilitates easy integration into various industrial setups without occupying excessive space.

Q: What voltage range does this power module support?

A: The Siemens 6SN1123-1AA00-0LA1 power module supports an output voltage range of 0 to 430 V AC in a three-phase configuration, making it highly versatile for different motor control applications.
