Siemens 6SN1118-0NK01-0AA0

Siemens 6SN11180NK010AA0 Resolver Module

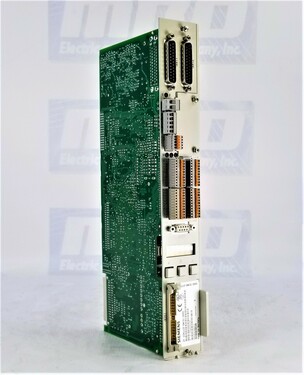

The Siemens 6SN11180NK010AA0 Resolver Module, an integral component of the SIMODRIVE 611 U HR series, offers advanced closed-loop control capabilities for precision industrial applications. Specifically designed as a 2-axes closed-loop control plug-in resolver, this module plays a crucial role in providing accurate position and speed feedback for motors in CNC (Computer Numerical Control) systems.

Key Resolver Specifications:

The resolver, serving as a motor encoder, operates with a pin. It has a flexible configuration with the number of pole pairs equal to 1 or the pole-pair count of the motor, allowing seamless integration with various motor types.

The resolver excitation is a noteworthy feature, as the control unit produces a voltage with 4.3 VRMS at 9.6 kHz. The nominal input voltage of the controller is sin/cos 2.0 VRMS, and the transmission coefficient of the resolver is approximately 0.46 at 9.6 kHz, often described with a 1:2 transformation ratio in datasheets.

The maximum excitation current is 28 mARMS, corresponding to the minimum magnitude of 154 Ω of the complex input impedance of the resolver. This ensures stable and reliable resolver operation under varying conditions.

Modules Included in the Scope of Supply:

The SIMODRIVE 611 U HR series offers various configurations, making it adaptable to different control requirements. The included modules range from high-performance 2-axis or 1-axis control units to high-standard 2-axis control units, with options for direct measuring systems. Additional variants include HLA/ANA for highly dynamic hydraulic axes or universal dynamic analog interfaces.

Motor Encoder Options:

The motors equipped with the Siemens 6SN11180NK010AA0 Resolver Module support various encoder systems for sensing rotor position and speed. The recommended encoder signals for fault-free operation include track signals A+, A–, B+, B–, C+, C–, D+, and D–.

Depending on requirements, different encoder types are utilized, such as sin/cos 1 Vpp or EnDat encoders, SSI encoders (specific to certain SIMODRIVE 611 variants), resolvers (exclusive to SIMODRIVE 611 universal), and TTL encoders (compatible with SIMODRIVE 611 universal and induction motors).

In conclusion, the Siemens 6SN11180NK010AA0 Resolver Module is a versatile and high-performance component within the SIMODRIVE 611 U HR series, providing precision control for industrial applications. Its flexible resolver configuration, comprehensive module options, and support for various encoder systems make it a reliable choice for demanding CNC systems and other motion control applications.

FAQs about Siemens 6SN11180NK010AA0 Resolver Module:

What is the primary function of the Siemens 6SN11180NK010AA0 Resolver Module?

The Resolver Module serves as a closed-loop control plug-in resolver designed for precise position and speed feedback in industrial applications, particularly in CNC systems.

What is the resolver excitation voltage produced by the control unit, and at what frequency?

The control unit produces a resolver excitation voltage of 4.3 VRMS at 9.6 kHz, providing a stable and reliable signal for resolver operation.

Can the Resolver Module be used with different motor types?

Yes, the Resolver Module is designed to be flexible, with the number of pole pairs configurable to 1 or equal to the pole-pair count of the motor, allowing compatibility with various motor types.

What are the included modules in the scope of supply, and how do they differ?

The scope of supply includes High Performance and High Standard 2-axis or 1-axis control units, options for direct measuring systems, and configurations like HLA/ANA for highly dynamic hydraulic axes or universal dynamic analog interfaces. The documentation provides a detailed comparison table for better understanding.

What encoder options are supported by motors equipped with the Resolver Module?

Motors can be equipped with sin/cos 1 Vpp or EnDat encoders, SSI encoders (specific to certain SIMODRIVE 611 variants), resolvers (exclusive to SIMODRIVE 611 universal), and TTL encoders (compatible with SIMODRIVE 611 universal and induction motors). Induction motors can also operate without encoders.

What is the recommended cable length for encoder signals, and are there any limitations?

The maximum cable length for encoder signals with voltage signals is 50 meters, with specific limitations for higher frequencies (420 kHz). The documentation provides details on cable types and encoder characteristics for optimal performance.

Can the Siemens 6SN11180NK010AA0 Resolver Module be used with SINUMERIK 840D CNC control systems?

Yes, the module can be integrated into a digital closed-loop control system when operating in conjunction with the SINUMERIK 840D CNC control system, enhancing its versatility in different industrial setups.
