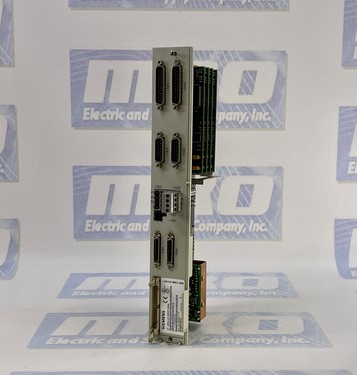

Siemens 6SN1118-0DM23-0AA0

Siemens 6SN11180DM230AA0 in SIMODRIVE 611-D Series

Introduction:

The Siemens 6SN11180DM230AA0, a key component of the SIMODRIVE 611-D series, signifies a paradigm shift in precision control technology. As a closed-loop control unit designed for 2-axis operation, this module is engineered to meet the demanding requirements of industrial applications, offering advanced features and compatibility with a range of motors.

Key Features:

Control Unit for Closed-Loop Operation:

The 6SN11180DM230AA0 is a closed-loop control unit, ensuring precise and accurate control over industrial processes. Closed-loop systems provide feedback mechanisms, enhancing control performance and overall system stability.

2-Axis Operation:

Tailored for 2-axis operation, the module caters to applications where simultaneous control over two axes is essential. This capability is crucial in scenarios where coordinated movements or processes are required.

Measuring System - Direct SPG-S:

The module incorporates a direct SPG-S measuring system, adding a layer of accuracy to the control process. This measuring system aids in real-time feedback, contributing to the precision and reliability of the control unit.

FDD (Feed Drive Direct) for Max. 2 Axes:

The module supports FDD for a maximum of 2 axes, allowing for efficient and synchronized control over the connected motors. This feature enhances the adaptability of the module to diverse industrial setups.

MSD (Machine Spindle Drive) for 1 Axis:

Additionally, the module accommodates MSD for one axis, expanding its versatility and making it suitable for applications with varying control requirements.

Compatible Software Version 6.4.9:

The 6SN11180DM230AA0 is compatible with software version 6.4.9, ensuring seamless integration with the latest advancements in control software. This compatibility enhances the module's performance and provides access to new features and improvements.

Closed-Loop Control with Digital Setpoint Interface:

The module offers closed-loop control with a digital setpoint interface, ensuring precise control over motors, including 1FT6, 1FK, 1FN1, 1FN3, 1FE1, 1PH, 1 PM, and 1FM6/2SP1. The digital control units are available in 1-axis and 2-axis versions, with the High-Performance variant supporting either FD or MSD control.

High-Performance Variants:

Order No.: 6SN1118–0DJ2–0AA:

The High-Performance control unit is available in a basic version with sinusoidal voltage signals and the capability to connect absolute encoders with EnDat interfaces. It supports the evaluation of direct position measuring systems and is versatile for various industrial applications.

Frequently Asked Questions

1. What is the primary function of the Siemens 6SN11180DM230AA0 control unit?

• The 6SN11180DM230AA0 is a closed-loop control unit designed for 2-axis operation, providing precise and accurate control over industrial processes.

2. What measuring system does the control unit incorporate, and how does it contribute to precision control?

• The control unit incorporates a direct SPG-S measuring system, which adds accuracy to the control process by providing real-time feedback for enhanced precision and reliability.

3. How many axes does the module support for FDD (Feed Drive Direct), and what is the maximum for MSD (Machine Spindle Drive)?

• The module supports FDD for a maximum of 2 axes, while MSD is accommodated for one axis, allowing for efficient control over connected motors.

4. What software version is the 6SN11180DM230AA0 compatible with, and why is software compatibility important?

• The module is compatible with software version 6.4.9, ensuring seamless integration with the latest advancements in control software. Compatibility is crucial for accessing new features and improvements.

5. Can the control unit handle different types of motors, and if so, which ones?

• Yes, the control unit is designed to operate motors such as 1FT6, 1FK, 1FN1, 1FN3, 1FE1, 1PH, 1 PM, and 1FM6/2SP1, showcasing its versatility in accommodating various motor types.

6. What is the significance of closed-loop control in industrial applications?

• Closed-loop control provides a feedback mechanism, enhancing control performance and system stability in industrial applications. It ensures precise and accurate control over processes.

7. What are the key features of the High-Performance variant?

• The High-Performance variant supports either FD or MSD control and features a basic version with sinusoidal voltage signals. It also allows the connection of absolute encoders with EnDat interfaces, supporting the evaluation of direct position measuring systems.

8. What additional features does the High-Performance variant offer?

• The High-Performance variant includes the evaluation of two direct measuring systems and the capability to connect absolute encoders with EnDat and SSI interfaces, providing enhanced controller performance.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.
