Part Number | 6SL3224-0BE23-0AA0 |
Manufacturer | Siemens |
Type | AC Drives |
Model # | 6SL32240BE230AA0 |
Warranty | 2 Year |
Low Overload (LO) | |
Number of phases | 3 AC |
Line voltage | 380 ... 480 V ±10 % |
Line frequency | 47 ... 63 Hz |
Rated current with line reactor | 8.00 A |
Rated current without line reactor | 10.20 A |
Output | |
Number of phases | 3 AC |
Rated voltage | 400 V |
Rated power (LO) | 3.00 kW / 4.00 hp |
Rated power (HO) | 3.00 kW / 4.00 hp |
Rated current (LO) | 7.70 A |
Rated current (HO) | 7.70 A |
Max. output current | 15.40 A |
Pulse frequency | 4 kHz |
Output frequency for vector control | 0 ... 200 Hz |
Output frequency for V/f control | 0 ... 550 Hz |
Overload capability |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3224-0BE23-0AA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3224-0BE23-0AA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3224-0BE23-0AA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6SL3224-0BE23-0AA0 for credit when ordering from MRO Electric
Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

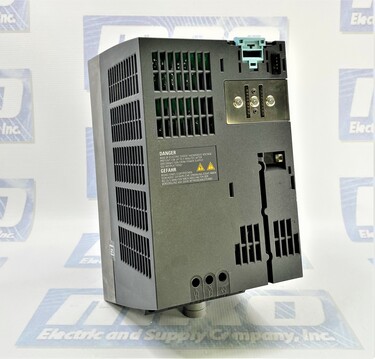

The Siemens 6SL3224-0BE23-0AA0 AC Drive stands as an example of advanced technology for motor control applications. Manufactured by Siemens, a renowned name in industrial automation, this drive reflects precision engineering and innovative features that cater to a diverse range of industrial needs.
Operating seamlessly across three alternating current (AC) phases, the 6SL3224-0BE23-0AA0 AC Drive demonstrates its adaptability in different power configurations. Its versatility is further evident in its compatibility with line voltages ranging from 380 to 480 volts, with a tight tolerance of ±10%. This adaptability to varying line voltages ensures that the drive can be effectively employed across a wide spectrum of industrial applications.
With a line frequency spanning from 47 to 63 Hz, this AC Drive is equipped to handle different line power characteristics, allowing it to be deployed in a variety of power supply environments.
The rated current of the 6SL3224-0BE23-0AA0 AC Drive offers flexibility based on the presence of a line reactor. With a line reactor, the drive maintains a rated current of 8.00 A, while without it, the rated current increases to 10.20 A. This distinction highlights the drive's capability to adapt to varying power conditions and deliver optimal performance.
For output specifications, the drive features three AC phases with a rated voltage of 400 V, making it suitable for a broad range of motor configurations. Its rated power stands at 3.00 kW or 4.00 hp, both for Low Overload (LO) and High Overload (HO) settings. This uniform power rating underlines the drive's consistent performance across different operational modes.
In terms of current output, the drive sustains a rated current of 7.70 A for both LO and HO modes, ensuring stability and precision in motor control. Its maximum output current reaches an impressive 15.40 A, showcasing its capacity to handle peak loads with ease. The drive operates with a pulse frequency of 4 kHz, further refining its control accuracy and responsiveness.
For vector control, the drive provides an output frequency range of 0 to 200 Hz, while for V/f (Voltage to Frequency) control, it accommodates frequencies ranging from 0 to 550 Hz. This expansive frequency range makes the 6SL3224-0BE23-0AA0 AC Drive suitable for a wide range of applications that demand precise speed and torque control.
With a set of specifications that highlight its adaptability, precision, and power, this drive stands as a testament to Siemens' commitment to providing cutting-edge solutions that cater to a broad spectrum of industrial needs. Whether for low or high overload situations, the 6SL3224-0BE23-0AA0 AC Drive delivers a seamless blend of reliability and performance, making it a valuable asset in modern industrial automation.
Boasting a comprehensive warranty of 2 years, the 6SL3224-0BE23-0AA0 AC Drive assures users of its durability and consistent performance, underlining quality and reliability. As an integral part of Siemens' AC Drive lineup, this model showcases its capabilities in delivering high-performance motor control across various scenarios.
In conclusion, the Siemens 6SL3224-0BE23-0AA0 AC Drive, identified by its part number 6SL3224-0BE23-0AA0, emerges as an advanced and adaptable solution for motor control across diverse industrial scenarios.
Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6SL3224-0BE23-0AA0, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6SL3224-0BE23-0AA0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
