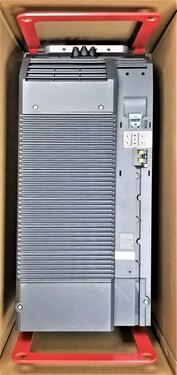

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER W/BUILT IN BRAKING
| Part Number | 6SL3210-1PE32-5UL0 |
| Manufacturer | Siemens |
| Type | AC Drives |
| Model # | 6SL32101PE325UL0 |
| Warranty | 2 Year |
| Range | SINAMICS |
| Category | Power module |
| Power unit | PM240-2 |
| Input phase | 3 AC |
| Line voltage | 380 ... 480 V ±10 % |
| Line frequency | 47 ... 63 Hz |
| Power factor λ | 0.95 |
| Power loss | 2.81 kW |
| Sound pressure level (1m) | 68 dB |
| Rated current (LO) | 242.00 A |
| Rated current (HO) | 218.00 A |
| Cooling | Internal air cooling |
| Cooling air requirement | 0.153 m³/s (5.403 ft³/s) |
| Installation altitude | 3280.84 ft |
| Pulse frequency | 2 kHz |
| Max. output current | 410.00 A |
| Degree of protection | IP20 / UL open type |
| Width | 12.01 in |
| Height | 27.87 in |
| Depth | 14.06 in |
| Efficiency class | IE2 |
| Compliance with standards | UL, cUL, CE, C-Tick (RCM), SEMI F47 |
| CE marking | Low-voltage directive 2006/95/EC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3210-1PE32-5UL0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3210-1PE32-5UL0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3210-1PE32-5UL0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6SL3210-1PE32-5UL0 for credit when ordering from MRO Electric
The Siemens 6SL3210-1PE32-5UL0, a key component of the SINAMICS Power Module PM240-2, stands as a powerhouse in the realm of drive technology. Designed for optimal performance, this module boasts impressive specifications that cater to the diverse needs of industrial applications, ensuring power, efficiency, and precision.
The module commands a formidable rated power of 110.00 kW, equivalent to 150.00 hp, making it suitable for high-power applications.
Operating at 400 V and supporting a line voltage range of 380 to 480 V with a frequency range of 47 to 63 Hz, it provides versatility for various industrial settings.
The module exhibits exceptional overload capabilities, allowing for a 1.5× output current rating (150% overload) for 57 seconds and a 2× output current rating (200% overload) for 3 seconds. This capability ensures adaptability to dynamic and demanding operational scenarios.
With an efficiency rating of 0.98, the module emphasizes energy efficiency, contributing to reduced operational costs and environmental impact.
Internal air cooling and a cooling air requirement of 0.153 m³/s (5.403 ft³/s) maintain optimal operating temperatures, ensuring reliability even in challenging conditions.
Operating within a wide temperature range of -40 to 70 °C (-40 to 158 °F) during both operation and storage, the module showcases adaptability to extreme environmental conditions.
The installation altitude of up to 1000 m (3280.84 ft) expands its usability across diverse industrial landscapes.
The module supports an impressive output frequency range for V/f control (0 to 200 Hz) and vector control (0 to 550 Hz), ensuring precise control over various motor types and applications.
The three-phase operation, a power factor (λ) of 0.95, and a sound pressure level of 68 dB contribute to the module's reliability, efficiency, and user-friendly operation.
The Siemens 6SL3210-1PE32-5UL0 is tailored for applications demanding high power, precision, and adaptability. It finds utility in industries such as manufacturing, energy, and automation, where reliable and efficient drive technology is paramount.
What is the primary application of the Siemens 6SL3210-1PE32-5UL0 module?
The module is designed for high-power industrial applications, providing precision control and adaptability in diverse settings.
What is the rated power and voltage of the module, and how does it contribute to its versatility?
The module boasts a rated power of 110.00 kW at 400 V, making it suitable for high-power applications. The voltage range of 380 to 480 V enhances its versatility for various industrial environments.
How does the module handle overload situations, and what are its capabilities in this regard?
The module exhibits impressive overload capabilities, supporting a 1.5× output current rating (150% overload) for 57 seconds and a 2× output current rating (200% overload) for 3 seconds. This ensures adaptability to dynamic operational scenarios.
What is the efficiency rating of the Siemens 6SL3210-1PE32-5UL0, and why is it important?
The module has an efficiency rating of 0.98, emphasizing energy efficiency. This contributes to reduced operational costs and environmental impact, making it a sustainable choice.
What cooling mechanism does the module use, and what is its cooling air requirement?
The module employs internal air cooling with a cooling air requirement of 0.153 m³/s (5.403 ft³/s), ensuring optimal operating temperatures and reliability.
What is the frequency range supported by the module for V/f control and vector control?
The module supports an impressive output frequency range for V/f control (0 to 200 Hz) and vector control (0 to 550 Hz), allowing precise control over various motor types and applications.
In what ambient conditions can the Siemens 6SL3210-1PE32-5UL0 operate, and what is its storage temperature range?
The module operates in a wide temperature range of -40 to 70 °C (-40 to 158 °F) and has a storage temperature range of -40 to 70 °C (-40 to 158 °F), showcasing adaptability to extreme environmental conditions.
What is the installation altitude capability of the module, and how does it contribute to its versatility?
The module can be installed at altitudes up to 1000 m (3280.84 ft), expanding its usability across diverse industrial landscapes and applications.
Can the Siemens 6SL3210-1PE32-5UL0 be used in the three-phase operation, and what is its power factor?
Yes, the module supports three-phase operation, and it has a power factor (λ) of 0.95, ensuring reliable and efficient operation.
Where can users obtain technical support or additional information about the 6SL3210-1PE32-5UL0 module?
Users can obtain technical support and additional information about the module from Siemens' official documentation, customer support channels, and authorized distributors. Reference manuals and documentation provide in-depth insights into the capabilities and features of the module.
