Siemens 6SL3210-1PE22-7UL0

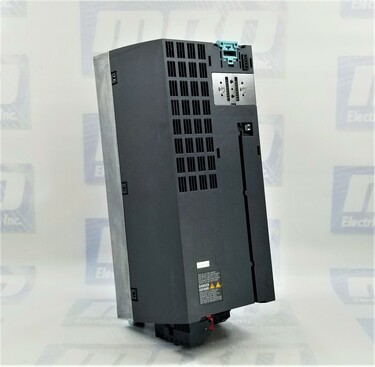

The SIEMENS 6SL3210-1PE22-7UL0

An In-Depth Look at the SINAMICS Power Module PM240-2

SIEMENS, a global leader in automation technology, understands the need for precision and efficiency. The 6SL3210-1PE22-7UL0 is a remarkable SINAMICS Power Module PM240-2 designed for high-performance motor control applications. This unit offers a range of features that make it an invaluable component in various industrial setups.

Product Description

The 6SL3210-1PE22-7UL0 is a power module that belongs to the SINAMICS product family by SIEMENS. This specific model is a PM240-2 variant, and it comes without a built-in filter but includes a crucial feature: a built-in braking chopper. This combination of features makes it a versatile and efficient solution for motor control in a variety of industrial applications.

Key Features and Specifications

1. Voltage Range: The power module is designed to operate within a wide voltage range of 3AC 380-480V with a permissible variation of ±10%. This flexibility allows it to adapt to different power systems, ensuring compatibility in various industrial settings.
2. Frequency Range: The module can work effectively with input frequencies ranging from 47Hz to 63Hz. This versatility accommodates variations in power frequency that may occur in industrial environments.
3. Output High Overload: One of the standout features of the 6SL3210-1PE22-7UL0 is its high overload capacity. It can deliver an impressive 5kW of power for a brief period of 3 seconds at 200% overload. For slightly longer durations, it can sustain a 150% overload for 57 seconds and operate continuously at 100% power for 240 seconds. This high overload capacity makes it suitable for applications where motor startups or brief bursts of high power are required.
4. Ambient Temperature Range: The module is designed to function reliably within an ambient temperature range of -10°C to +50°C. This temperature tolerance ensures that it can perform optimally in a variety of industrial environments, even in conditions with temperature extremes.
5. Output Low Overload: In addition to its high overload capacity, the 6SL3210-1PE22-7UL0 offers impressive low overload capabilities. It can provide 11kW of power for 150% overload for 3 seconds, sustain a 110% overload for 57 seconds, and operate continuously at 100% power for 240 seconds.

Applications

The 6SL3210-1PE22-7UL0 is a versatile power module suitable for a wide range of industrial applications. Some notable applications include:

1. Motor Control: This power module is primarily designed for motor control applications. It can be used to control the speed, torque, and direction of industrial motors, making it indispensable in manufacturing, conveyor systems, and material handling.
2. Machine Tools: In the realm of machine tools, precision and control are vital. The module's high overload capacity and adaptability make it an ideal choice for controlling machine tools such as CNC machines and lathes.
3. Conveyor Systems: Conveyor systems often require variable speed control to optimize material handling. The 6SL3210-1PE22-7UL0 can provide the necessary power and control for these systems, enhancing efficiency in logistics and manufacturing.
4. Pumps and Fans: In applications where pumps and fans are utilized, this power module can efficiently manage motor performance, ensuring optimal operation while maintaining energy efficiency.
5. Automation: As part of the SINAMICS product family, the 6SL3210-1PE22-7UL0 can seamlessly integrate into automation systems, enabling precise and reliable control in various industrial automation applications.

In conclusion, the SIEMENS 6SL3210-1PE22-7UL0 is a powerful and versatile power module designed to meet the demanding requirements of modern industrial applications. Its high overload capacity, wide voltage and frequency range, temperature tolerance, and compatibility with various motor control applications make it an invaluable asset in the world of industrial automation and motor control. SIEMENS' commitment to innovation and quality is evident in this product, as it empowers industries to achieve greater efficiency, reliability, and operations control.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.
