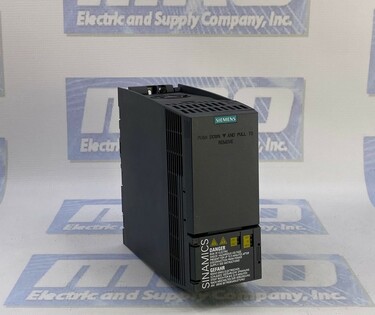

Siemens 6SL3210-1KE12-3AF2

The 6SL32101KE123AF2 is an AC drive manufactured by Siemens. It is a versatile device designed for controlling three-phase motors in various industrial and commercial applications. With its advanced features and robust construction, this drive offers reliable and efficient motor control. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Operation

The drive operates on a three-phase AC power supply with a line voltage ranging from 380 to 480 volts and a line frequency between 47 and 63 Hz. It is equipped with multiple input and output options to facilitate seamless integration into electrical installations or machines.

Rating

With a rated power of 0.75 kW in the low overload range and 0.55 kW in the high overload range, this drive provides sufficient power to drive motors in a wide range of applications. It supports a maximum output current of 3.40 A and offers an output frequency range of 0 to 550 Hz for V/f control and 0 to 240 Hz for vector control.

Features

The drive features a compact and robust design, making it suitable for installation in various industrial environments. It is equipped with a 24 V power supply, which can be generated from the line voltage or obtained externally via dedicated terminals. The 24 V power supply ensures the reliable operation of the drive's control circuitry.

Installation

For ease of installation and connectivity, the drive includes sets of connectors for input and output connections, as well as a connector for Fieldbus communication in models equipped with USS or Modbus RTU. It also features digital inputs, analog inputs, digital outputs, relay outputs, and analog outputs, allowing for flexible control and integration with external devices.

Safety

Safety is a key consideration, and the drive is equipped with safety inputs for implementing safety functions such as Safe Torque Off (STO). These inputs, along with other safety features, contribute to the safe and reliable operation of the drive system.

The 6SL32101KE123AF2 comes with a 2-year warranty, providing peace of mind to the users regarding its quality and reliability. It is designed to meet industrial standards and has been approved for use on industrial networks. However, additional measures may be required when connecting it to public grids.

Overall, the 6SL32101KE123AF2 is a high-quality AC drive that combines advanced motor control capabilities, robust construction, and safety features. It is a reliable choice for controlling three-phase motors in a wide range of industrial and commercial applications.
