Siemens 6SL3120-2TE15-0AA3

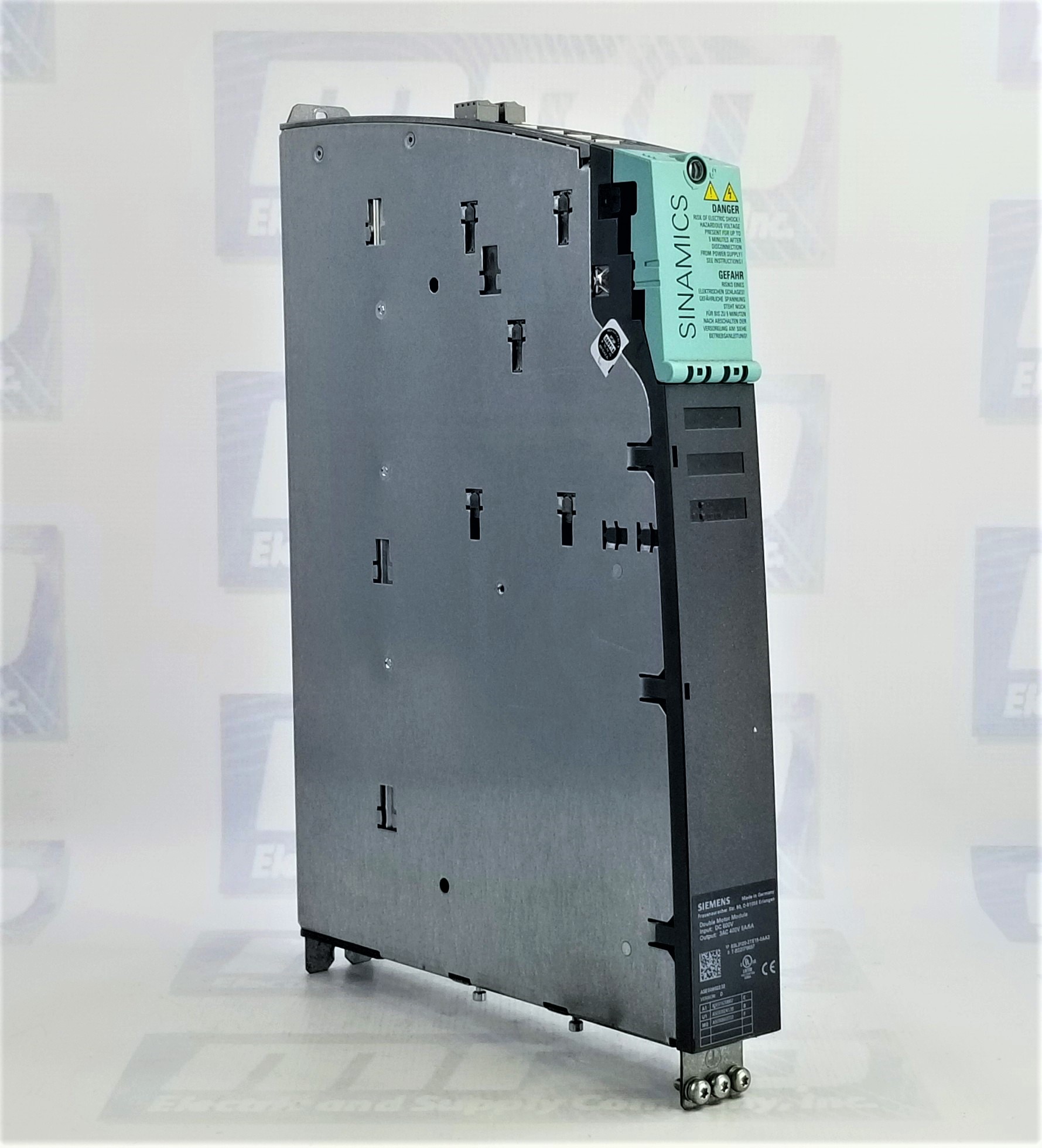

Siemens 6SL3120-2TE15-0AA3 AC Drive: A Comprehensive Overview

The Siemens 6SL3120-2TE15-0AA3 is a highly efficient and reliable AC drive for motor control applications. Part of the renowned Siemens SINAMICS S120 series, this AC drive offers excellent performance, scalability, and flexibility, making it ideal for various industrial uses. With its compact design, robust protection, and advanced features, the 6SL3120-2TE15-0AA3 is well-suited for high-performance motor axis control.

Motor Axis Control and High Frequency

The 6SL3120-2TE15-0AA3 is designated as a Motor Axis AC drive, a critical component for controlling the speed, torque, and position of motor axes in industrial applications. With a frequency of 4 kHz, the drive ensures smooth and precise motor control, even under dynamic operating conditions. The high-frequency capabilities enable this drive to handle demanding tasks with superior responsiveness and minimal power loss, enhancing overall productivity in motor-driven systems.

Efficient Power Management

Designed to deliver optimal power performance, the Siemens 6SL3120-2TE15-0AA3 operates with a 600 V DC-rated input and a 400 V, 3-phase AC-rated output. This efficient power management ensures that the drive can handle motors requiring stable, high-output power, allowing for seamless operation across various industrial environments. The drive can provide the necessary power for continuous and uninterrupted motor performance, whether used in manufacturing plants, automated assembly lines, or energy-intensive industries.

Robust Protection and Durability

One of the standout features of the 6SL3120-2TE15-0AA3 is its robust protection rating of IP20. This rating ensures protection against solid objects larger than 12mm, such as fingers and tools, making it ideal for installation in controlled environments such as electrical panels or machine rooms. Additionally, the drive is designed with internal air cooling, which prevents overheating and extends its operational life. The combination of its protection features and cooling system ensures the drive's reliability and durability in demanding conditions.

Compact and Space-Saving Construction

The Siemens 6SL3120-2TE15-0AA3 is built in a Booksize form factor, which is ideal for installations where space is limited. The compact design features a height of 15 inches, a width of 1.97 inches, and a depth of 10.6 inches, making it easy to fit into tight spaces while maintaining optimal performance. This space-saving design is especially useful for industries that require compact and efficient electrical setups without compromising on functionality or safety.

Cooling Mechanism

The Siemens 6SL3120-2TE15-0AA3 uses an internal air cooling system to ensure reliable performance. This advanced cooling mechanism allows continuous operation by regulating the drive’s internal temperature and preventing it from overheating during extended use. The internal cooling system also contributes to the drive's long-term durability and efficiency, ensuring it operates within safe temperature ranges.

Additional Benefits: Warranty and Free Shipping

When purchasing the Siemens 6SL3120-2TE15-0AA3 from MRO Electric and Supply, customers benefit from a 2-year warranty. The product also comes with free shipping, providing added value and convenience. This ensures that the AC drive arrives promptly and is ready for installation without any extra costs.

FAQ for Siemens 6SL3120-2TE15-0AA3 AC Drive

1. What is the primary use of the Siemens 6SL3120-2TE15-0AA3 AC Drive?

The Siemens 6SL3120-2TE15-0AA3 is designed for motor axis control applications. It offers precise control over motor speed, torque, and position, making it ideal for high-performance industrial use in various automation and motion control systems.

2. What input and output power does the drive support?

This AC drive operates with a 600 V DC-rated input and delivers a 400 V, 3-phase AC-rated output. This ensures efficient power conversion, necessary for running demanding industrial motors.

3. What frequency does the Siemens 6SL3120-2TE15-0AA3 support?

The drive operates at 4 kHz, providing fast and smooth motor response in dynamic industrial environments.

4. What protection rating does this AC drive have?

The Siemens 6SL3120-2TE15-0AA3 has an IP20 protection rating, which protects it from solid objects larger than 12mm, such as tools and fingers. It is suited for installation in controlled environments like electrical cabinets or enclosures.

5. How does the cooling system work?

The drive is equipped with internal air cooling, ensuring that it maintains an optimal operating temperature even during extended periods of use. This feature helps prevent overheating, contributing to its long-term durability.

6. What are the dimensions of the Siemens 6SL3120-2TE15-0AA3 AC drive?

The drive has a Booksize construction with dimensions:

• Height: 15 inches
• Width: 1.97 inches
• Depth: 10.6 inches
• This compact design allows for easy installation in space-constrained environments.

7. Can I use the Siemens 6SL3120-2TE15-0AA3 in harsh industrial conditions?

The drive’s IP20 protection rating is designed for controlled environments but is not recommended for exposure to harsh elements like water or dust. Additional enclosures may be needed for better protection in rugged environments.

8. What kind of warranty does MRO Electric and Supply offer for this product?

When purchased from MRO Electric and Supply, the Siemens 6SL3120-2TE15-0AA3 has a 2-year warranty.

9. How is the Siemens 6SL3120-2TE15-0AA3 shipped?

MRO Electric and Supply offers free shipping for this product, ensuring fast and cost-effective delivery to your location.

10. What cooling method does this drive employ?

The Siemens 6SL3120-2TE15-0AA3 uses internal air cooling, which prevents the unit from overheating, even under heavy workloads, ensuring consistent performance.
