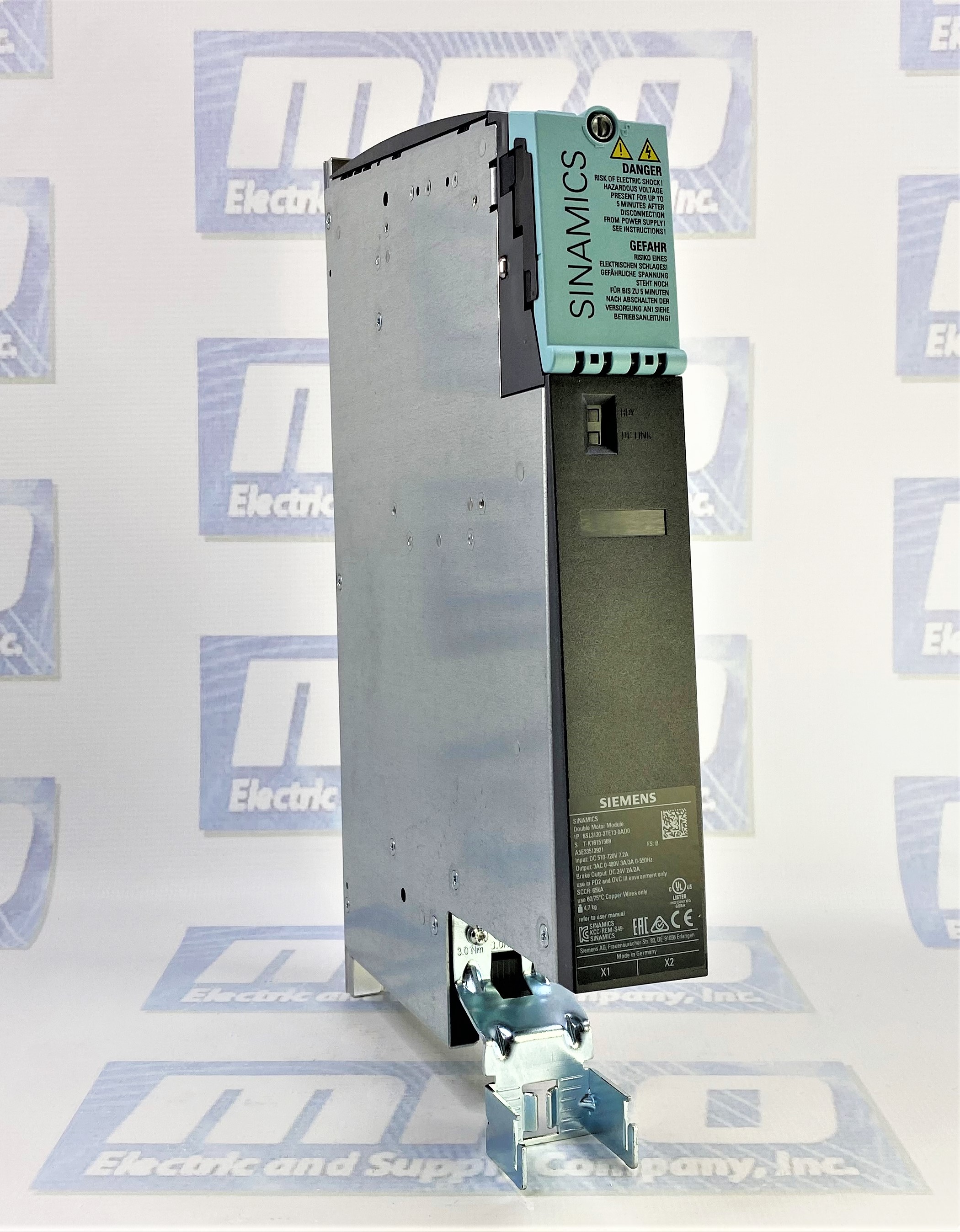

Siemens 6SL3120-2TE13-0AD0

Siemens 6SL3120-2TE13-0AD0 SINAMICS Double Motor Module Overview:

Product Specs:

1. Module Type: Double Motor Module for SINAMICS S120 drives.
2. Rated Power: Typically specified in the technical documentation. This denotes the maximum power the module can handle.
3. Input Voltage Range: This module usually operates on a specific voltage range, commonly around 600V.
4. Cooling Method: Most SINAMICS S120 modules are cooled by a forced ventilation system.
5. Communication: Integration with the Drive-CLiQ system.
6. Safety Features: Integrated safety functions to ensure motor operation is safe and efficient.
7. Construction: Compact design suitable for booksize format.

Guide and Installation:

1. Placement: Identify a location within your control cabinet that's free from excessive dust, and moisture, and ensures proper ventilation.
2. Mounting: Mount the module securely within the cabinet, ensuring there's adequate space for ventilation and additional modules if needed.
3. Wiring:

• Connect the power supply as indicated in the module's technical documentation, ensuring correct voltage and polarity.
• Set up communication connections, such as Drive-CLiQ, based on your system's requirements.
• Ensure motor connections are correct and secure.

1. Configuration: Use Siemens' associated software tools, like the SINAMICS Startdrive or the TIA Portal, to configure the module, set parameters, and integrate it into your automation system.
2. Safety Precautions: Always ensure that the power is turned off before working on the module. Ensure grounding connections are in place to prevent electrical interference and ensure safe operation.
3. Testing: After installation and configuration, power up the system. Check for proper operation and ensure there are no fault indicators.

Overview:

The Siemens 6SL3120-2TE13-0AD0 is a Double Motor Module belonging to the SINAMICS S120 series. It is designed to provide robust and precise drive control for two motors simultaneously. With its advanced safety features, seamless integration capabilities, and efficient operation, it is aptly built for diverse industrial applications requiring reliable drive solutions.

Benefits and Unique Features:

1. Dual Drive Control: One of the standout features of the 6SL3120-2TE13-0AD0 is its ability to manage and control two motors simultaneously, optimizing space in control cabinets and reducing equipment costs.
2. Energy Saving: SINAMICS modules are known for their energy-efficient features. This specific model, with its advanced control mechanisms, can significantly reduce energy consumption during operations.
3. Flexibility: Its compatibility with Siemens' broad range of software tools and other SINAMICS modules makes it suitable for a wide variety of industrial applications.
4. Diagnostics: Integrated diagnostics ensure easy troubleshooting and reduce downtimes. This feature is especially valuable for industries where every minute counts.
5. Scalability: The SINAMICS S120 series is built for scalability, allowing easy expansion and integration of additional modules or drives as the system needs to grow.

Applications:

The 6SL3120-2TE13-0AD0 module is versatile and finds its application in various sectors, such as:

1. Manufacturing: Where precise motor control is needed for tasks like drilling, milling, or cutting.
2. Automation: In automated conveyor systems, sorting systems, and robotics.
3. Energy: In systems requiring motor controls like wind turbines or other renewable energy machinery.

Conclusion:

Siemens' commitment to advancing the world of industrial automation is evident in products like the 6SL3120-2TE13-0AD0. For industries aiming for accuracy, reliability, and efficiency, this Double Motor Module from the SINAMICS S120 series proves to be a valuable asset. Its integration capabilities, advanced safety features, and energy efficiency make it a top choice for many professionals in the automation industry.
