Siemens 6SL3120-1TE23-0AD0

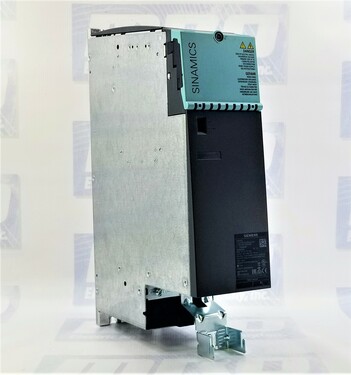

Siemens 6SL3120-1TE23-0AD0 AC Drive

The Siemens 6SL3120-1TE23-0AD0 is a versatile AC drive that provides reliable and efficient motor control for various industrial applications. As part of Siemens' renowned SINAMICS series, this model offers high performance and advanced features in a compact, booksize construction. Its robust design and compliance with international standards make it ideal for use in demanding environments requiring precise motor control, energy efficiency, and safety.

Key Features and Performance

The Siemens 6SL3120-1TE23-0AD0 AC drive is rated for a power output of 16 kW, making it suitable for a wide range of industrial applications, from simple machine tasks to complex manufacturing processes. The drive operates with a rated voltage of DC 510 to 720 V and a power supply of DC 24 V with a tolerance range of -15% to +20%. This flexibility allows the drive to adapt to varying input conditions, ensuring stable and reliable performance.

This AC drive delivers powerful and consistent motor control with a maximum current demand of 0.80 A and an output current of 25.5 A. The rated pulse frequency of 4.00 kHz contributes to smooth and efficient operation, minimizing electrical noise and maximizing motor performance. The drive's internal air cooling system helps maintain optimal operating temperatures, enhancing its longevity and reliability even in demanding conditions.

Compact Construction and Dimensions

Designed with a compact, booksize construction, the Siemens 6SL3120-1TE23-0AD0 AC drive is easy to integrate into existing control cabinets or systems. Its dimensions, with a height of 14.96 inches, width of 3.94 inches, and depth of 10.63 inches, make it ideal for limited space applications. The drive also features a PE connection with an M5 screw, providing secure and reliable grounding. It also supports shielded and unshielded cables, with a maximum length of 328 feet for shielded and 492 feet for unshielded cables, allowing installation flexibility.

Advanced Safety and Compliance

Safety is a paramount concern in industrial environments, and the Siemens 6SL3120-1TE23-0AD0 AC drive is equipped with advanced safety features to ensure secure operation. It includes integrated safety functions that comply with SIL 2 according to IEC 61508, Performance Level (PL) d according to EN ISO 13849-1, and Category 3 according to EN ISO 13849-1 standards. These safety certifications indicate the driver's ability to maintain safe operation, even in the event of a fault, protecting personnel and equipment.

The drive also complies with CE and cULus standards, demonstrating its adherence to international safety, quality, and performance requirements. Its IP20 (UL open type) protection rating ensures adequate protection against dust and contact with internal components, and it is suitable for use in a controlled industrial environment.

Energy Efficiency and Environmental Adaptability

The Siemens 6SL3120-1TE23-0AD0 AC drive is designed for energy efficiency, with a DC link capacitance of 705 µF that helps stabilize voltage levels and reduce energy consumption. Based on internal air cooling, the drive's cooling system maintains optimal temperatures within the operating range of 32 to 104°F, ensuring reliable performance across various environmental conditions.

Warranty and Shipping

This AC drive comes with a two-year MRO Electric and Supply warranty, ensuring peace of mind and reliability. Additionally, the product is available with free shipping, making it a cost-effective solution for businesses looking to enhance their motor control systems without incurring additional shipping costs.

FAQs for Siemens 6SL3120-1TE23-0AD0 AC Drive

Q1: What type of applications is the Siemens 6SL3120-1TE23-0AD0 AC drive suitable?

A1: The Siemens 6SL3120-1TE23-0AD0 AC drive suits various industrial applications, including manufacturing, automation, and process control. It is designed to provide precise motor control for tasks requiring high-performance speed and torque management, especially in limited space.

Q2: What are the key specifications of the 6SL3120-1TE23-0AD0 AC drive?

A2: This AC drive features a rated output of 16 kW, operates at a voltage range of DC 510 to 720 V, and has a power supply of DC 24 V with a -15% to +20% tolerance. It supports a maximum current demand of 0.80 A, an output current of 25.5 A, and a rated pulse frequency of 4.00 kHz. The drive also includes internal air cooling, a DC link capacitance of 705 µF, and dimensions of 14.96 inches in height, 3.94 inches in width, and 10.63 inches in depth.

Q3: What type of cooling system does the Siemens 6SL3120-1TE23-0AD0 use?

A3: The Siemens 6SL3120-1TE23-0AD0 AC drive uses an internal air cooling system. This design helps maintain optimal operating temperatures, ensuring the drive operates efficiently and reliably even in demanding conditions.

Q4: What safety features are integrated into the 6SL3120-1TE23-0AD0 AC drive?

A4: The 6SL3120-1TE23-0AD0 AC drive comes with integrated safety functions, including compliance with SIL 2 according to IEC 61508, Performance Level (PL) d according to EN ISO 13849-1, and Category 3 according to EN ISO 13849-1. These safety certifications ensure that the driver can maintain safe operation and protect personnel and equipment even in the event of a fault.

Q5: What is the protection rating of the Siemens 6SL3120-1TE23-0AD0 AC drive?

A5: The Siemens 6SL3120-1TE23-0AD0 AC drive has a protection rating of IP20, which means it is protected against solid objects greater than 12.5 mm but not against water ingress. It is classified as UL open type, making it suitable for installation in controlled environments where dust and physical contact protection are necessary.

Q6: What cable lengths does the 6SL3120-1TE23-0AD0 AC drive support?

A6: The drive supports a maximum cable length of 328 feet for shielded cables and 492 for unshielded cables. This flexibility allows it to be used in various installation scenarios and facilitates connectivity to different motor types and other control components.

Q7: Does the Siemens 6SL3120-1TE23-0AD0 AC drive come with a warranty?

A7: This AC drive comes with a two-year warranty provided by MRO Electric and Supply, ensuring users are protected after purchase.

Q8: What are the shipping details for the 6SL3120-1TE23-0AD0 AC drive?

A8: MRO Electric and Supply offers free shipping for the Siemens 6SL3120-1TE23-0AD0 AC drive, making it a cost-effective purchase for businesses seeking reliable and efficient motor control solutions.

Q9: What international standards does the 6SL3120-1TE23-0AD0 AC drive comply with?

A9: The Siemens 6SL3120-1TE23-0AD0 AC drive complies with CE and cULus standards, indicating it meets stringent international requirements for safety, quality, and performance.

Q10: Can the Siemens 6SL3120-1TE23-0AD0 AC drive be installed in environments with fluctuating temperatures?

A10: The drive is designed to operate in ambient temperatures ranging from 32 to 104°F, making it suitable for various industrial environments where temperature fluctuations may occur.
