Siemens 6SL3100-0BE21-6AB0

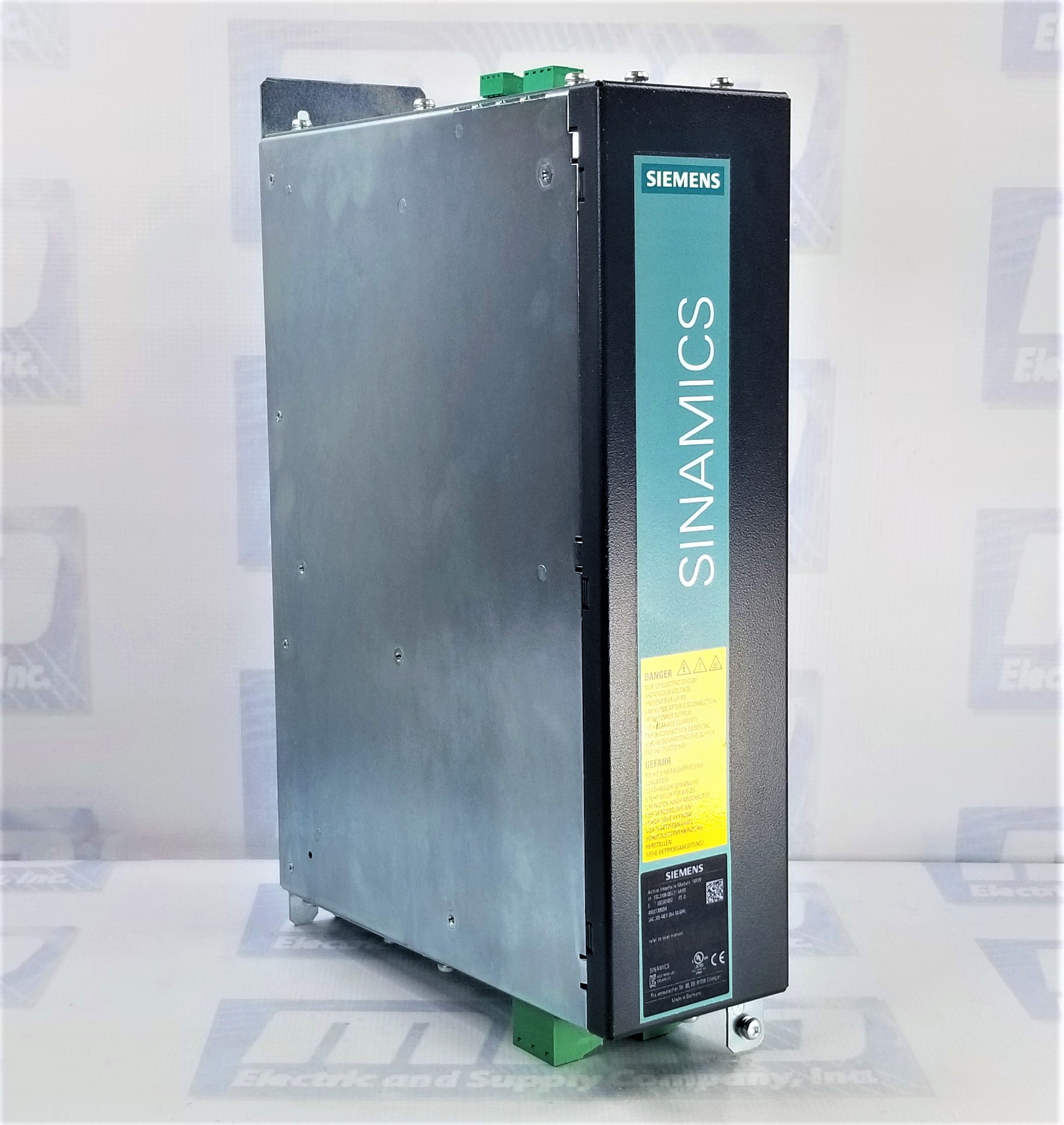

6SL31000BE216AB0 S120 Active Interface Module

The 6SL31000BE216AB0 S120 Active Interface Module Booksize is an advanced electrical device designed to enhance efficiency and control in industrial applications. This compact and robust module offers a wide range of features, making it a versatile choice for various industrial setups. In this article, we will delve into the technical specifications, electrical data, and mechanical details of this remarkable interface module.

Electrical Data:

The 6SL31000BE216AB0 operates with three AC phases, accommodating line voltages ranging from 380V to 480V. The module's internal resistor has a rated resistance of 1440 Ω, with a tolerance of +10% to -10%. With a power loss of only 0.34 kW, this device ensures minimal energy wastage while delivering optimal performance. Additionally, the module operates at a sound pressure level of 60 dB, ensuring a quieter environment in industrial setups.

The module's rated current stands at 58 A, and it requires a power supply of DC 24 V, drawing a current of 1.6 A. Furthermore, the switching current for normally closed (NC) circuits is specified at 0.75 A for 250 V AC and 0.49 A for 60 V DC. These electrical data points showcase the module's efficiency and ability to handle various loads with ease.

Ambient Conditions:

The 6SL31000BE216AB0 is built to withstand demanding industrial environments, with an operating temperature range suitable for most setups. The internal air cooling mechanism ensures that the module remains within acceptable temperature limits. The cooling air throughput is 0.04 m³/s (1.41 ft³/s), guaranteeing optimal thermal management during operation.

General Technical Specifications:

The mechanical dimensions of the 6SL31000BE216AB0 are compact, with a height of 270 mm (10.63 in), width of 150 mm (5.91 in), and depth of 380 mm (14.96 in). Despite its small size, the module weighs 19.00 kg (41.89 lb), a testament to its sturdy construction and quality materials.

The module's construction complies with IP20/UL open-type protection standards, ensuring that it is resistant to dust and foreign particles. Additionally, the design incorporates a screw-type terminal for secure and reliable connections. The PE conductor utilizes an M6 screw, enhancing the safety and durability of the connections.

Application and Compliance:

The 6SL31000BE216AB0 S120 Active Interface Module Booksize finds applications in a wide range of industrial systems, particularly in those that require precise control and efficient power management. Its compact booksize design makes it suitable for space-constrained setups.

Furthermore, the module complies with the cURus standards, ensuring that it meets stringent safety and performance criteria. Users can trust the reliability and quality of this interface module due to its compliance with industry norms.

FAQs for Siemens 6SL3100-0BE21-6AB0 Active Interface Module

1. What is the Siemens 6SL3100-0BE21-6AB0 used for?

The Siemens 6SL3100-0BE21-6AB0 is an active interface module designed for use in the SINAMICS S120 drive system. It connects the power supply and the drive, providing efficient power management and system integration. It ensures stable and controlled operation within the drive system, typically used in industrial automation settings.

2. What type of protection does the 6SL3100-0BE21-6AB0 offer?

This active interface module comes with an IP20/UL open-type protection rating, which means it provides protection against solid objects larger than 12.5 mm but is not waterproof. It is suitable for installation in controlled environments where exposure to dust or water is minimal.

3. What are the power and voltage specifications for the 6SL3100-0BE21-6AB0?

The Siemens 6SL3100-0BE21-6AB0 operates with a line voltage of 380-480 V and is designed for three-phase AC input. It supplies 0.25 A of power at 24 V DC, making it suitable for use with various industrial devices requiring a stable power source.

4. How does the 6SL3100-0BE21-6AB0 module handle cooling?

This module utilizes internal air cooling, with built-in fans or airflow channels to dissipate heat generated during operation. This helps maintain optimal operating temperatures and ensures the device's longevity.

5. What are the dimensions of the 6SL3100-0BE21-6AB0?

The Siemens 6SL3100-0BE21-6AB0 has a height of 14.96 inches, a width of 3.94 inches, and a depth of 10.63 inches. Its booksize construction allows for compact and easy installation within SINAMICS S120 systems.

6. Is this product covered by a warranty?

Yes, the Siemens 6SL3100-0BE21-6AB0 has a 2-year MRO Electric and Supply warranty.

7. Does MRO Electric offer free shipping for this product?

Yes, MRO Electric provides free shipping for the Siemens 6SL3100-0BE21-6AB0, which can help reduce users' overall costs of purchasing the module.

8. What are the current input and output ratings of this module?

The module is rated for an input current of 26 A, making it suitable for handling substantial power loads in industrial environments. It also includes specific switching current ratings for NC circuits: 1.6 A at 250 V AC and 0.75 A at 60 V DC.

9. What standards does the Siemens 6SL3100-0BE21-6AB0 comply with?

The 6SL3100-0BE21-6AB0 module meets cURus standards, which indicate compliance with Canadian and U.S. safety regulations for industrial equipment. This ensures its reliability and safety in various applications.

10. What is the sound pressure level of this module?

The Siemens 6SL3100-0BE21-6AB0's sound pressure level is 57 dB. This indicates that it operates relatively quietly, which is beneficial in environments where noise levels need to be minimized.
