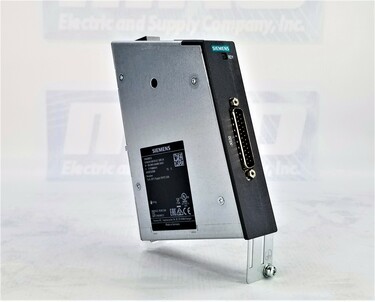

Siemens 6SL3055-0AA00-5AA3 Encoder: Precision Sensor Module for SINAMICS S120 Systems

Overview

The Siemens 6SL3055-0AA00-5AA3 encoder is an exact sensor module designed for use within the SINAMICS S120 drive system. Also known as the SMC10 Sensor Board, this sensor module facilitates advanced motion control by enabling the accurate evaluation of resolver signals without requiring a DRIVE-CLiQ cable. This setup ensures high-fidelity position feedback, essential for automation and manufacturing processes where precision and reliability are critical. Siemens’ commitment to quality and functionality is evident in this model, which seamlessly integrates into the broader SINAMICS S120 system for superior motion control performance. This sensor module comes with a 2-year warranty from MRO Electric and Supply, adding extra peace of mind for operators in high-demand industrial settings.

Key Features

The Siemens 6SL3055-0AA00-5AA3 is engineered to deliver accurate and dependable signal evaluation from resolvers. By eliminating the need for a DRIVE-CLiQ cable, this sensor module simplifies installation and reduces wiring complexity within control cabinets. The SMC10 Sensor Board’s primary function is to handle position and speed feedback without compromising accuracy, making it ideal for dynamic applications requiring exact positioning and controlled motion.

This model’s compatibility with the SINAMICS S120 range enhances its versatility, as the S120 is widely used across industries such as automotive manufacturing, packaging, and material handling. The S120 system’s modular nature allows users to scale their setups as needed, and the 6SL3055-0AA00-5AA3 fits seamlessly into this framework, supporting applications that rely on precise measurement and motion control.

Advanced Operational Capabilities

The 6SL3055-0AA00-5AA3’s ability to process resolver signals without a DRIVE-CLiQ cable adds unique value to its design. This feature allows for straightforward integration into systems where cabling limitations or compact spaces are a concern. Operating as a reliable evaluation unit, it processes resolver feedback with minimal signal loss, ensuring critical motion control operations remain accurate even under rigorous conditions. This capability is especially advantageous in high-speed applications or where rapid changes in positioning and movement are essential.

Moreover, this sensor module’s integration within the SINAMICS S120 range allows users to benefit from the system’s intelligent motion control features, including diagnostics and dynamic load handling. The SMC10 Sensor Board offers efficient signal processing and high resistance to electrical noise, enhancing control systems' accuracy in high-vibration and high-EMI environments. This durability helps reduce maintenance needs and contributes to an extended operational lifespan, ensuring long-term performance and system reliability.

Warranty and Support

MRO Electric and Supply provides a 2-year warranty on the Siemens 6SL3055-0AA00-5AA3, covering repair or replacement if required. This allows operators to rely on this sensor module for demanding applications. Siemens' established track record in industrial automation guarantees that the 6SL3055-0AA00-5AA3 encoder is a robust and durable choice, ideally suited for advanced industrial environments.

Frequently Asked Questions (FAQ)

1. What type of feedback signal does the Siemens 6SL3055-0AA00-5AA3 process?

The 6SL3055-0AA00-5AA3 sensor module is designed to evaluate resolver signals, providing accurate positioning feedback without needing a DRIVE-CLiQ cable.

2. Is this sensor module compatible with the SINAMICS S120 system?

This sensor module is fully compatible with the SINAMICS S120 range, making it a versatile addition to any S120-based motion control system.

3. What are the benefits of not requiring a DRIVE-CLiQ cable for this module?

Eliminating the need for a DRIVE-CLiQ cable simplifies installation, reduces wiring complexity, and enables easier integration in compact setups where cabling space may be limited.

4. Can this module handle high-speed applications?

Yes, the 6SL3055-0AA00-5AA3 is engineered for precision feedback, making it suitable for high-speed, dynamic applications that require fast and accurate positioning.

5. What kind of warranty is available for this model?

MRO Electric and Supply offers a 2-year warranty on the 6SL3055-0AA00-5AA3, covering repair or replacement if necessary, ensuring reliability and support for industrial applications.

6. Is the sensor module resistant to electrical noise?

Yes, the SMC10 Sensor Board is built to resist electrical noise, ensuring that resolver signals are accurately processed even in environments with high electromagnetic interference (EMI).

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Encoders from other manufacturers such as FANUC and Yaskawa.
