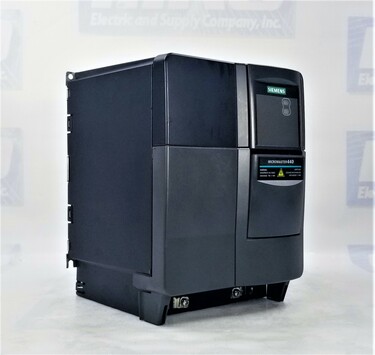

Siemens 6SE6440-2UD31-1CA1

Micromaster 440 6SE64402UD311CA1

The Siemens 6SE64402UD311CA1, part of the Micromaster 440 (MM440) series, is a powerful and versatile AC frequency inverter designed to drive 3-phase motors with a power rating of 11 kW (equivalent to 15 horsepower). Engineered for precision and efficiency, this drive is a go-to solution for various industrial applications, offering reliable performance and robust control capabilities.

Operation

As a 3-phase drive, the 6SE64402UD311CA1 is well-suited for industrial setups that require continuous and stable power delivery. Its output current rating of 26A (for Current Transformers) or 32A (for Voltage Transformers) ensures consistent power flow to the connected motor, promoting smooth and efficient operation. The drive's capability to operate in either Constant V/F (Voltage/Frequency) mode or Sensorless Flux Vector control mode provides flexibility in matching the control strategy to the specific motor and application requirements.

This Siemens AC drive features an input voltage rating of 380-480V AC, making it compatible with a wide range of power supplies commonly found in industrial environments. The inclusion of both analog and digital inputs and outputs (2 analog inputs, 6 digital inputs, 2 analog outputs, and 3 relay outputs) offers versatile connectivity options, allowing for integration with various control systems and enabling precise control over the motor's performance.

Features

One notable feature of the 6SE64402UD311CA1 is its robust overload capabilities. It can handle high overload conditions, sustaining 150% of its rated current for up to 60 seconds, and even higher loads of 200% for 3 seconds, when operating at 11 kW in high overload mode. For applications where fan or pump operations are required, the drive can support an overload of 110% for 60 seconds or 140% for 3 seconds when running at 15 kW. This level of overload protection ensures the drive's durability and reliability in demanding operating conditions.

The drive's speed control range spans from 0Hz to an impressive 650Hz, providing the flexibility to accommodate a wide variety of motor speed requirements. For applications where controlled deceleration or braking is necessary, the drive can be connected to an external braking resistor with a minimum resistance of 56 Ohms. This feature enhances safety and control, particularly in scenarios where rapid motor deceleration is crucial.

Installation

Installation and maintenance of the Siemens 6SE64402UD311CA1 are straightforward. The drive's compact design, with dimensions of 185mm wide, 245mm high, and 195mm deep, allows for versatile mounting options. It can be wall-mounted in a clean environment or placed in a cubicle, with specific ventilation requirements taken into account to ensure proper heat dissipation. The drive's operating temperature range of -10°C to +50°C makes it suitable for a variety of working environments. The Siemens 6SE64402UD311CA1 is compatible with various operator panels that can be purchased separately. These panels offer different levels of control and monitoring, catering to users' specific needs.

FAQ for Siemens 6SE6440-2UD31-1CA1 Micromaster AC Drive

What type of motor does the Siemens 6SE6440-2UD31-1CA1 support?

The drive is designed with squirrel cage induction motors commonly employed in industrial applications.

What is the power rating of this drive?

This AC drive's power rating is 11 kW (15 hp), making it suitable for medium-duty industrial tasks.

What is the input voltage range for this drive?

The drive operates within an input voltage range of 380-480V AC, compatible with standard three-phase industrial power supplies.

What type of control does this drive offer?

It features fixed frequency programmable control, supporting V/Hz (volts per hertz) control for precise motor operation.

What is the output current rating for this model?

The output current rating is 26A in constant torque (CT) mode and 32A in variable torque (VT) mode.

What are the enclosure and protection features?

The drive has an IP20-rated enclosure, offering essential protection against solid objects, but it is not waterproof.

What are the physical dimensions of this AC drive?

The unit measures 9.64 inches in height, 7.28 inches in width, and 7.67 inches in depth.

What temperature range is suitable for operation?

The drive's operational temperature range is -10°C to +50°C, making it versatile for various industrial environments.

Can this drive be used in safety-critical environments?

Yes, the drive meets Class II standards, ensuring insulation and safety compliance for industrial applications.

What warranty coverage is available for this product?

The Siemens 6SE6440-2UD31-1CA1 has a 2-year MRO Electric warranty, providing peace of mind and support for long-term usage.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.
