Siemens 6SE6440-2AD31-1CA1

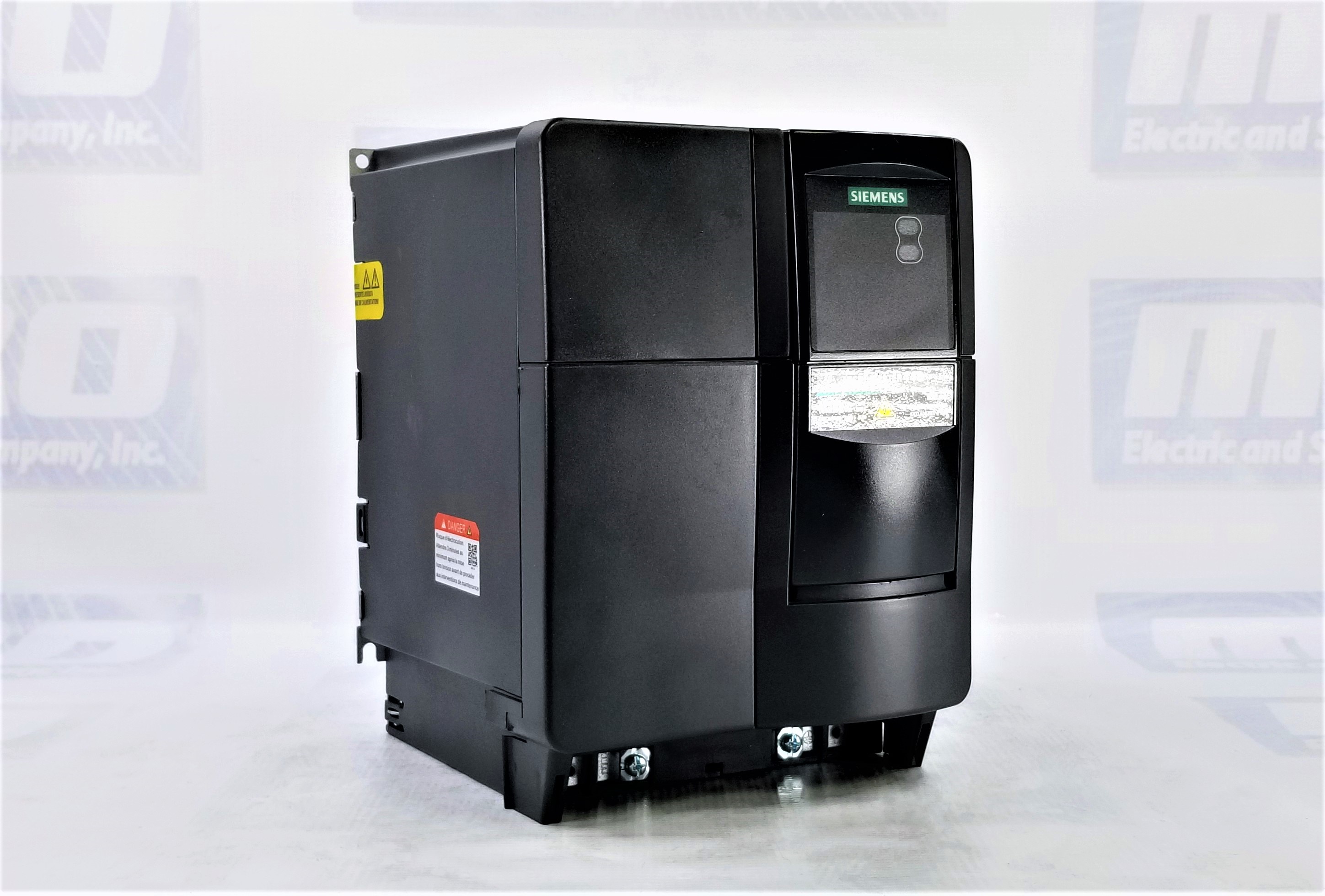

MICROMASTER 440 Siemens 6SE6440-2AD31-1CA1: Precision in Drive Technology

The MICROMASTER 440, represented by the Siemens 6SE6440-2AD31-1CA1, is a state-of-the-art variable frequency drive (VFD) designed to provide precision and efficiency in drive technology. With its robust features and advanced specifications, this drive is engineered to meet the demands of a wide range of industrial applications.

Rated Data and General Technical Specifications:

The MICROMASTER 440 boasts impressive specifications, including a rated power of 11.00 kW (15.00 hp) and a maximum rated power of 15.00 kW (20.00 hp). Operating on 480 V with a line frequency of 47 to 63 Hz, this drive is capable of delivering reliable performance across various power systems.

Ambient Conditions:

Engineered for versatility, the MICROMASTER 440 can operate in a broad range of ambient conditions. From an ambient temperature as low as -40°C to as high as 70°C, this drive ensures consistent and reliable performance, making it suitable for diverse industrial environments.

Input and Output:

This VFD supports a three-phase input and output configuration, providing stability and efficiency in motor control. With a line voltage range of 380 to 480 V and a frequency range of 0 to 650 Hz for V/f control, the MICROMASTER 440 demonstrates flexibility in adapting to various motor requirements.

Overload Capability:

The MICROMASTER 440 is equipped with an impressive overload capability. In the low overload (LO) mode, it can handle 140% output current for 3 seconds, followed by 110% output current for 57 seconds, and finally 100% output current for 240 seconds in a 300-second cycle time. In the high overload (HO) mode, it supports 150% output current for 60 seconds, followed by 100% output current for 240 seconds in a similar 300-second cycle time.

Efficiency and Operation:

This drive excels in efficiency, boasting an efficiency rating of 96% (η 0.96). Operating in temperatures ranging from -10°C to 50°C in high overload (HO) mode, it ensures optimal performance even in demanding conditions.

Digital and Analog Interfaces:

Featuring three standard digital inputs, six digital inputs/outputs, two relay outputs, and two analog inputs, the MICROMASTER 440 provides a comprehensive interface for seamless integration into various control systems.

Mechanical Data:

Compact and designed for ease of installation, the MICROMASTER 440 has a frame size that aligns with industry standards. With dimensions of 195.0 mm (height), 185.0 mm (depth), and 245.0 mm (width), and a net weight of 5.70 kg, it is a robust yet space-efficient solution.

Frequently Asked Questions

1. What is the primary application of the MICROMASTER 440?

• The MICROMASTER 440 is a variable frequency drive designed for precision and efficiency in motor control applications across a wide range of industrial settings.

2. What is the rated power of the MICROMASTER 440?

• The MICROMASTER 440 has a rated power of 11.00 kW (15.00 hp) and a maximum rated power of 15.00 kW (20.00 hp).

3. What is the operating voltage and frequency range of the MICROMASTER 440?

• The drive operates on 480 V with a line frequency range of 47 to 63 Hz.

4. What is the ambient temperature range for the MICROMASTER 440?

• The MICROMASTER 440 is designed to operate in a broad ambient temperature range, from -40°C to 70°C, ensuring adaptability to diverse industrial environments.

5. Can the MICROMASTER 440 handle overload conditions?

• Yes, the MICROMASTER 440 demonstrates impressive overload capabilities. In low overload (LO) mode, it can handle 140% output current for 3 seconds, followed by 110% output current for 57 seconds, and 100% output current for 240 seconds in a 300-second cycle time.

6. What is the efficiency rating of the MICROMASTER 440?

• The MICROMASTER 440 boasts an efficiency rating of 96% (η 0.96), ensuring optimal energy utilization in motor control applications.

7. What are the digital and analog interfaces provided by the MICROMASTER 440?

• The MICROMASTER 440 features three standard digital inputs, six digital inputs/outputs, two relay outputs, and two analog inputs, providing a comprehensive interface for seamless integration into various control systems.

8. What are the dimensions and weight of the MICROMASTER 440?

• The drive has compact dimensions, with a height of 195.0 mm, depth of 185.0 mm, and width of 245.0 mm. The net weight is 5.70 kg.

9. Can the MICROMASTER 440 operate in challenging environmental conditions?

• Yes, the MICROMASTER 440 is designed to operate in demanding conditions, with an operational temperature range of -10°C to 50°C in high overload (HO) mode.

10. Is the MICROMASTER 440 suitable for various industrial applications?

• The MICROMASTER 440's precision, efficiency, and versatile features make it suitable for a wide range of industrial applications where precise motor control is essential.
