SIMATIC CONNECTION PLUG FOR PROFIBUS, UP TO 12 MBIT/S, 90° CABLE OUTLET
| Part Number | 6ES7972-0BB52-0XA0 |
| Manufacturer | Siemens |
| Type | Connectors |
| Model # | 6ES79720BB520XA0 |
| Warranty | 2 Year |
| Range | SIMATIC DP |
| Category | Profibus |
| Description | Connection plug |
| Connector | RS-485 |
| Bus connector | Fast Connect |
| Data transfer | 9.6 kbit/s to 12 Mbit/s |
| Operator temp | -25°C to +60°C |
| Protection | IP20 |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6ES7972-0BB52-0XA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6ES7972-0BB52-0XA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6ES7972-0BB52-0XA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6ES7972-0BB52-0XA0 for credit when ordering from MRO Electric

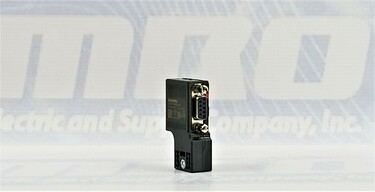

The Siemens 6ES7972-0BB52-0XA0 is a PROFIBUS connector designed for fast and reliable connections in industrial automation networks. As part of the SIMATIC DP series, this RS-485 Fast Connect bus connector ensures seamless communication between PROFIBUS stations and controllers. It offers a user-friendly and efficient installation process with a 90° cable outlet and integrated insulation displacement terminals.
This PROFIBUS connector is engineered to support high-speed data transfer rates ranging from 9.6 kbit/s to 12 Mbit/s, making it suitable for various industrial environments requiring stable and efficient data communication.
The 6ES7972-0BB52-0XA0 is designed for easy and quick installation using the FastConnect insulation displacement method, allowing for secure and time-saving cable connections. It features:
With dimensions of 15.8 mm (W) x 59 mm (H) x 35.6 mm (D) and a net weight of just 45 g, this connector is compact and lightweight. Despite its small size, the plastic enclosure is designed for durability in industrial environments, offering secure and stable connections. The screwed joint locking mechanism ensures that the connector remains securely in place.
The 6ES7972-0BB52-0XA0 is built to function reliably in harsh industrial conditions. Its operating temperature range is -25°C to +60°C, and storage/transport temperature tolerances are between -40°C and +70°C. Its IP20 protection rating makes it suitable for standard industrial environments where minimal exposure to dust and moisture is expected.
This PROFIBUS connector also meets international compliance standards:
What is the primary function of the Siemens 6ES7972-0BB52-0XA0?
This PROFIBUS connector establishes secure and fast communication between PROFIBUS stations, controllers, and network components in industrial automation systems.
What is the maximum data transfer rate this connector supports?
The 6ES7972-0BB52-0XA0 supports data transfer speeds from 9.6 kbit/s up to 12 Mbit/s, making it ideal for high-speed PROFIBUS communication.
What type of connection does this connector use for network components?
It features a 9-pin sub-D connector connecting to network components or terminal equipment.
Does this connector support FastConnect technology?
Yes, it uses the FastConnect insulation displacement method, allowing quick and reliable installation without stripping the PROFIBUS cable.
What is the purpose of the integrated terminating resistor?
The integrated resistor combination ensures proper signal termination in PROFIBUS networks and can be activated via a slide switch to prevent communication errors.
What are the dimensions of the connector?
The dimensions are 15.8 mm (W) x 59 mm (H) x 35.6 mm (D), making it a compact solution for industrial automation setups.
What environmental conditions can this connector withstand?
Is this connector compatible with all PROFIBUS networks?
It is designed for PROFIBUS DP networks and can be used with various Siemens automation systems and other compatible industrial components.
What type of locking mechanism does this connector use?
It features a screwed joint locking mechanism, ensuring that the connection remains secure and stable even in industrial settings with vibrations.
Does this connector come with a warranty?
Yes, it comes with a 2-year MRO Electric and Supply warranty, and free shipping is included.
