Siemens 6ES7322-1BL00-0AA0

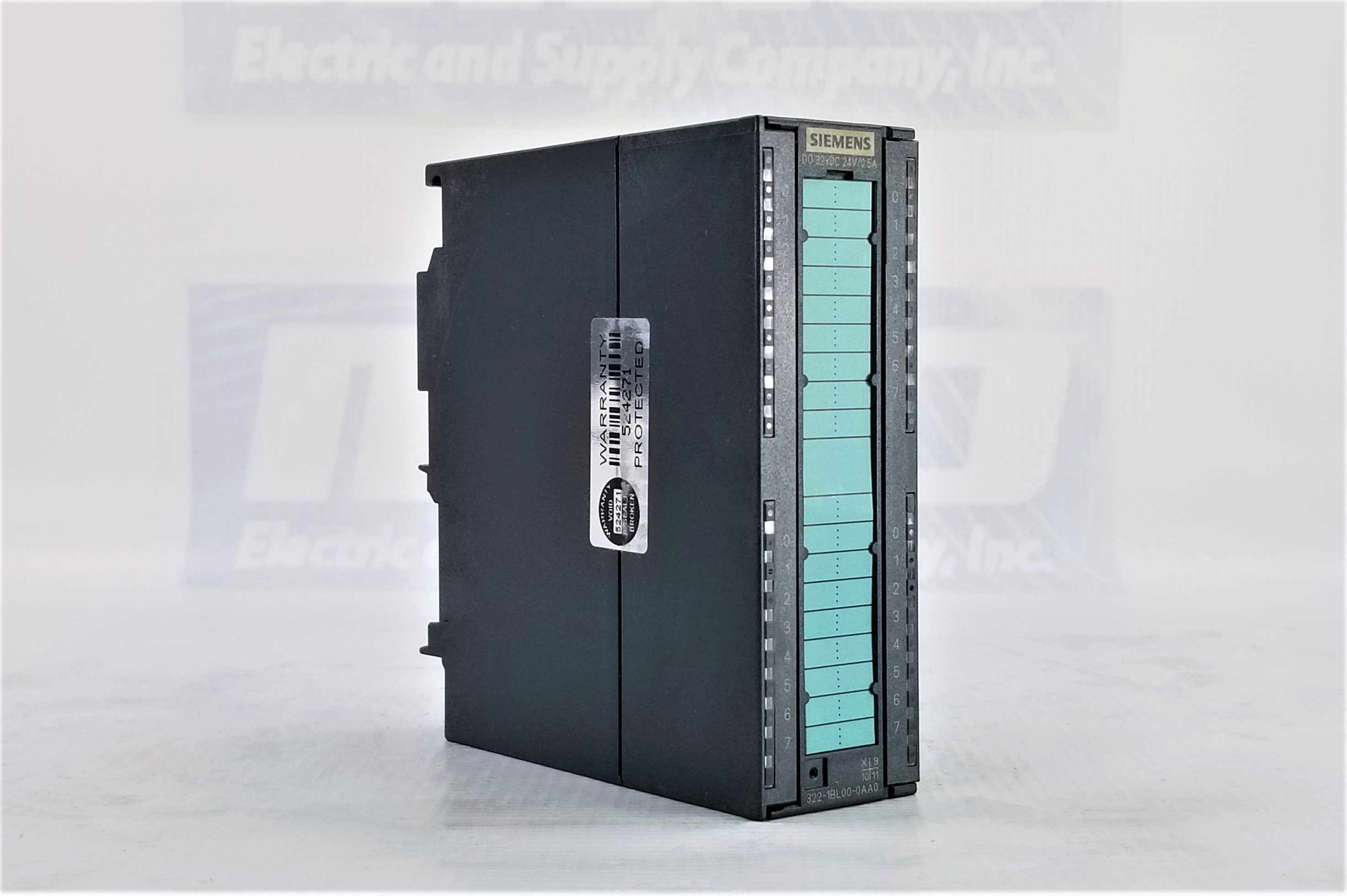

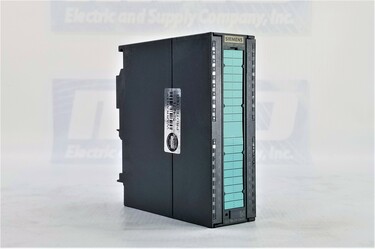

Siemens 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module

The Siemens 6ES7322-1BL00-0AA0 is a high-performance digital output module designed for the SIMATIC S7-300 series, a well-known range within Siemens’ automation product portfolio. This module is tailored to meet the demands of industrial automation applications, offering reliability, precision, and robust functionality.

Model Overview

The 6ES7322-1BL00-0AA0 model belongs to the digital output category and is part of the broader SIMATIC S7-300 range, renowned for its modularity and ease of integration. Due to its scalability and adaptability, the S7-300 series is widely used in various industrial sectors, including manufacturing, processing, and utilities. This digital output module is engineered to handle multiple output tasks, making it a versatile component in complex automation systems.

Technical Specifications

The Siemens 6ES7322-1BL00-0AA0 module has 32 digital outputs, providing ample capacity for simultaneously controlling multiple devices or processes. Each output operates at a rated voltage of 24 VDC, a standard in industrial environments that ensures compatibility with a wide range of equipment. The module is designed to handle a rated current of 0.5 amps per channel, sufficient for driving most industrial actuators and indicators.

Connection and Configuration

This digital output module features a 1 x 40 pole configuration, facilitating a straightforward connection to the system bus and other modules within the S7-300 series. The 40-pole design ensures a secure and reliable connection, minimizing the risk of disconnections or signal loss in demanding industrial environments. The module’s outputs are designed to be highly responsive, ensuring precise control over connected devices, which is critical in applications where timing and accuracy are paramount.

Durability and Reliability

Siemens has built the 6ES7322-1BL00-0AA0 to withstand the rigorous demands of industrial operations. The module’s robust construction ensures long-term reliability, even in harsh conditions where exposure to dust, vibration, and temperature fluctuations is every day. The module's performance reflects Siemens’ commitment to quality, making it a trusted choice for automation professionals.

Application Versatility

The 6ES7322-1BL00-0AA0 suits various applications, from simple control tasks to more complex automation processes. Whether used in manufacturing lines, material handling systems, or energy management applications, this module offers the flexibility and performance needed to meet diverse operational requirements. Its integration into the SIMATIC S7-300 system allows for seamless communication and coordination with other modules, enhancing overall system efficiency.

Warranty and Support

When purchasing the Siemens 6ES7322-1BL00-0AA0 from MRO Electric and Supply, customers benefit from a 2-year warranty, providing peace of mind and quality assurance. This warranty underscores Siemens’ confidence in the durability and performance of its products. MRO Electric and Supply offers free shipping on this module, enhancing its value and accessibility.

FAQ for Siemens 6ES7322-1BL00-0AA0 SIMATIC S7-300 Digital Output Module

1. What is the Siemens 6ES7322-1BL00-0AA0 used for?

The Siemens 6ES7322-1BL00-0AA0 is a digital output module designed for the SIMATIC S7-300 series. It controls and manages up to 32 digital outputs, making it suitable for various industrial automation tasks such as controlling actuators, indicators, and other devices that require precise on/off signals.

2. What are the key specifications of the 6ES7322-1BL00-0AA0?

Key specifications of the Siemens 6ES7322-1BL00-0AA0 include:

• 32 digital outputs
• Rated voltage of 24 VDC
• Rated current of 0.5 amps per output channel
• 1 x 40-pole connection configuration. These specifications make the module suitable for controlling various industrial devices.

3. How does the module connect to the SIMATIC S7-300 system?

The 6ES7322-1BL00-0AA0 connects to the SIMATIC S7-300 system via a 40-pole connection. This connection ensures secure and reliable communication between the module and other components of the S7-300 system, facilitating seamless integration and operation within the automation environment.

4. What kind of environments is this module suitable for?

The Siemens 6ES7322-1BL00-0AA0 is designed to operate reliably in industrial environments. Its robust construction allows it to withstand exposure to dust, vibration, and temperature fluctuations, making it suitable for use in manufacturing plants, material handling systems, and other demanding industrial applications.

5. Is the Siemens 6ES7322-1BL00-0AA0 compatible with other modules in the S7-300 series?

Yes, the 6ES7322-1BL00-0AA0 is fully compatible with other modules in the SIMATIC S7-300 series. It can be seamlessly integrated into an existing S7-300 system, allowing for coordinated control and communication with different modules, such as input modules, CPUs, and communication processors.

6. What warranty is provided with the 6ES7322-1BL00-0AA0 when purchased from MRO Electric and Supply?

When purchased from MRO Electric and Supply, the Siemens 6ES7322-1BL00-0AA0 has a 2-year warranty.

7. Does MRO Electric and Supply offer free shipping for this module?

Yes, MRO Electric and Supply offer free shipping on the Siemens 6ES7322-1BL00-0AA0. This service adds value to the purchase, ensuring customers receive their module quickly and without additional shipping costs.

8. Can the module handle the simultaneous operation of all 32 outputs?

The Siemens 6ES7322-1BL00-0AA0 is designed to operate all 32 outputs simultaneously, each at a rated current of 0.5 amps. This capability makes it suitable for complex automation tasks that require the control of multiple devices simultaneously.

9. What are the typical applications for this digital output module?

Typical applications for the 6ES7322-1BL00-0AA0 include controlling industrial actuators, lighting systems, signal indicators, and other devices that require digital on/off signals. It is commonly used in manufacturing processes, material handling systems, and energy management applications.

10. How can I ensure proper installation and operation of this module?

Following the installation guidelines provided in the Siemens manual for the SIMATIC S7-300 series is essential to ensure proper installation and operation of the 6ES7322-1BL00-0AA0. Proper wiring, secure connections, and adherence to the recommended environmental conditions will help ensure reliable performance.
