Siemens 6ES7315-2EH14-0AB0

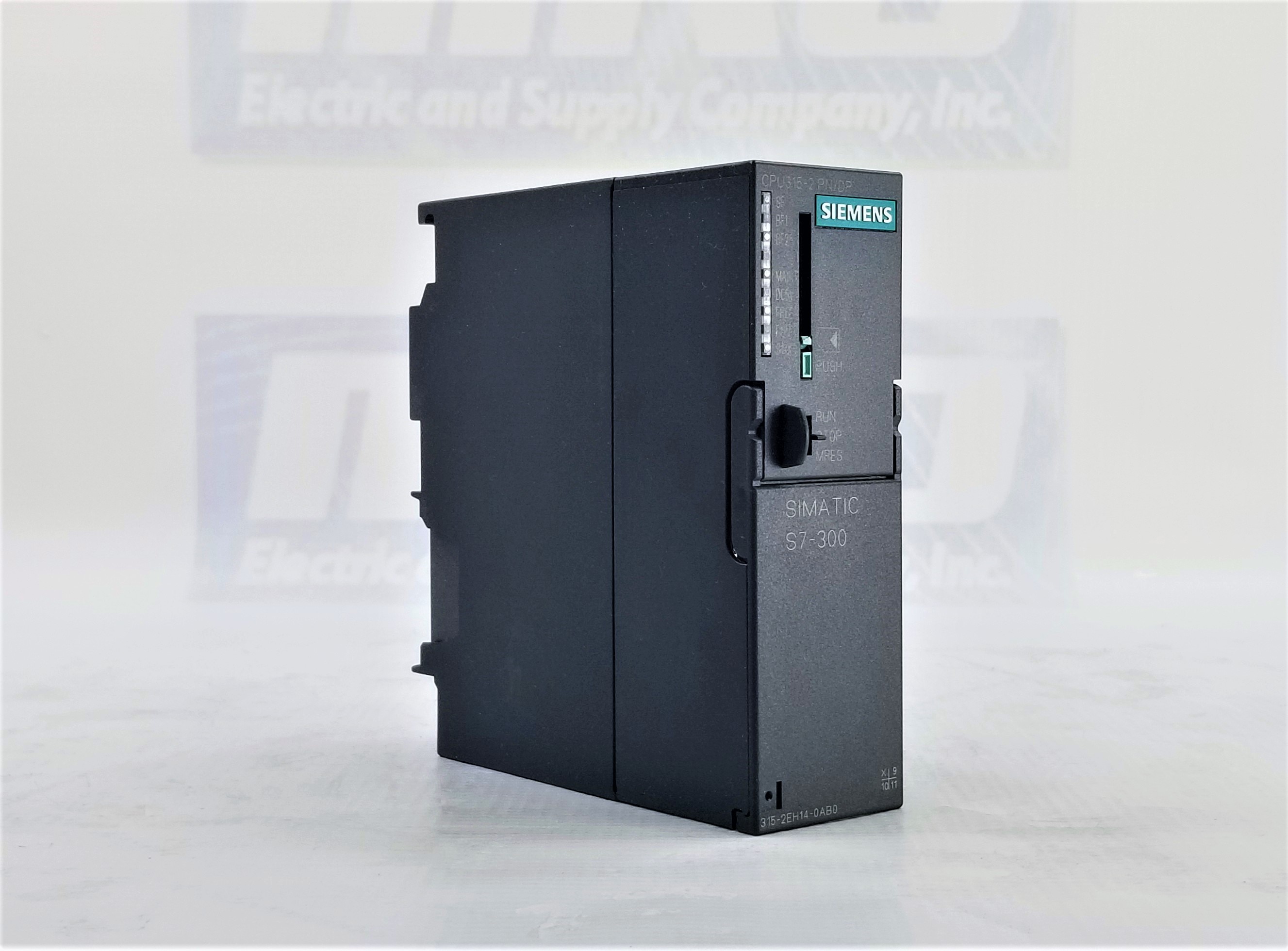

Siemens 6ES7315-2EH14-0AB0 CPU Module

The Siemens 6ES7315-2EH14-0AB0 CPU module is a critical component of the SIMATIC S7-300 series, designed to enhance industrial automation systems with superior processing power and robust communication capabilities. This CPU module is optimized for medium to large-scale applications, delivering reliable performance in various environments. It suits complex control tasks, ensuring efficient data processing and seamless integration into automation systems.

Key Features and Capabilities

The 6ES7315-2EH14-0AB0 module offers comprehensive features tailored for diverse industrial applications. It comes equipped with 384 KB of integrated work memory, providing ample program and data storage space. The module supports a CPU processing time of just 0.05 µs per instruction, making it highly efficient for fast control and monitoring processes. This rapid processing capability ensures minimal response time, which is crucial for time-sensitive applications.

Interface and Communication

One of the standout features of the Siemens 6ES7315-2EH14-0AB0 is its advanced communication interface. It includes Ethernet PROFINET and Multipoint Interface (MPI) / PROFIBUS DP (Distributed Peripheral) support, enabling seamless connectivity and communication with other devices in the network. The PROFINET interface provides high-speed data exchange and real-time communication capabilities, essential for complex automation tasks. The MPI/DP interface allows for flexible integration with various field devices and sensors, enhancing the overall efficiency of the automation system.

Hardware and Firmware Specifications

The module is designed with robust hardware and firmware specifications to ensure reliable performance in industrial environments. The hardware functional status is rated at level 1, and it comes with firmware version V3.2, which is compatible with the STEP 7 V5.5 or higher programming package. This compatibility ensures easy programming, configuration, and maintenance of the module. The module operates at a rated value of 24 V DC with an input current of 750 mA and features a typical inrush current of 4 amps. The power loss of the unit is 4.65 watts, indicating energy efficiency in operation.

Memory and Data Management

The 6ES7315-2EH14-0AB0 CPU module includes 384 KB of integrated memory, which can handle up to 1,024 data blocks (DB) ranging from 1 to 16,000. This extensive memory capacity allows for managing large volumes of data, making the module ideal for complex applications requiring significant data handling and processing capabilities. The comprehensive database management feature supports storing and retrieving large amounts of operational data, enhancing the module's versatility in various automation tasks.

Energy Efficiency and Reliability

The Siemens 6ES7315-2EH14-0AB0 is designed with energy efficiency and reliability in mind. Its power loss rating of 4.65 W and input current requirements of 750 mA contribute to its low energy consumption, making it a cost-effective solution for long-term use. Its robust design further supports The module's reliability, which ensures stable operation in challenging industrial environments. This durability is essential for minimizing downtime and ensuring continuous production processes.

Warranty and Shipping

The Siemens 6ES7315-2EH14-0AB0 CPU module comes with a two-year warranty from MRO Electric and Supply, providing customers with peace of mind regarding their investment. Additionally, free shipping is available, making it an attractive option for businesses seeking cost-effective and reliable automation solutions.

FAQs for Siemens 6ES7315-2EH14-0AB0 CPU Module

Q1: What is the Siemens 6ES7315-2EH14-0AB0 CPU module used for?

A1: The Siemens 6ES7315-2EH14-0AB0 CPU module controls and monitors processes in industrial automation systems. It is part of the SIMATIC S7-300 range, designed for medium—to large-scale applications, and is ideal for tasks requiring high-speed data processing, real-time communication, and robust connectivity.

Q2: What are the key features of the 6ES7315-2EH14-0AB0 CPU module?

A2: Key features of the Siemens 6ES7315-2EH14-0AB0 include 384 KB work memory, a fast CPU processing time of 0.05 µs per instruction, Ethernet PROFINET and MPI/DP interfaces for seamless communication, a firmware version of V3.2, and compatibility with the STEP 7 V5.5 or higher programming package. It operates at 24 V DC with an input current of 750 mA and has a typical power loss of 4.65 W.

Q3: What type of communication interfaces does the module support?

A3: The 6ES7315-2EH14-0AB0 CPU module supports Ethernet PROFINET and Multipoint Interface (MPI) / PROFIBUS DP interfaces. The PROFINET interface allows high-speed, real-time data exchange, while the MPI/DP interface offers flexible integration with various field devices and sensors, enhancing communication within the automation network.

Q4: What programming software is required for the 6ES7315-2EH14-0AB0?

A4: The Siemens 6ES7315-2EH14-0AB0 CPU module requires the STEP 7 V5.5 or higher programming software. This software is used for configuring, programming, and maintaining the CPU module, making it easy to integrate into existing automation systems.

Q5: What is the power consumption of this CPU module?

A5: The Siemens 6ES7315-2EH14-0AB0 CPU module has a rated power value of 24 V DC, an input current of 750 mA, and a typical power loss of 4.65 W. It is designed for energy efficiency, ensuring low power consumption during operation.

Q6: How much memory does the 6ES7315-2EH14-0AB0 have?

A6: The module features 384 KB of integrated work memory. This memory capacity is suitable for handling up to 1,024 data blocks, with a range of numbers from 1 to 16,000. This extensive memory capability allows significant data handling, which is essential for complex automation tasks.

Q7: Does the module come with a warranty?

A7: Yes, the Siemens 6ES7315-2EH14-0AB0 CPU module comes with a two-year warranty from MRO Electric and Supply, ensuring peace of mind for customers regarding product quality and reliability.

Q8: What is the shipping policy for the 6ES7315-2EH14-0AB0 module?

A8: MRO Electric and Supply offers free shipping for the Siemens 6ES7315-2EH14-0AB0 CPU module, making it a cost-effective choice for businesses looking to acquire reliable automation components without additional shipping costs.

Q9: Can the 6ES7315-2EH14-0AB0 module be used in harsh industrial environments?

A9: The Siemens 6ES7315-2EH14-0AB0 CPU module is designed to operate reliably in challenging industrial environments. Its robust build ensures stable performance, minimal downtime, and long-term durability, making it suitable for various industrial applications.
