SIMATIC ET 200SP, PROFINET Interface Module (6ES7155-6AU01-0BN0)

Introduction

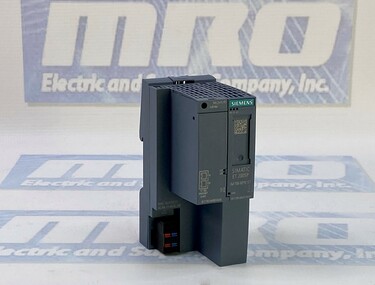

The 6ES7155-6AU01-0BN0 is a PROFINET interface module from Siemens’ SIMATIC ET 200SP series. It is designed to support a range of I/O modules, offering integration and efficiency in industrial networking setups. This module comes with a server module (6ES7193-6PA00-0AA0).

Specifications

• General Features:
• Product Type Designation: IM 155-6 PN ST
• Hardware Functional Status: From FS03
• Product Functions: Supports I&M data from I&M0 to I&M3. It also supports module swapping during operation with single hot swapping.
• Engineering and Configuration:
• Compatible with STEP 7 TIA Portal from version V14, STEP 7 from version V5.5 SP4, and PROFINET from GSD version V2.3.
• Configuration control via dataset is available.
• Power and Electrical Details:
• Supply Voltage: Operates at a rated DC value of 24V, with a permissible range between 19.2V to 28.8V.
• Offers reverse polarity protection and short-circuit protection.
• Mains Buffering: Can store energy for up to 10ms during a mains/voltage failure.
• Current Consumption: Rated at 450mA, with a maximum consumption of 550mA. Has a max inrush current of 3.7A.
• Power Loss: Typical power loss is around 1.9W.
• Address Configuration:
• Each module can have an address space of up to 256 bytes per input/output, and the address space per station is max. 512 bytes depending on the configuration.
• Hardware Configuration:
• Supports up to 32 modules per rack, with an addition of 16 ET 200AL modules.
• Can handle up to 256 submodules per station.
• Interface Details:
• Equipped with one PROFINET interface with two ports integrated with a switch.
• Supports PROFINET IO Device protocol, Open IE communication, and media redundancy with PROFINET MRP.
• The interface employs RJ45 for Ethernet communication and supports PROFINET with 100 Mbit/s full duplex.
• Services offered include IRT, PROFIenergy, prioritized startup, and shared devices.
• Diagnostics and Status Indicators:
• Comes with status indicators, alarms, and diagnostic functions.
• Features various LEDs including RUN, ERROR, MAINT, and monitoring of the supply voltage.
• Isolation and Potential Separation:
• Offers isolation between PROFINET and all other circuits up to 1500 V AC (type test). However, there's no potential separation between the backplane bus and electronics or between the supply and other circuits.
• Ambient Conditions:
• Operable in temperatures ranging from 0°C to 60°C for horizontal installations and up to 50°C for vertical installations.
• Can be operated at altitudes up to 5000m above sea level.
• Physical Dimensions:
• Measures 50mm in width, 117mm in height, and 74mm in depth.
• Weighs approximately 147g without the BusAdapter.

FAQ Section

Q1: What is the main purpose of this PROFINET interface module?

A1: The 6ES7155-6AU01-0BN0 is designed to support and integrate with a range of I/O modules in industrial networking environments.

Q2: Does the module support hot swapping?

A2: Yes, the module supports single hot swapping during operations.

Q3: How many I/O modules can this interface support?

A3: It can support up to 32 I/O modules and 16 ET 200AL modules.

Q4: Is there protection against reverse polarity?

A4: Yes, the module offers reverse polarity protection.

Q5: What is the operational temperature range for this module?

A5: For horizontal installations, it operates between 0°C and 60°C. For vertical installations, it operates between 0°C and 50°C.

Conclusion

The 6ES7155-6AU01-0BN0 PROFINET interface module from Siemens is a versatile and robust solution for industrial networking requirements. With its extensive features and compatibility, it offers seamless integration and optimal performance in various setups.
