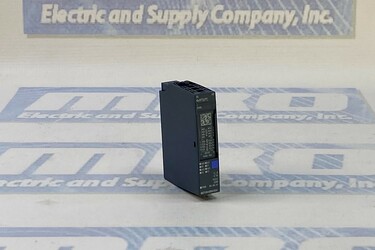

Siemens 6ES7134-6JD00-0CA1

Siemens 6ES7134-6JD00-0CA1 Analog Input Module: Precision and Reliability for Industrial Applications

Overview

The Siemens 6ES7134-6JD00-0CA1 Analog Input Module is a high-performance component within Siemens' Simatic ET 200SP range. This module is engineered to offer precise and reliable measurement capabilities in industrial automation systems, making it an essential part of Siemens' advanced I/O solutions. With its robust features and user-friendly design, the 6ES7134-6JD00-0CA1 is ideal for applications requiring accurate analog input, especially in environments with critical precision and diagnostic capabilities.

Input Specifications and Compatibility

The 6ES7134-6JD00-0CA1 module has four channels dedicated to RTD (Resistance Temperature Detector) inputs. RTDs are widely used for temperature measurement due to their accuracy and stability. This module supports BU Type A0/A1, making it compatible with a broad range of RTD sensors. The channel configuration allows for the monitoring and measuring of temperature in various processes, ensuring that data is collected with high precision and reliability.

Color Coding and Diagnostic Features

The module's color code is CC00, simplifying installation and ensuring correct module placement within the ET 200SP system. This color coding is part of Siemens' commitment to enhancing user experience by minimizing the potential for installation errors. Additionally, the 6ES7134-6JD00-0CA1 includes advanced channel diagnostics capabilities. This feature provides detailed information on the status and health of each input channel, allowing for early detection of potential issues and facilitating efficient maintenance and troubleshooting.

Performance and Reliability

Siemens' commitment to high performance and reliability is evident in the 6ES7134-6JD00-0CA1 module. The module's design meets rigorous industrial standards, offering consistent and accurate measurement even in challenging environments. Its robust construction and advanced diagnostic features contribute to its reliability, making it suitable for critical applications where precision and uptime are paramount.

Integration and Usability

The 6ES7134-6JD00-0CA1 is designed to integrate seamlessly into the Simatic ET 200SP system. Its modular design allows easy installation and configuration, contributing to streamlined system setup and maintenance. The module’s user-friendly interface and diagnostic capabilities facilitate quick and efficient operation, enabling users to focus on their core tasks rather than dealing with complex setup procedures.

Warranty

The Siemens 6ES7134-6JD00-0CA1 Analog Input Module comes with a 2-year MRO Electric and Supply warranty to ensure customer satisfaction and peace of mind.

Free Shipping and Cost-Effectiveness

To further enhance its value, the Siemens 6ES7134-6JD00-0CA1 is available with free shipping from MRO Electric and Supply. This offers a cost-effective solution for businesses upgrading their automation systems without incurring additional shipping costs. The combination of advanced features, reliable performance, and cost-saving benefits makes this analog input module an attractive option for various industrial applications.

Frequently Asked Questions (FAQ) for Siemens 6ES7134-6JD00-0CA1 Analog Input Module.

Q1: What type of sensors is the Siemens 6ES7134-6JD00-0CA1 compatible with?

A1: The Siemens 6ES7134-6JD00-0CA1 is compatible with RTD (Resistance Temperature Detector) sensors. It has four input channels that accept RTD signals, which are commonly used for accurate temperature measurement in industrial applications.

Q2: What is the purpose of the color code "CC00" on this module?

A2: The color code "CC00" simplifies installation by ensuring the module is correctly placed within the Simatic ET 200SP system. This helps prevent installation errors, reduces setup time, and provides the module correctly aligns with its corresponding base units, such as BU Type A0/A1.

Q3: How does the channel diagnostic feature work on this module?

A3: The channel diagnostic feature continuously monitors each input channel for faults or abnormalities, such as wiring issues or sensor malfunctions. If a problem is detected, it provides diagnostic information to the user, allowing for timely identification and correction of potential problems. This helps maintain system reliability and minimizes downtime.

Q4: What types of base units are suitable for use with this module?

A4: The Siemens 6ES7134-6JD00-0CA1 suits BU Type A0 and A1 base units. These base units are part of the Simatic ET 200SP system and provide the necessary connections and support for installing and operating the analog input module.

Q5: Can this module be used in environments with high electrical noise?

A5: Yes, the Siemens 6ES7134-6JD00-0CA1 is designed to operate reliably in industrial environments with high electrical noise. The module features isolated input channels that help protect against electrical interference, ensuring accurate signal measurement and data integrity.

Q6: What kind of warranty is provided for this module?

A6: The Siemens 6ES7134-6JD00-0CA1 has a 2-year MRO Electric and Supply warranty.

Q7: Is this module suitable for new installations and existing system upgrades?

A7: The 6ES7134-6JD00-0CA1 is suitable for new installations and upgrades to existing systems. Its compatibility with the Simatic ET 200SP range and easy integration into the modular setup makes it ideal for expanding or modernizing current automation systems.

Q8: Does the module require any particular configuration or software to operate?

A8: The Siemens 6ES7134-6JD00-0CA1 requires configuration within the Siemens automation software environment, such as the TIA (Totally Integrated Automation) Portal. This software allows users to set up and configure the module’s parameters according to their application's specific requirements.

Q9: Is there any shipping cost for ordering this module?

A9: MRO Electric and Supply offer free shipping for the Siemens 6ES7134-6JD00-0CA1. This makes it a cost-effective option for businesses purchasing high-quality automation components without incurring additional shipping fees.

Q10: What are the key benefits of using this analog input module?

A10: The key benefits of using the Siemens 6ES7134-6JD00-0CA1 include precise temperature measurement with RTD sensors, advanced diagnostics for proactive maintenance, compatibility with a wide range of base units, and easy integration into existing Simatic ET 200SP systems. Additionally, the module offers robust performance in electrically noisy environments and comes with a 2-year warranty and free shipping, providing excellent value for industrial applications.
