Siemens 6AV6645-0BC01-0AX0

Siemens 6AV6645-0BC01-0AX0

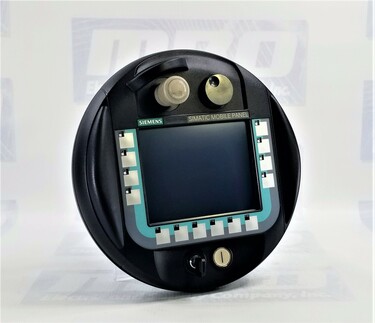

The Siemens 6AV6645-0BC01-0AX0 is a sophisticated industrial operator interface panel designed to enhance control and interaction within industrial automation processes. This specific model, known as the SIMATIC Mobile Panel 177 PN, boasts an array of features and functionalities that make it a valuable asset in various industrial environments. Below, we delve into the details of this panel, highlighting its specifications and capabilities.

Display and Design

The Mobile Panel 177 PN is equipped with a 5.7-inch STN display. This color display offers a resolution of 320 x 240 pixels and supports 256 colors, ensuring clear and vibrant visual representation. The panel's design aims to provide a comprehensive view of processes and systems, promoting effective monitoring and control.

Control Elements and Interaction

Control elements on the panel are designed to facilitate interaction and control. It features a combination of keys and touch capabilities. The panel boasts a membrane keyboard with user-definable label membrane keys, function keys (14 total, with 8 having LEDs), and numeric, alphanumeric, and hexadecimal keyboards. Furthermore, the panel incorporates specialized controls, including a stop button, an acknowledgment button, a key-operated switch, an illuminated push-button, and a handwheel. These elements are essential for both safety and efficient operation.

Processor and Memory

The Mobile Panel 177 PN is powered by a 32-bit RISC processor with a clock speed of 200 MHz. Its memory includes both Flash and RAM components, with 2,048 bytes available for user data. The panel also features an accumulator with a buffer battery that can provide up to 10 minutes of backup power, ensuring that critical data is preserved in case of power loss.

Interfaces and Connectivity

The panel is equipped with versatile connectivity options. It includes one RS 485 interface and one Ethernet interface (RJ45), enhancing its compatibility with various industrial communication protocols. It is designed to support the PROFINET IO protocol, further integrating it into industrial networks and systems.

Operating Systems and Configuration

The Mobile Panel 177 PN comes pre-installed with Windows CE as its operating system. It can be configured using Siemens' software tools such as WinCC flexible Compact (Version 2005 or higher) or TIA Portal (Version 11 to 14). These software options allow for easy setup, customization, and integration into existing industrial systems.

Languages and Functionality

The panel supports multiple languages for online/runtime display, with up to 5 languages available. It can accommodate up to 32 project languages. It offers a range of functionalities, including message indication, alarm systems with buffer and acknowledgment, process value display and input, recipe management, and more.

Security and Expandability

The panel provides security features through user groups and rights, with up to 50 user groups and 32 user rights available. The Mobile Panel 177 PN can be expanded through Siemens' Open Platform Program, providing flexibility for future enhancements and compatibility with other systems.

Mechanics and Environment

The panel's enclosure material is made of durable plastic. It features a compact design with an enclosure diameter of 245 mm and a depth of 58 mm. It can withstand falls from a height of up to 1.5 meters. It operates within an ambient temperature range of 0°C to 40°C, and it can be stored or transported within a range of -20°C to 60°C.

Frequently Asked Questions (FAQs) for Part Number 6AV6645-0BC01-0AX0

What is the model number of this Siemens HMI?

The model number is 6AV6645-0BC01-0AX0, part of the SIMATIC Mobile Panel range.

What type of product is the 6AV6645-0BC01-0AX0?

It is a Human-Machine Interface (HMI), specifically designed for use in automation and control applications.

What are the dimensions of the display?

The display has a diagonal size of 5.7 inches with a resolution of 320 pixels horizontally by 240 pixels vertically.

What type of display does this HMI have?

The display is an STN color display with dimmable backlighting for optimal visibility in various lighting conditions.

What type of touchscreen technology is used?

The touchscreen is analog and resistive, allowing for reliable touch input.

What is the average operational life of the backlighting?

The mean time between failures (MTBF) for the backlighting is 50,000 hours, ensuring long-lasting performance.

What power supply requirements does this device have?

The 6AV6645-0BC01-0AX0 requires a DC power supply and is designed with a connection box for easy integration.

What operating system does this HMI use?

It operates on Windows CE, providing a user-friendly interface and compatibility with various applications.

What protocols are supported by this device?

This HMI supports several protocols, including PROFINET IO, TCP/IP, and MODBUS, making it versatile for different automation setups.

How many function keys are available on this HMI?

The device features 14 function keys, with 8 keys equipped with LED indicators for enhanced usability.

What standards does the 6AV6645-0BC01-0AX0 comply with?

It complies with several standards, including CE, cULus, C-TICK, and SIBE, ensuring safety and reliability in various environments.

Is free shipping available for this product?

Yes, MRO Electric and Supply offers free shipping for the 6AV6645-0BC01-0AX0 HMI.

What is the processing capability of this device?

The HMI is powered by a RISC 32-bit processor running at 200 MHz, providing efficient performance for various tasks.

What color support does this display offer?

The display supports 256 colors, providing clear and detailed visuals for the user interface.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.
