Siemens 6AV6645-0AC01-0AX0

Siemens 6AV6645-0AC01-0AX0 Overview

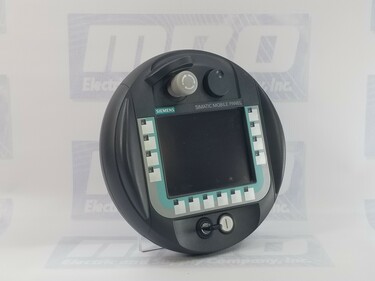

The Siemens 6AV6645-0AC01-0AX0 SIMATIC Mobile Panel 177 DP is a highly advanced and portable operator panel designed for versatile control and monitoring tasks in various industrial applications. It integrates a range of control elements and connectivity options, making it a comprehensive solution for modern industrial environments. Here is a detailed technical description of this device:

Display and Interface

1. Display Type: The panel features a 5.7-inch STN color display, providing a clear and user-friendly interface for operators.
2. Resolution and Colors: It offers a resolution of 320 x 240 pixels and supports 256 colors, ensuring crisp and clear visual information.
3. Backlighting: The display's backlight has a mean time between failure (MTBF) of 50,000 hours at 25°C, highlighting its reliability and longevity.
4. Touch Operation: The screen is an analog, resistive touchscreen, allowing for easy and intuitive interaction.

Control Elements

1. Keypad: The panel includes a membrane keyboard with user-definable label membrane keys, 14 function keys (8 with LEDs), system keys, a numeric keyboard, an alphanumeric keyboard, and a hexadecimal keyboard. Multi-key operation is supported, with the capability for two multi-key operations.
2. Special Operator Controls: This includes a stop button, acknowledgment button, key-operated switch, illuminated pushbutton, and a handwheel for precise control.

Power Supply and Processor

1. Supply Voltage: The power supply is designed via a connection box and operates on DC voltage.
2. Processor: It is equipped with a RISC 32-bit processor running at 200 MHz, ensuring efficient processing and fast response times.

Memory

1. Type and Capacity: The device uses Flash and RAM memory, offering 2,048 KB of space for user data.

Connectivity and Interfaces

1. Interfaces: It includes 1 x RS422 and 1 x RS485 interfaces, supporting a maximum transmission rate of 12 Mbit/s. However, it does not have USB, parallel, wireless, PC card, CF card, or multimedia card/SD card slots.
2. Industrial Ethernet and Protocols: The panel does not support Industrial Ethernet or PROFINET, but it does support PROFIBUS and MODBUS, among other bus systems.

Protection and Certifications

1. Degree of Protection: The device is rated IP65 according to EN 60529, indicating a high level of protection against dust and water.
2. Certifications: It has CE, cULus, C-TICK, and SIBE certifications, and is suitable for safety functions up to Performance level d according to ISO 13849-1.

Operating Conditions

1. Temperature: It operates between 0 °C and 40 °C, and can be stored or transported in temperatures ranging from -20 °C to 60 °C.
2. Relative Humidity: The panel can operate in up to 80% relative humidity.

Software and Configuration

1. Operating System: The panel runs on a pre-installed Windows CE operating system.
2. Configuration Software: It can be configured with WinCC flexible Compact Version 2005 or higher and is compatible with various versions of the TIA Portal.
3. Functionality: The panel supports up to 32 alarm classes, 2,000 messages (bit and analog), recipe management, and numerous image objects and dynamic objects.

Physical Characteristics

1. Materials: The enclosure's front is made of plastic, suitable for industrial environments.
2. Dimensions: The enclosure diameter is 245 mm with a depth of 58 mm.

Frequently Asked Questions (FAQs) for Siemens 6AV6645-0AC01-0AX0.

What is the Siemens 6AV6645-0AC01-0AX0 used for?

This device is an HMI (Human-Machine Interface) designed for industrial automation, specifically as part of the SIMATIC Mobile Panel 177 DP range.

What is the display size and resolution of this HMI?

It features a 5.7-inch display with a resolution of 320 x 240 pixels and supports 256 colors.

What is the expected lifespan of the backlight?

The MTBF (Mean Time Between Failures) for backlighting is 50,000 hours.

What type of keyboard and interface does it have?

It has a membrane keyboard and touchscreen design for user input.

What processor is used in this HMI?

The unit is powered by a 32-bit RISC processor running at 200 MHz.

What memory capacity does this device have?

It includes Flash and RAM with 2,048 KB of memory data storage.

What communication interfaces are available?

It supports 1 x RS422 and 1 x RS485 (up to 12 Mbit/s) interfaces for reliable data transmission.

What communication protocols are supported?

The device supports PROFIBUS and MODBUS protocols, making it suitable for industrial automation networks.

What is the protection rating of this HMI?

The IP65-rated enclosure ensures protection against dust and water ingress.

What certifications does the Siemens 6AV6645-0AC01-0AX0 have?

It is CE, cULus, C-TICK, and SIBE certified, ensuring compliance with international safety and quality standards.
