Siemens 6AV6644-8AB20-0AA1

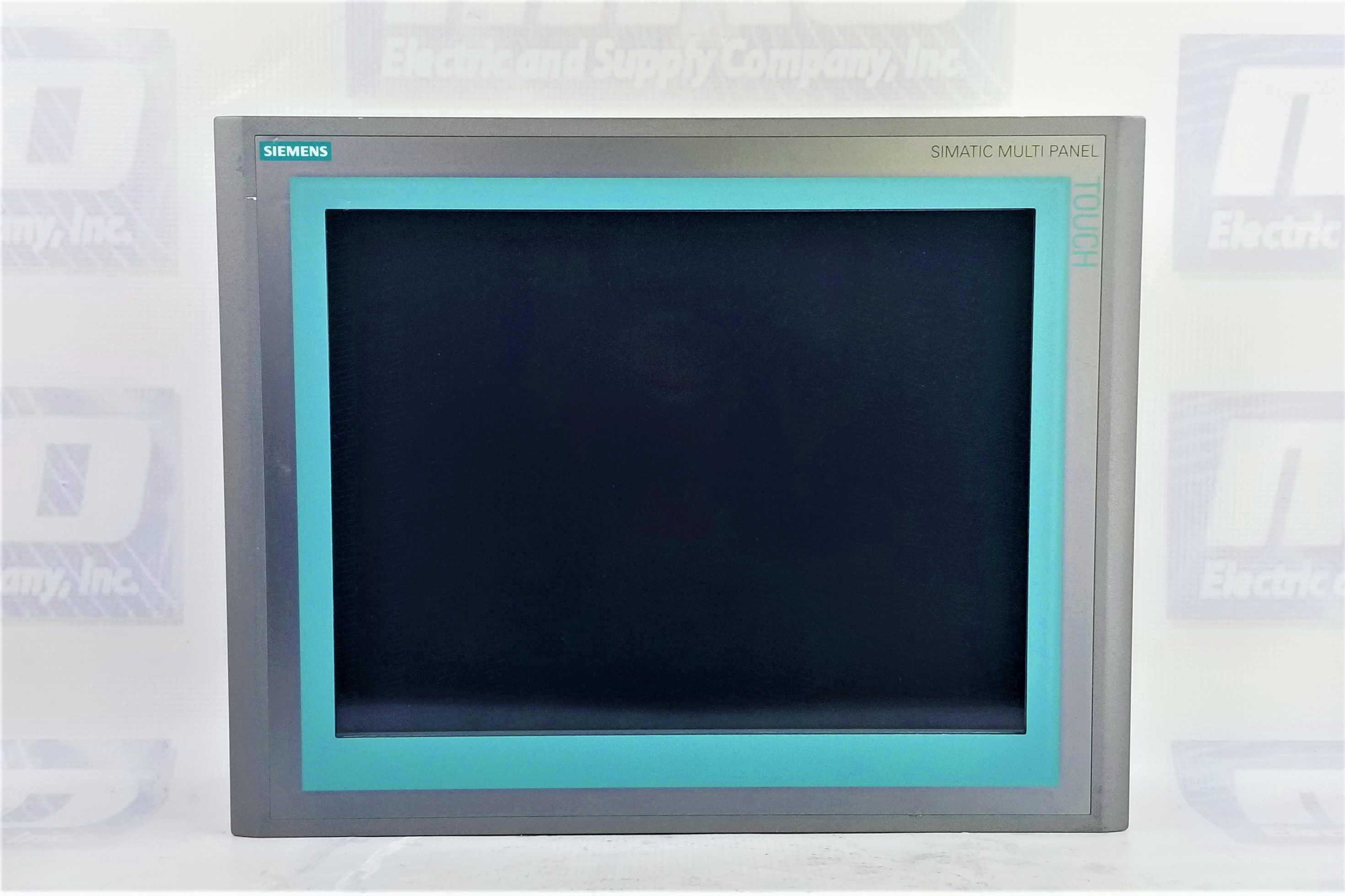

Siemens 6AV6644-8AB20-0AA1: High-Performance HMI for Industrial Applications

The Siemens Part Number 6AV6644-8AB20-0AA1 is a cutting-edge Human-Machine Interface (HMI) combining robust performance and versatile functionality. This advanced HMI is designed to meet the rigorous demands of industrial environments, providing users with a reliable, user-friendly interface for controlling and monitoring machinery and processes.

Display and Visual Performance

A standout feature of the Siemens 6AV6644-8AB20-0AA1 is its superior display capabilities. The HMI has a daylight-readable display, ensuring optimal visibility even in bright lighting conditions. This feature is critical in industrial settings where harsh lighting can compromise visibility. The display boasts an impressive brightness level of up to 800 cd/m², making it one of the brightest displays available. This high brightness, combined with a dimming range from 0 to 100%, allows users to adjust the display to the preferred brightness level, enhancing comfort and reducing eye strain.

High Contrast and Durability

In addition to its brightness, the 6AV6644-8AB20-0AA1 offers a high contrast ratio of up to 1000:1. This high contrast ensures that images and text on the screen are sharp and easily readable, which is essential for monitoring detailed processes and making precise adjustments. The display is also designed with durability in mind, featuring glass with a Mohs hardness rating of 7. This hardness makes the glass highly resistant to scratches and impacts, ensuring long-term reliability and maintaining display clarity over time.

Compliance with Industry Standards

The Siemens 6AV6644-8AB20-0AA1 adheres to several important industry standards, including AS/NZS 2064 (Class A), IEC 61131-2, and Class I, Division 2, Group A, B, C, D Tx. It also complies with Class I, Zone 2, Group IIC Tx. These certifications indicate that the HMI meets stringent safety and performance requirements, making it suitable in hazardous environments where explosive gases may be present. This compliance ensures the device can be deployed in various industrial applications without compromising safety.

Touch Operation and Mounting Flexibility

The HMI is designed for touch operation, providing an intuitive and responsive user interface. This touch functionality allows operators to interact with the system quickly and efficiently, streamlining workflow and reducing the time required to perform tasks. The 6AV6644-8AB20-0AA1 also offers flexible mounting options. It can be mounted horizontally in control cabinets or vertically at an angle between 0° and 90°. This versatility in mounting positions enables it to fit seamlessly into various control panel designs and ergonomic requirements.

Dimensions and Interface Options

The Siemens 6AV6644-8AB20-0AA1 HMI has 367+1 mm in width, 289+1 mm in height, and 105.5 mm in depth. These dimensions make it compact yet sufficiently large to provide a clear and comprehensive view of control processes. The HMI features multiple interface options, enhancing its connectivity and integration capabilities. It includes an HMI, RS 422/RS 485 interface (X10/IF 1B), PROFINET ports (X1 P1 and X1 P2), USB ports (X20 and X21), as well as line-in and microphone line-out ports. These interfaces ensure seamless communication with other devices and systems, facilitating comprehensive control and monitoring.

FAQs for Siemens 6AV6644-8AB20-0AA1 HMI

What type of display does the Siemens 6AV6644-8AB20-0AA1 HMI have?

The Siemens 6AV6644-8AB20-0AA1 HMI features a daylight-readable display with a brightness level of up to 800 cd/m², ensuring optimal visibility even in bright lighting conditions.

What is the brightness and dimming range of the display?

The display has a brightness of up to 800 cd/m² and a dimming range from 0 to 100%. This allows users to adjust the display brightness according to their preferences and environmental lighting conditions.

How durable is the display glass of the 6AV6644-8AB20-0AA1?

The Siemens 6AV6644-8AB20-0AA1's display glass has a Mohs hardness rating of 7, making it highly resistant to scratches and impacts. This ensures long-term reliability and clear visibility.

What standards and certifications does this HMI comply with?

The Siemens 6AV6644-8AB20-0AA1 complies with AS/NZS 2064 (Class A), IEC 61131-2, Class I, Division 2, Group A, B, C, D Tx, and Class I, Zone 2, Group IIC Tx. These certifications ensure it meets stringent safety and performance requirements and is suitable for use in hazardous environments.

What are the dimensions of the Siemens 6AV6644-8AB20-0AA1 HMI? The dimensions of the Siemens 6AV6644-8AB20-0AA1 are 367+1 mm in width, 289+1 mm in height, and 105.5 mm in depth. This makes it compact yet large enough for clear and comprehensive control interface visibility.

Can the 6AV6644-8AB20-0AA1 HMI be mounted in different positions?

Yes, the HMI can be mounted horizontally in control cabinets or vertically inclined at an angle between 0° and 90°. This flexibility allows it to fit seamlessly into various control panel designs and ergonomic requirements.

What types of interfaces are available on the Siemens 6AV6644-8AB20-0AA1?

The Siemens 6AV6644-8AB20-0AA1 includes multiple interfaces: HMI, RS 422/RS 485 interface (X10/IF 1B), PROFINET ports (X1 P1 and X1 P2), USB ports (X20 and X21), and line-in and microphone line-out ports. These interfaces ensure comprehensive connectivity and integration with other devices and systems.

How does the high contrast ratio benefit the user?

The high contrast ratio of up to 1000:1 ensures that images and text on the screen are sharp and easily readable. This is crucial for monitoring detailed processes and making precise adjustments, enhancing overall user efficiency and accuracy.

Is the Siemens 6AV6644-8AB20-0AA1 suitable for use in hazardous environments?

Yes, the HMI complies with safety standards such as Class I, Division 2, Group A, B, C, D Tx, and Class I, Zone 2, Group IIC Tx, making it suitable for use in hazardous environments where explosive gases may be present.

What type of operation does the HMI support?

The Siemens 6AV6644-8AB20-0AA1 supports touch operation, providing users with an intuitive and responsive interface. This touch functionality allows for quick and efficient interaction with the system, streamlining workflow and reducing task completion time.

What makes the Siemens 6AV6644-8AB20-0AA1 a reliable choice for industrial applications?

The HMI's robust construction, high visibility display, compliance with stringent industry standards, flexible mounting options, and multiple interfaces make it a reliable and versatile choice for various industrial applications. Its durability and advanced features ensure long-term, dependable performance in demanding environments.

How does the Siemens 6AV6644-8AB20-0AA1 enhance industrial operations?

By providing a clear, high-contrast, and bright display with touch operation, the Siemens 6AV6644-8AB20-0AA1 enhances industrial operations by facilitating precise control and monitoring. Compliance with safety standards and flexible mounting options enhance its utility in diverse industrial settings.
