Siemens 6AV6642-8BA10-0AA0

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

SIMATIC Touch Panel TP177B PN/DP

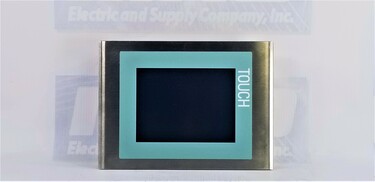

The 6AV6642-8BA10-0AA0 is a SIMATIC Touch Panel TP177B PN/DP with a stainless steel front, designed for industrial applications that demand robust performance and reliability. In this article, we delve into the features and specifications of this versatile human-machine interface (HMI) device.

Display and Interface

This HMI panel boasts a 5.7-inch STN (Super Twisted Nematic) display with a 256-color palette, providing clear and vibrant visuals. It supports touchscreen control, allowing users to interact with the interface intuitively. The panel also includes a numeric keyboard and supports alphanumeric and hexadecimal input.

Rugged Construction

The stainless steel front and continuous decorative film make the 6AV6642-8BA10-0AA0 highly resistant to corrosion and wear. It is rated with an IP66K degree of protection for the front, ensuring it can withstand harsh industrial environments, including exposure to dust and water.

Connectivity Options

This HMI panel is equipped with a range of connectivity options, including MPI (Multi-Point Interface), PROFIBUS DP, RS485, RS422, USB, and Ethernet (10/100). These interfaces facilitate seamless communication with various industrial devices and networks, making it a versatile choice for automation and control applications. It also features a printer interface and a slot for an MM card, enhancing its data storage capabilities.

Powerful Processor and Memory

At its core, the 6AV6642-8BA10-0AA0 features a 200 MHz ARM processor. It combines Flash and RAM memory, offering users 2,048 kbytes of space for storing user data. This ample memory ensures smooth operation and efficient data handling.

Operating Environment

The HMI panel is designed to operate reliably in a wide temperature range, from a minimum of 0°C to a maximum of 50°C. It can withstand storage and transportation temperatures ranging from -20°C to 60°C, making it suitable for diverse industrial settings.

Certifications and Approvals

This SIMATIC Touch Panel has received several certifications and approvals, including CE, GL, ABS, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, EX-Zone 2/22, Gost-R, C-TICK, NEMA 4, NEMA 4x, and NEMA 12. These certifications ensure compliance with safety and performance standards, making them suitable for use in hazardous areas, marine environments, and various industrial applications.

Software Compatibility

The 6AV6642-8BA10-0AA0 can be configured and programmed using various software tools, including WinCC flexible Compact, WinCC flexible Standard, WinCC flexible Advanced, WinCC Comfort (TIA Portal), WinCC Advanced (TIA Portal), and WinCC Professional (TIA Portal). This versatility allows users to tailor the panel to their specific application requirements.

The 6AV6642-8BA10-0AA0 SIMATIC Touch Panel TP177B PN/DP is a feature-rich HMI device designed for demanding industrial environments. Its robust construction, wide range of connectivity options, powerful processor, and software compatibility make it a reliable choice for automation, control, and monitoring applications. With certifications for safety and performance, this HMI panel is a versatile solution trusted by industries worldwide for its durability and functionality. Whether used in hazardous areas, marine settings, or conventional industrial applications, it excels in providing efficient and intuitive human-machine interaction.
