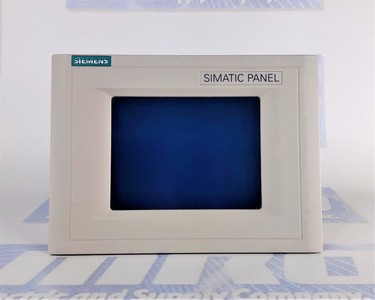

Siemens 6AV6545-0BB15-2AX0 HMI Touch Panel: Empowering Human-Machine Interaction

The Siemens 6AV6545-0BB15-2AX0 HMI (Human-Machine Interface) touch panel stands as a testament to the fusion of advanced technology and user-centric design. Crafted by Siemens, a pioneering force in the automation industry, this HMI touch panel bears the potential to revolutionize how humans interact with machines. As we delve into the intricacies of its specifications and features, the prowess of the 6AV6545-0BB15-2AX0 becomes apparent, shaping the future of human-machine interaction.

Exploring the 6AV6545-0BB15-2AX0:

The model number, 6AV6545-0BB15-2AX0, serves as a unique identifier for this Siemens HMI touch panel. Representing a culmination of engineering excellence, the panel is categorized as an HMI, which stands for Human-Machine Interface. This classification highlights its role in bridging the communication gap between humans and complex automated systems.

The touch panel's most distinctive attribute is its interactive display, which is designed to facilitate ease of use and intuitive interaction. The touchscreen feature enables users to interact directly with the interface, eliminating the need for complex hardware or external input devices. This particular touch panel is part of the TP170B series, boasting a mono-blue mode display based on STN (Super Twisted Nematic) technology.

Unveiling the Interface:

The TP170B Mono Blue Mode display offers a crisp and clear visual experience, ensuring that users can readily comprehend the information presented. The blue monochromatic interface not only aids visibility but also minimizes eye strain during extended usage, making it suitable for prolonged monitoring and control tasks.

The TP170B touch panel is equipped with versatile connectivity options, featuring an MPI/PROFIBUS DP interface. This capability allows seamless integration into industrial networks and communication protocols, enabling real-time data exchange and control across interconnected devices.

Enhanced Capabilities:

This Siemens HMI touch panel incorporates a CF (CompactFlash) card slot, allowing users to expand storage and facilitate data transfer. The CF card slot enhances the versatility of the panel, enabling it to handle a broader range of applications and accommodate varying data storage requirements.

Configurability is a key highlight of the 6AV6545-0BB15-2AX0 touch panel. It is compatible with ProTool/Lite, a software platform that enables users to design and customize the graphical user interface according to their specific needs. This flexibility empowers industries to tailor the HMI to their unique processes and workflows, thereby maximizing efficiency and usability.

Connectivity and Expansion:

The touch panel's connectivity extends to support external devices through its integrated printer/RS232 interface. This interface allows for seamless communication with printers and other RS232-compatible devices, facilitating the seamless transfer of data and reports.

Reliability and Assurance:

Backed by a 2-year warranty, the 6AV6545-0BB15-2AX0 HMI touch panel exemplifies a commitment to quality and durability. This warranty provides users with the confidence that the touch panel is designed to withstand the rigors of industrial environments and deliver consistent performance over an extended period.

Frequently Asked Questions (FAQs) for Siemens Part Number 6AV6545-0BB15-2AX0.

What is the model number of this Siemens HMI?

This Siemens HMI's model number is 6AV6545-0BB15-2AX0. It is part of the TP170B series, which is known for its reliability and performance in various industrial applications.

What type of display does the 6AV6545-0BB15-2AX0 have?

This HMI features an STN (Super Twisted Nematic) display with a mono-blue mode, which provides clear visibility in different lighting conditions.

What is the power supply requirement for this device?

The 6AV6545-0BB15-2AX0 operates on a 24 V DC power supply, with a current draw of 240 mA. This makes it suitable for low-voltage applications commonly found in industrial environments.

What type of touch panel does the HMI use?

The HMI is equipped with a touch screen panel, specifically the TP170B model, which allows for intuitive interaction and control through touch gestures.

What interfaces are available on this device?

The Siemens HMI supports MPI (Multi Point Interface) and PROFIBUS DP communication protocols, enabling seamless integration into existing control systems. It also includes an RS232 interface for printer connectivity.

Can this HMI be configured?

Yes, the 6AV6545-0BB15-2AX0 is configurable using ProTool/Lite, allowing users to customize the interface and functionalities to meet their needs.

Does the HMI support external storage?

Yes, this device includes a CF (Compact Flash) card slot, which allows for additional memory storage and facilitates easy data management and retrieval.

What warranty is provided with the 6AV6545-0BB15-2AX0?

The Siemens 6AV6545-0BB15-2AX0 comes with a 2-year MRO Electric and Supply warranty, ensuring reliability and customer support. Additionally, free shipping is included with the purchase.

Is the Siemens HMI suitable for harsh industrial environments?

Yes, the 6AV6545-0BB15-2AX0 is designed to withstand the demands of industrial applications. Its robust construction and reliable interface make it suitable for various manufacturing and automation tasks.

How does the HMI handle printing tasks?

The 6AV6545-0BB15-2AX0's RS232 interface allows for easy connection to printers, enabling users to print reports, logs, and other relevant data directly from the HMI.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.
