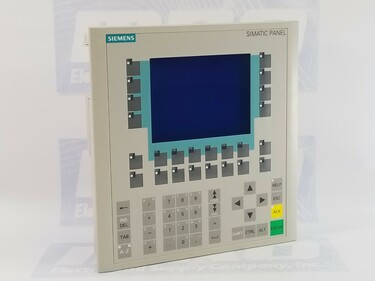

Siemens 6AV6542-0BB15-2AX0

Siemens 6AV6542-0BB15-2AX0 Overview

The Siemens 6AV6542-0BB15-2AX0, part of the SIMATIC HMI series, is a versatile and reliable operator panel designed to facilitate human-machine interaction in industrial environments. This OP170B model offers exceptional control, visualization, and communication capabilities, making it an ideal choice for various automation applications. Its compact design, comprehensive features, and user-friendly interface ensure optimal performance in demanding conditions.

Display and Interface

The Siemens OP170B features a 5.7-inch STN LCD color display with four blue levels and a screen resolution of 320 x 240 pixels. The backlighting has an impressive 50,000-hour MTBF at 25°C, ensuring long-term visibility and reliability. Navigation and control are simplified through a robust membrane keyboard featuring 24 function keys (18 with LEDs), 35 system keys, and numeric, alphanumeric, and hexadecimal keyboards. This allows operators to execute commands with ease and efficiency.

Connectivity and Communication

Equipped with multiple interfaces, the 6AV6542-0BB15-2AX0 supports diverse communication protocols to seamlessly integrate with industrial systems. The device includes 2 RS232 ports, 1 RS422, and 1 RS485 interface with transmission rates up to 12 Mbit/s. It is compatible with various PLCs, including Siemens S7-200, S7-300/400, and S5, and third-party controllers from Allen Bradley, Mitsubishi, and Modicon. Additionally, it features an MPI/PROFIBUS-DP interface for efficient data exchange.

Performance and Memory

Powered by a 32-bit RISC processor running at 66 MHz, the panel ensures smooth operation even in complex processes. It includes 768 kB of user memory, expandable via a CF card slot. The device supports up to 1,000 variables, 2,000 messages, and 100 configurable images, allowing comprehensive data processing and visualization.

Environmental and Physical Specifications

Designed for harsh industrial environments, the Siemens 6AV6542-0BB15-2AX0 offers a front protection rating of IP65 and a rear rating of IP20. It operates within temperatures of 32°F to 113°F (0°C to 45°C) and can be stored or transported between -4°F to 140°F (-20°C to 60°C). The panel measures 240 mm (W) x 252 mm (H) x 45 mm (D) and weighs approximately 0.9 kg, making it compact for various mounting options.

Configuration and Software

The device is configurable with ProTool/Lite Version 5.2 SP2 or higher and WinCC flexible Compact Version 2004 or above. It supports up to 32 projects and five online languages, ensuring global applicability. Its software includes alarm management with 2,000 messages, recipe management with up to 100 recipes, and data logging capabilities.

Certifications and Warranty

The Siemens 6AV6542-0BB15-2AX0 is certified by CE, UL, CSA, and FM Class I Div. 2, ensuring compliance with international safety and performance standards. MRO Electric and Supply backs the product with a 2-year warranty and offers free shipping.

Frequently Asked Questions (FAQ)

What is the primary function of the Siemens 6AV6542-0BB15-2AX0?

The 6AV6542-0BB15-2AX0 is an operator interface panel that enables operators to monitor, control, and interact with industrial machines and processes.

What communication protocols are supported?

It supports MPI, PROFIBUS-DP, RS232, RS422, and RS485 communication protocols, ensuring compatibility with various PLCs, including Siemens and third-party brands.

Can the memory be expanded?

The device has a CF card slot to expand the user memory beyond the standard 768 kB.

What is the display size and resolution?

The panel features a 5.7-inch STN LCD with a 320 x 240-pixel resolution and supports four blue levels for clear visual representation.

Is the device suitable for harsh environments?

Absolutely. With IP65 front protection and operational temperature tolerance from 32°F to 113°F, it is designed to withstand demanding industrial environments.

What software is required for configuration?

Configuration is performed using ProTool/Lite (Version 5.2 SP2 or higher) or WinCC flexible Compact Version 2004 or later.

How is the device mounted?

It is designed for vertical mounting with a maximum 35° inclination without external ventilation.

What is the warranty period?

The device has a 2-year MRO Electric and Supply warranty, ensuring peace of mind and reliable support.

For more information or to place an order, contact MRO Electric and Supply today and benefit from free shipping and exceptional customer service.
