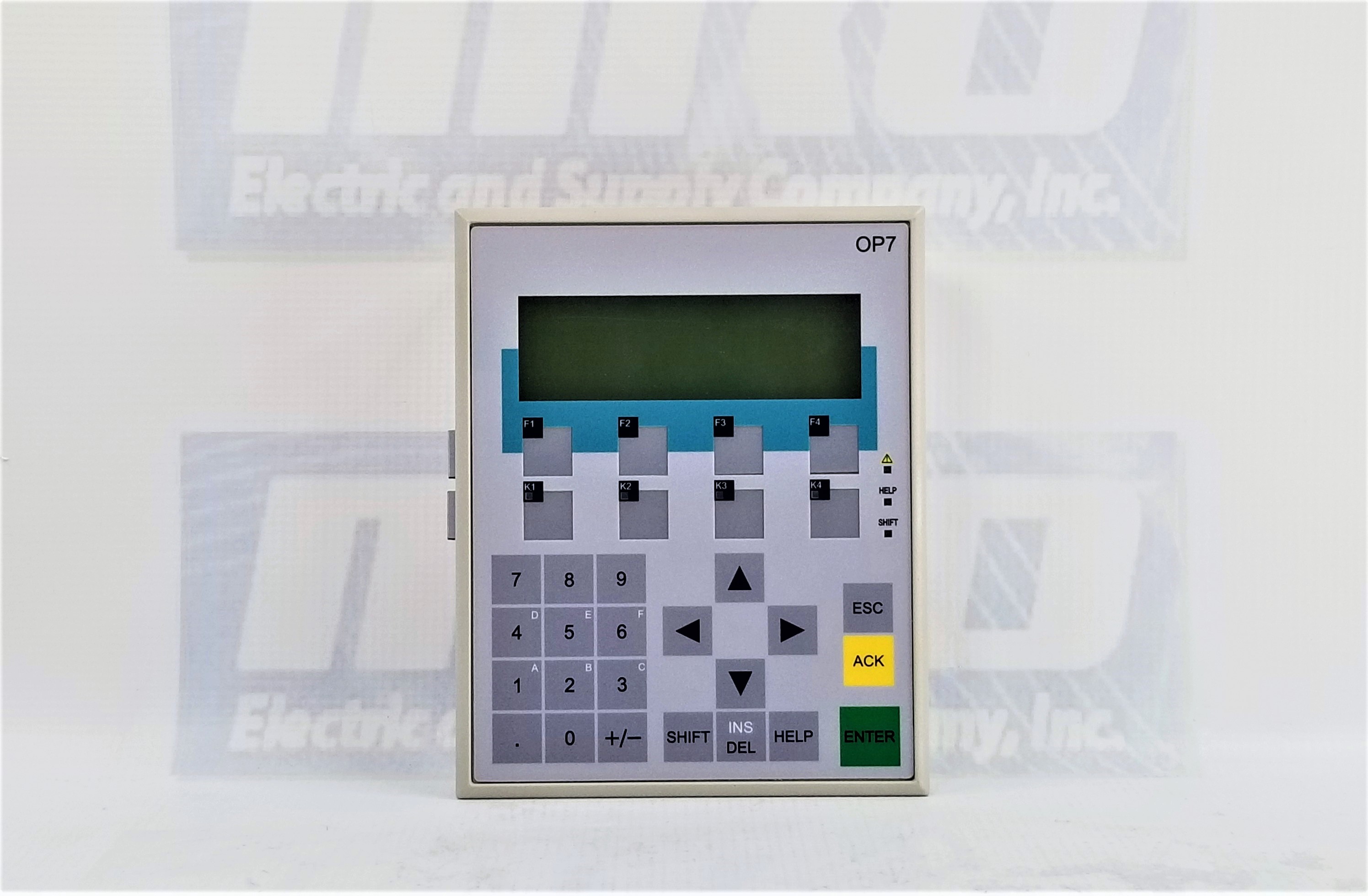

Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12

The Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12 is a sophisticated control interface designed to streamline operations across various Siemens platforms, including SIMATIC S5, 505, S7, and M7. Equipped with native drivers and PROFIBUS-DP communication at 12 MBaud, this operator panel is a versatile solution for industrial automation tasks.

Intuitive Display and Controls

The OP7/DP12 features a sharp LC display in black-and-white color, offering clear visibility for operators. With four lines and 20 characters per line, operators can access crucial information at a glance. The LED backlighting ensures reliability, with a mean time between failures (MTBF) of 100,000 hours, while the membrane keyboard with user-definable label keys and eight function keys provides intuitive control.

Versatile Connectivity and Installation

The OP7/DP12 supports various connection types, including TTY, RS232, RS422, and RS485 interfaces, with a maximum transmission rate of 12 Mbit/s. Its IP65-rated front panel and vertical mounting position make it suitable for harsh industrial environments, with a maximum permissible inclination angle of 90 degrees without external ventilation.

Reliable Performance and Memory

Powered by an X86 processor and featuring Flash/RAM, the OP7/DP12 ensures reliable performance and efficient data storage. With 128 kbyte of memory available for user data, operators can easily store essential information and configurations.

Comprehensive Features and Standards

The OP7/DP12 includes an info LED and meets IP65 standards at the front, protecting against dust and water ingress. It is certified by CE, GL, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, and EX zone 2/22, ensuring compliance with international safety and quality standards.

Flexible Configuration and Software Compatibility

With message indicators and support for ProTool / Lite Version 2.51 or higher configuration software (to be ordered separately), the OP7/DP12 offers flexibility and customization. While it doesn't include additional software components, its dimensions of 144mm (width) x 180mm (height) x 38.5mm (depth) ensure seamless integration into existing control systems.

Frequently Asked Questions about the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12

Q: What is the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12?

A: The Siemens 6AV3607-1JC30-0AX1 is an operator panel designed for industrial automation settings. It provides operators with a user-friendly interface for monitoring and controlling Siemens platforms such as SIMATIC S5, 505, S7, and M7.

Q: What are the key features of the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12?

A: The OP7/DP12 features a 4-line, 20-character per-line LC display with LED backlighting for clear visibility. It includes membrane keys with user-definable labels and function keys for intuitive control. The panel supports various connection types, has an X86 processor, and meets IP65 standards for protection against dust and water ingress.

Q: What are the connectivity options of the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12?

A: The OP7/DP12 supports TTY, RS232, RS422, and RS485 interfaces with a maximum transmission rate of 12 Mbit/s. It also includes an info LED and complies with international safety and quality standards, including CE, GL, BV, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus, and EX zone 2/22 certifications.

Q: Is the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12 easy to install and configure?

A: The OP7/DP12 is designed for easy installation and configuration. It supports vertical mounting and has intuitive controls for user-friendly operation. It also includes support for ProTool / Lite Version 2.51 or higher configuration software for additional customization.

Q: What industries is the Siemens 6AV3607-1JC30-0AX1 Operator Panel OP7/DP12 suitable for?

A: The OP7/DP12 is suitable for a wide range of industries, including manufacturing, automotive, pharmaceuticals, and more, where precise monitoring and control of Siemens platforms are required. Its rugged design and compliance with industry standards make it suitable for harsh industrial environments.
