Siemens 6AV2125-2GB23-0AX0

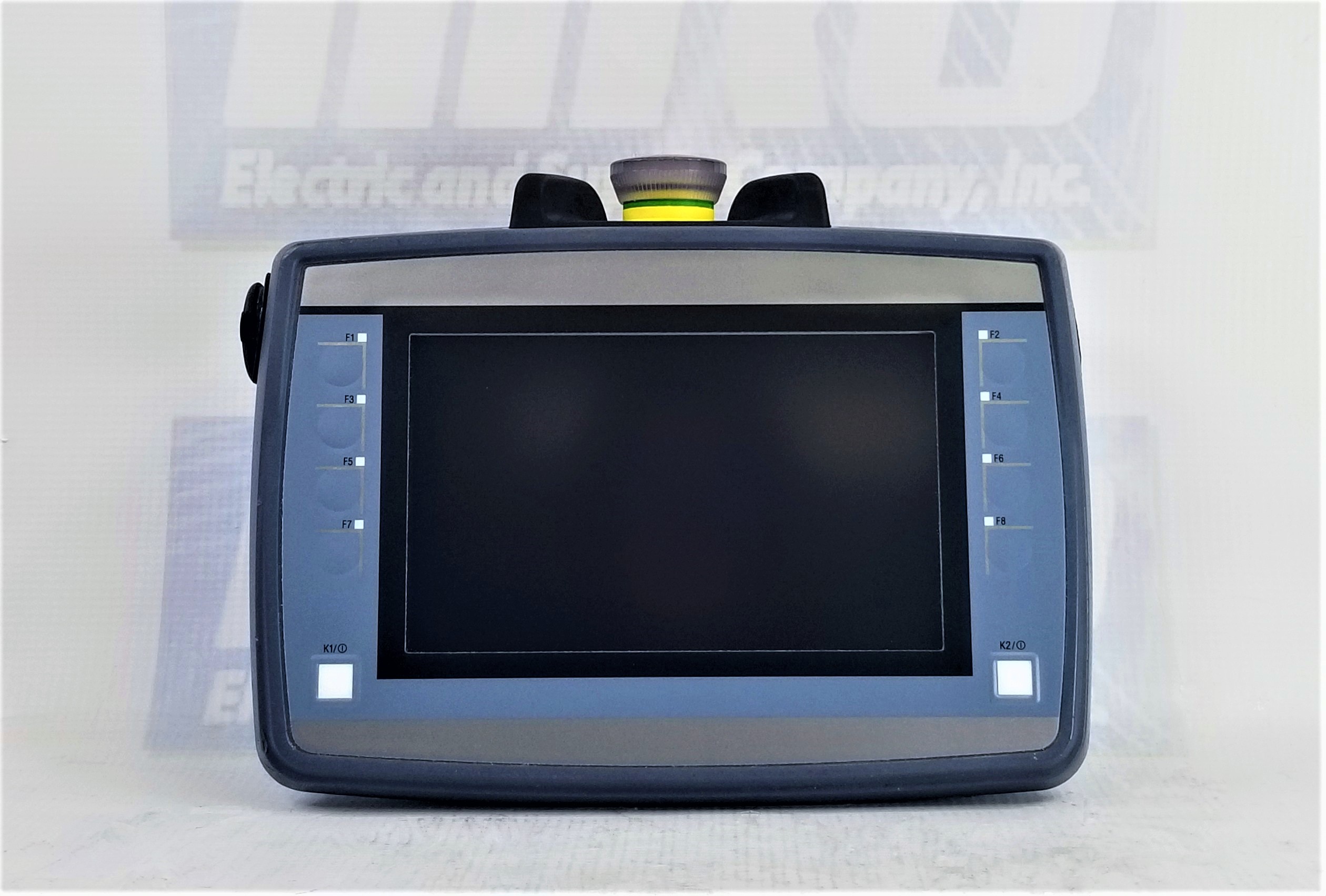

Technical Description of Schneider Electric 6AV2125-2GB23-0AX0 SIMATIC HMI KTP700F Mobile

General Information

The product designated as KTP700F Mobile is a high-end Human-Machine Interface (HMI) device offered by Schneider Electric.

Display Specifications

• Type and Size: 7.0" TFT widescreen display, LED-backlit
• Resolution: 800x480 pixels
• Colors: Supports up to 16,777,216 colors
• Backlight Features:
• MTBF (Mean Time Between Failures) at 25°C is 50,000 hours
• Adjustable backlight dimming ranging from 0-100%

Control Elements

• Function Keys: Total of 8, all with LEDs
• Keyboard Fonts: Numeric and alphanumeric through onscreen keyboards.
• Touch Operations:
• Single touch screen: Yes
• Multi-touch screen: No

Special Operator Controls

• Stop button, Emergency stop button, Acknowledgment button (3-stage), Key-operated switch, and an Illuminated pushbutton are all included.

Memory and Processor

• Processor: ARM type
• Memory: Flash and RAM with 12 Mbyte available for user data

Power and Supply

• Voltage: Operates on DC with a rated value of 24 V (range: 19.2V to 28.8V)
• Current Consumption: 350 mA (rated)
• Power: Typical active power input is 8.5W

Interfaces and Protocols

• Comes equipped with industrial Ethernet, PROFINET, USB 2.0, and an SD card slot.
• Supports multiple protocols including TCP/IP, DHCP, SNMP, HTTP, HTTPS, and more.

Operating System and Configuration

• OS: Pre-installed with Windows CE
• Configuration Software: Compatible with WinCC Comfort (TIA Portal), WinCC Advanced (TIA Portal), and WinCC Professional (TIA Portal)

Protection and Standards

• Protection: IP65 all-round
• Approvals: CE mark, cULus, RCM, and suitability for marine application with several marine approvals including Germanischer Lloyd (GL), American Bureau of Shipping (ABS), and more.

Ambient Conditions

• Temperature: Operational between 0°C to 45°C. Storage temperatures range between -20°C to 60°C.
• Humidity: Max operational humidity is 90%.

Functionality under WinCC (TIA Portal)

• Offers extensive functionalities including libraries, web browser, PDF viewer, and more. It can display up to 32 online languages and supports 32 project languages.

Security and Transfer

• Features robust security with up to 50 user groups, 32 user rights, and 50 users. It supports password import/export and SIMATIC Logon. Transfer options include Ethernet and external storage medium backup/restore.

Process Coupling

• It supports an extensive range of devices including the S7 series, LOGO!, WinAC, SINUMERIK, Allen Bradley (via EtherNet/IP), Mitsubishi (via MC TCP/IP), and more.

Materials and Dimensions

• Material: The enclosure material for the front is plastic.
• Dimensions: Width of 248.4 mm and height of 194.9 mm.

FAQ: Schneider Electric 6AV2125-2GB23-0AX0 SIMATIC HMI KTP700F Mobile

1. What is the screen size of the KTP700F Mobile?

• The SIMATIC HMI KTP700F Mobile boasts a screen size of 7 inches with a TFT widescreen display.

2. What is the resolution of the display?

• The display has a resolution of 800 pixels horizontally and 480 pixels vertically.

3. Does it support touch operation?

• Yes, the device supports touch operation but is not designed as a multi-touch screen.

4. How many function keys are there?

• The KTP700F Mobile has 8 function keys, all of which are equipped with LEDs.

5. What type of memory does the device have?

• It contains both Flash and RAM. There are 12 M bytes of memory available for user data.

6. What are the communication interfaces on the device?

• The device comes with one industrial Ethernet interface, one PROFINET interface, one USB 2.0 interface, and one SD card slot.

7. Which protocols are supported?

• The device supports several protocols including PROFINET, PROFIsafe, EtherNet/IP, MODBUS, and various Ethernet-based protocols like TCP/IP, DHCP, SNMP, etc.

8. Is there any wireless communication capability?

• No, this model does not support WLAN 802.11 or Bluetooth.

9. Can the backlight be adjusted?

• Yes, the backlight is dimmable and can be adjusted from 0-100%.

10. What software is compatible with configuration?

• Configuration is supported by WinCC Comfort (TIA Portal), WinCC Advanced (TIA Portal), and WinCC Professional (TIA Portal).

11. What is the operating temperature range?

• The device can operate between 0 °C to 45 °C.

12. Does it come with any marine approval?

• Yes, it has approvals from Germanischer Lloyd (GL), American Bureau of Shipping (ABS), Det Norske Veritas (DNV), Lloyds Register of Shipping (LRS), and Nippon Kaiji Kyokai (Class NK).

13. What is the power supply for this device?

• The KTP700F Mobile operates on a DC supply with a rated value of 24V.

14. Are there any safety features built-in?

• The device comes with a stop button, an emergency stop button, an acknowledgment button, and a key-operated switch for enhanced safety.

15. What is the protection rating of the device?

• The device is rated with IP65 protection all-round, making it dust-tight and protected against water jets from any direction.

16. Can I use an external USB or SD card with this device?

• Yes, it has a USB interface and an SD card slot that can be used for expanding memory or backup/restore functions.

17. What are the dimensions of the device?

• The width of the housing front is 248.4 mm, and the height is 194.9 mm.

18. Is there an integrated camera?

• No, this model does not come with an integrated camera.

19. What type of enclosure material is used for the front?

• The enclosure material for the front is plastic.

20. Can I use this device in hazardous areas?

• This specific model is not certified for use in ATEX or IECEx hazardous zones.
