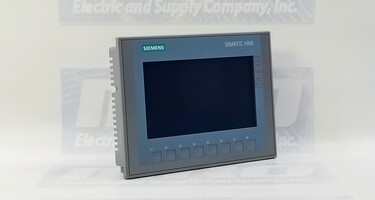

Siemens 6AV2123-2GA03-0AX0 HMI: SIMATIC HMI KTP700 Basic

The Siemens 6AV2123-2GA03-0AX0, also known as the SIMATIC HMI KTP700 Basic, is a versatile and reliable Human Machine Interface (HMI) designed for monitoring and controlling industrial processes. This HMI is part of the SIMATIC range and is widely used across industries for its compact size, robust design, and efficient interface. It combines ease of use with advanced connectivity options, making it an ideal solution for automating various operations within production lines, manufacturing, and process environments.

Display and Interface Quality

The KTP700 Basic features a 7-inch TFT widescreen display with a resolution of 800 x 480 pixels, providing a clear and vivid visualization of data and controls. This high-quality screen makes it easy for operators to view, process information, and navigate through settings, even in diverse lighting environments. The LED backlighting enhances visibility and has a Mean Time Between Failures (MTBF) of 20,000 hours, ensuring long-lasting performance with minimal downtime. Additionally, the HMI supports touch functionality, allowing operators to interact with the display directly for efficient control and monitoring.

Functional Keys and Control Options

The KTP700 Basic includes eight function keys, enabling users to set up custom shortcuts to frequently used functions or operations. This combination of a touchscreen interface and function keys makes the HMI flexible and suitable for different operator preferences. The touch screen is highly responsive, ensuring precise control and easy navigation, while the function keys provide quick access to essential functions, adding to the HMI’s overall usability.

Power Efficiency and Memory

With a power consumption of just 5.5 W, the KTP700 Basic is an energy-efficient device, making it ideal for continuous operation without incurring significant energy costs. It requires a 24 V DC power supply and includes 10 MB of data memory, split between Flash and RAM, providing sufficient storage for essential data, settings, and configurations. Combining efficient power usage and ample memory ensures stable, long-term performance in demanding industrial environments.

Connectivity and Protocol Compatibility

The KTP700 Basic has multiple interfaces, including RS 485, USB, and RS 422, making it highly adaptable for various industrial communication needs. It supports several communication protocols, including PROFIBUS, MPI, and MODBUS, enhancing its compatibility with various industrial systems and devices. This extensive connectivity allows seamless integration into existing systems, ensuring flexibility in automation setups and simplifying installation.

Mounting Flexibility and Protection

Designed for versatile mounting, the KTP700 Basic can be installed horizontally or vertically with a maximum mounting angle of 35 degrees, allowing for ergonomic placement in control cabinets or operator stations. The HMI offers IP65 protection on the front and IP20 protection on the rear, providing solid protection against dust, water, and accidental contact with internal components. The IP65 rating on the front ensures it is suitable for harsh environments, while the IP20 rating on the rear is ideal for standard control cabinet installations.

Frequently Asked Questions (FAQ)

1. What is the display resolution of the KTP700 Basic?

The KTP700 Basic features a 7-inch TFT display with an 800 x 480 pixels resolution, providing precise and detailed visuals ideal for industrial applications.

2. How long does the backlighting last?

The LED backlighting has a Mean Time Between Failures (MTBF) of 20,000 hours, ensuring reliable performance over extended periods.

3. What power supply is required for the KTP700 Basic?

The KTP700 Basic operates on a 24 V DC power supply, making it compatible with typical industrial power standards.

4. What communication protocols does the KTP700 Basic support?

This HMI supports multiple communication protocols, including PROFIBUS, MPI, and MODBUS, allowing integration with various industrial systems.

5. Can the KTP700 Basic be mounted both horizontally and vertically?

Yes, it is designed for both horizontal and vertical mounting and has a maximum tilt angle of 35 degrees for flexible installation.

6. What level of protection does the KTP700 Basic offer?

The KTP700 Basic has IP65 protection on the front, making it resistant to dust and water, and IP20 protection on the rear, which is ideal for standard control cabinet environments.
