Siemens 6AU1445-0AA00-0AA0

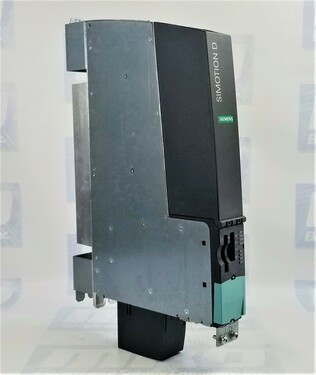

Siemens 6AU1445-0AA00-0AA0 Motion Controller

The Siemens 6AU1445-0AA00-0AA0 is a high-performance motion control system designed for demanding industrial automation applications. As part of the SIMOTION D445 series, this programmable motion controller integrates powerful processing capabilities with multiple communication interfaces to deliver seamless control over various axes in complex motion control systems. Its robust design and wide range of features make it an ideal choice for industries requiring precise and efficient motion control solutions.

Performance and Motion Control Capabilities

The SIMOTION D445 motion controller supports up to 64 axes, making it suitable for large-scale automation systems. With a minimum interpolator cycle clock of 0.5 ms, servo cycle clock of 0.5 ms, and PROFIBUS cycle clock of 1 ms, the unit ensures rapid and precise control over motion sequences. Additionally, it supports alternative control modes, including vector and V/f control, providing flexibility in drive applications.

Integrated Drive Control and Connectivity

This motion controller has six DRIVE-CLiQ interfaces, allowing seamless integration with Siemens SINAMICS S120 drive systems. It also includes two PROFIBUS and two Industrial Ethernet interfaces, facilitating high-speed communication across industrial networks. The device supports equidistant and isochronous communication and can be configured as a master or slave in a network.

Memory and Storage Capacity

The Siemens 6AU1445-0AA00-0AA0 provides ample memory resources to support complex automation tasks. It features 96 MB of RAM for work memory, an additional 20 MB of RAM for Java applications, and 47 MB of RAM disk storage. Additionally, it includes 364 kB of retentive memory and 300 MB of persistent memory stored on a compact flash (CF) card, ensuring reliable data retention and application execution.

Power and Environmental Specifications

Designed for industrial environments, the motion controller supports a DC supply voltage range of 20.4 V to 28.8 V, with a typical power consumption of 48 W. It operates within an ambient temperature range of 0°C to 55°C, with storage and transport temperature tolerances from -40°C to 70°C. The device can function at altitudes up to 5000 meters, though temperatures must be adjusted above 2000 meters.

Digital Inputs and Outputs

The controller includes eight digital inputs and eight configurable digital I/O ports. The digital inputs operate at a rated voltage of 24 V, with a fast input delay time of 50 µs for signal activation. The digital outputs are rated for 24 V operation with a maximum current-carrying capacity of 500 mA per output.

Protection and Compliance

With an IP20 protection rating, the Siemens 6AU1445-0AA00-0AA0 is suitable for installation in control cabinets and protected industrial environments. The unit meets international safety and performance standards, including cULus certification for the USA and Canada and RCM compliance for Australia. It is backed by a two-year MRO Electric and Supply warranty, ensuring industrial users' reliability and peace of mind.

Frequently Asked Questions

What is the maximum number of axes supported by the Siemens 6AU1445-0AA00-0AA0?

The controller supports up to 64 axes, making it ideal for complex multi-axis motion control applications.

What communication interfaces are included in this motion controller?

It includes six DRIVE-CLiQ interfaces, two Industrial Ethernet ports, two PROFIBUS interfaces, and two USB ports.

Can the controller be used with SINAMICS S120 drives?

It is designed for seamless integration with Siemens SINAMICS S120 drive systems using DRIVE-CLiQ connectivity.

What is the rated input voltage for the Siemens 6AU1445-0AA00-0AA0?

The device operates on a 24 V DC supply of 20.4 V to 28.8 V.

How is memory allocated in the Siemens 6AU1445-0AA00-0AA0?

The controller has 96 MB of RAM, 20 MB additional RAM for Java applications, 47 MB RAM disk, 364 kB retentive memory, and 300 MB of persistent CF memory.

What is the protection rating of this motion controller?

It has an IP20 protection rating, making it suitable for installation in controlled environments.

What is the power consumption of the Siemens 6AU1445-0AA00-0AA0?

The typical power loss is around 48 W during operation.

Does this unit include a cooling system?

Yes, a fan/battery module is included in the scope of delivery to ensure optimal thermal management.

What are the operating temperature and altitude limits?

The controller operates between 0°C to 55°C and can function at altitudes up to 5000 meters, with temperature adjustments required above 2000 meters.

What warranty coverage is provided?

It comes with a two-year MRO Electric and Supply warranty and free shipping.

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Controllers from other manufacturers such as FANUC and Yaskawa.
