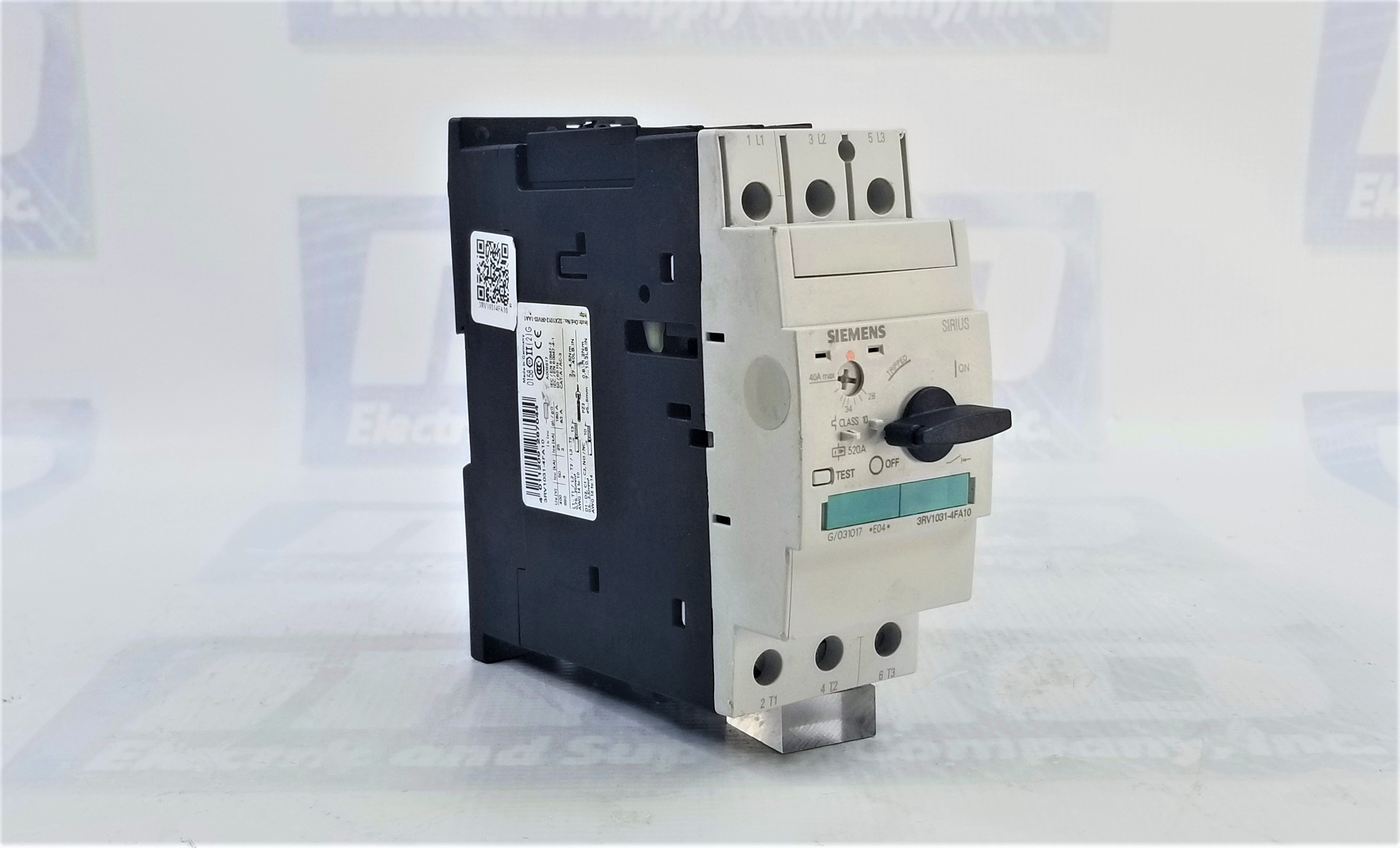

Siemens 3RV1031-4FA10

Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry Contactors from other manufacturers such as FANUC and Yaskawa.

Siemens 3RV10314FA10

The 3RV10314FA10 is part of the Siemens SIRIUS series of motor starter protectors, designed to provide comprehensive motor protection in industrial applications. This particular model, the 3RV10314FA10, offers a range of features and specifications that make it a versatile and reliable choice for safeguarding electric motors.

Key Features

1. ON/OFF Rotary Handle with Lockout: The 3RV10314FA10 is equipped with an ON/OFF rotary handle that includes a lockout feature. This allows for easy manual control of the motor and ensures that the motor remains desired without the risk of accidental changes.
2. Visible Trip Indication: The motor starter protector includes a visible trip indication, which is crucial for quickly identifying when the protection system has detected an issue or fault. This feature aids in timely troubleshooting and maintenance.
3. Adjustment Dial for Motor FLA: The device includes an adjustment dial that allows users to set it to the Full Load Amperes (FLA) of the motor it is protecting. This customization ensures that the protector is calibrated to the specific motor it is connected to, optimizing motor protection.
4. Class 10 Overload Trip Characteristics: The 3RV10314FA10 operates with Class 10 overload trip characteristics. This means it responds rapidly to overcurrent conditions to prevent damage to the motor.
5. Short Circuit Trip: In the event of a short circuit, this motor starter protector can trip at 12 times the maximum setting of the FLA adjustment dial. This provides robust protection against short circuits, minimizing the risk of damage.
6. Short Circuit Current Rating: The protector is rated to handle short circuit currents effectively. It is designed to function reliably even in environments with fluctuating currents, upholding safety and motor integrity.
7. Ambient Compensated: The 3RV10314FA10 offers ambient compensation for temperatures up to 140°F (60°C). This feature ensures that the protector's performance remains consistent even in high-temperature environments, making it suitable for a wide range of industrial settings, especially where side-by-side mounting is required.
8. Phase Loss Sensitivity: The protector includes phase loss sensitivity, detecting situations where a phase is lost in the motor's power supply. This feature helps prevent motor damage due to phase imbalances.
9. Test Trip Function: For diagnostic and testing purposes, the protector features a test trip function, allowing users to verify its operation without the need for an actual fault occurrence.

Applications

The 3RV10314FA10 motor starter protector is designed for a variety of industrial applications where motor protection is paramount. Some of the typical applications include:

• Conveyor Systems: Protecting motors that drive conveyor belts in manufacturing and logistics operations.
• Pumps and Fans: Safeguarding motors used in water pumps, ventilation fans, and HVAC systems.
• Manufacturing Machinery: Ensuring the reliability of motors in manufacturing equipment, such as CNC machines and presses.
• Material Handling Equipment: Protecting motors in forklifts, cranes, and material handling machinery.
• Industrial Automation: Providing motor protection in automated manufacturing and assembly lines.

Conclusion

The 3RV10314FA10 from Siemens is a versatile and reliable motor starter protector designed to ensure safe and efficient operation of electric motors in various industrial applications. With features like adjustable settings, short circuit protection, and visible trip indication, it offers comprehensive motor protection and contributes to the reliability and longevity of motors in industrial environments. Its compatibility with a wide range of applications makes it a valuable component in industrial control systems.
