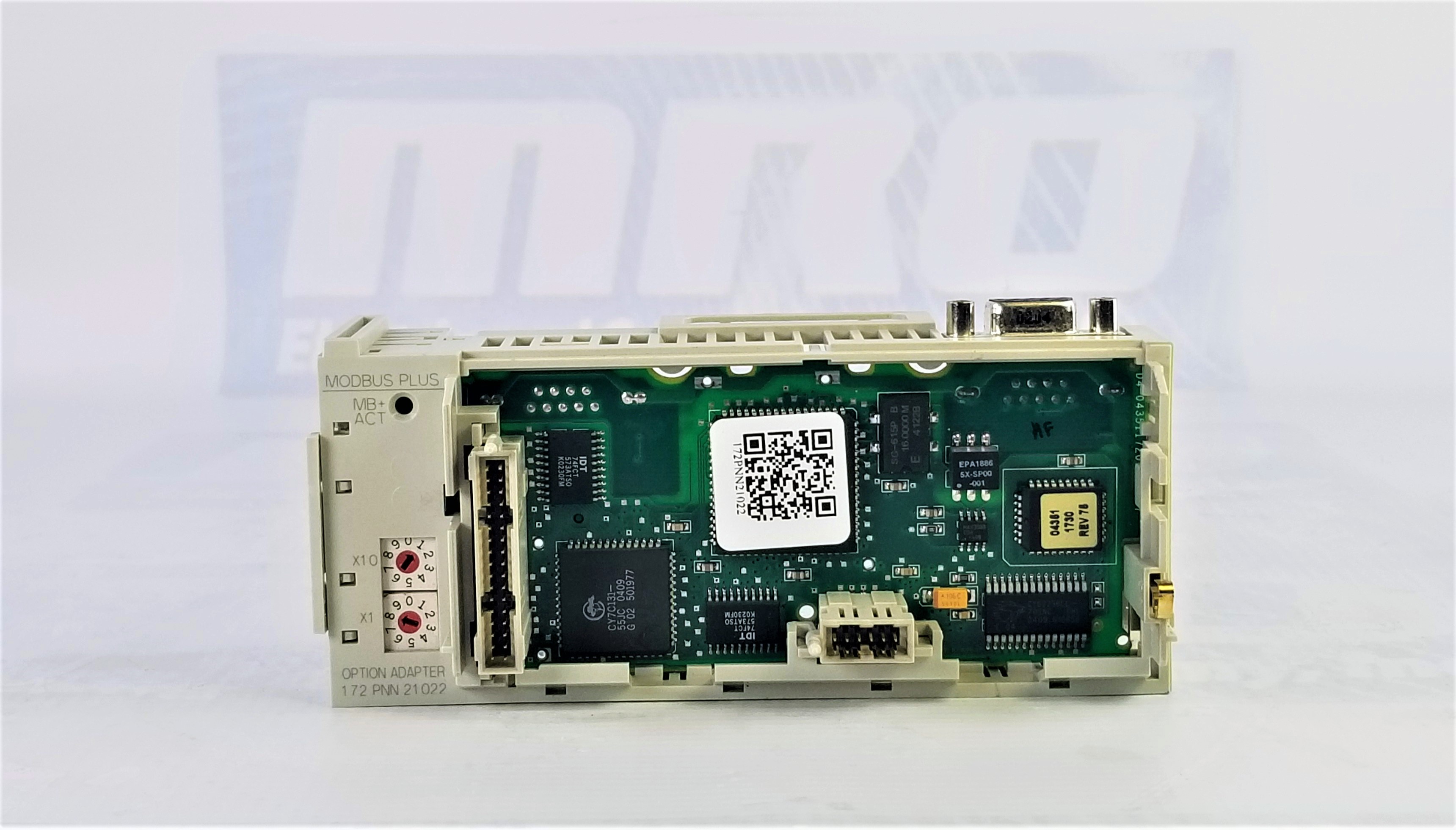

MODICON COMMUNICATION 5 VDC MODBUS PLUS 9-PIN D-SHELL OPTION ADAPTER
| Part Number | 172PNN21022 |
| Manufacturer | Schneider Electric |
| Type | Adapters |
| Warranty | 2 Year |
| Module format | Standard |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Modbus Plus option adaptor |
| Number of port | 1 |
| Communication port protocol | Modbus Plus |
| Communication port type | Single |
| [Us] rated supply voltage | 5 V DC |
| Input voltage tolerance | +/- 5 % |
| Supply | Via I/O base |
| Clock drift | +/- 13 s/day accuracy |
| Battery type | Lithium < 30 day after the battery low indication 104 °F (40 °C) |
| Battery size | 2/3 AA |
| Battery life | 5 yr |
| Electrical connection | 1 connector D-shell 9 pins for Modbus Plus connection |
| Material | Lexan |
| Marking | CE |
| Local signalling | 1 LED communication |
| Current consumption | <= 350 mA 24 V DC |
| 200 mA 24 V DC | |
| Height | 0.98 in (25 mm) |
| Width | 5.63 in (143.1 mm) |
| Depth | 2.36 in (60.06 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 172PNN21022 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 172PNN21022 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 172PNN21022, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 172PNN21022 for credit when ordering from MRO Electric
The Schneider Electric 172PNN21022 is a Modbus Plus option adapter designed to enhance the communication capabilities of automation systems within the Modicon Momentum platform. As part of Schneider Electric's commitment to providing reliable and versatile automation solutions, this adapter offers seamless integration into existing networks, allowing for efficient data transmission and control across various devices in industrial applications.
This adapter is specifically tailored for use with the Modicon Momentum automation platform, a widely recognized series known for its modular and flexible approach to industrial automation. The 172PNN21022 adapter is a critical component that facilitates communication via the Modbus Plus protocol. This robust and widely used industrial network protocol enables data exchange between programmable logic controllers (PLCs), distributed control systems (DCS), and other automation devices.
This adapter, equipped with a single communication port, supports efficient data transfer and simplifies network architecture. It supports the Modbus Plus communication protocol, which ensures secure and reliable communication across the network, providing consistent and accurate data exchange necessary for process monitoring, control, and diagnostics. The single port design minimizes complexity and reduces installation time, making it ideal for new setups and upgrades to existing systems.
The 172PNN21022 Modbus Plus option adapter is powered through its I/O base, utilizing a rated supply voltage of 5 V DC with an input voltage tolerance of +/- 5%, ensuring stable operation under various electrical conditions. It consumes up to 350 mA at 24 V DC, demonstrating efficient power management that minimizes energy consumption. Additionally, the adapter features a clock drift of +/- 13 seconds per day, providing a reasonable timekeeping accuracy essential for applications requiring synchronized operations.
This adapter has a lithium battery that ensures continued operation during a power interruption. The 2/3 AA size battery offers a lifespan of up to 5 years, reducing the need for frequent replacements and minimizing maintenance downtime. After a low battery indication, the adapter can continue functioning for up to 30 days at 104°F (40°C), providing ample time for scheduled maintenance or battery replacement.
Constructed from Lexan, a durable and impact-resistant material, the 172PNN21022 adapter is built to withstand harsh industrial environments. The D-shell 9-pin connector facilitates easy connection to Modbus Plus networks, while the compact dimensions of 0.98 inches in height, 5.63 inches in width, and 2.36 inches in depth allow for easy installation in tight spaces. The CE marking signifies that the adapter complies with European safety, health, and environmental requirements, ensuring its suitability for various applications.
The adapter features an LED communication indicator that provides real-time status updates, simplifying troubleshooting and maintenance. This local signaling function lets operators quickly identify communication issues, enhancing system reliability and reducing downtime.
With a 2-year MRO Electric and Supply warranty, the Schneider Electric 172PNN21022 Modbus Plus option adapter offers a reliable and durable solution for enhancing industrial communication networks. Its compatibility with the Modicon Momentum platform, robust construction, and efficient performance make it a valuable addition to any automation setup. Moreover, the adapter is available with free shipping, reducing the total ownership cost.
This adapter is ideal for various industries, including manufacturing, process control, utilities, and any application that requires reliable communication between multiple devices and control systems. Its ability to integrate seamlessly into existing networks makes it a preferred choice for retrofitting and new installations.
