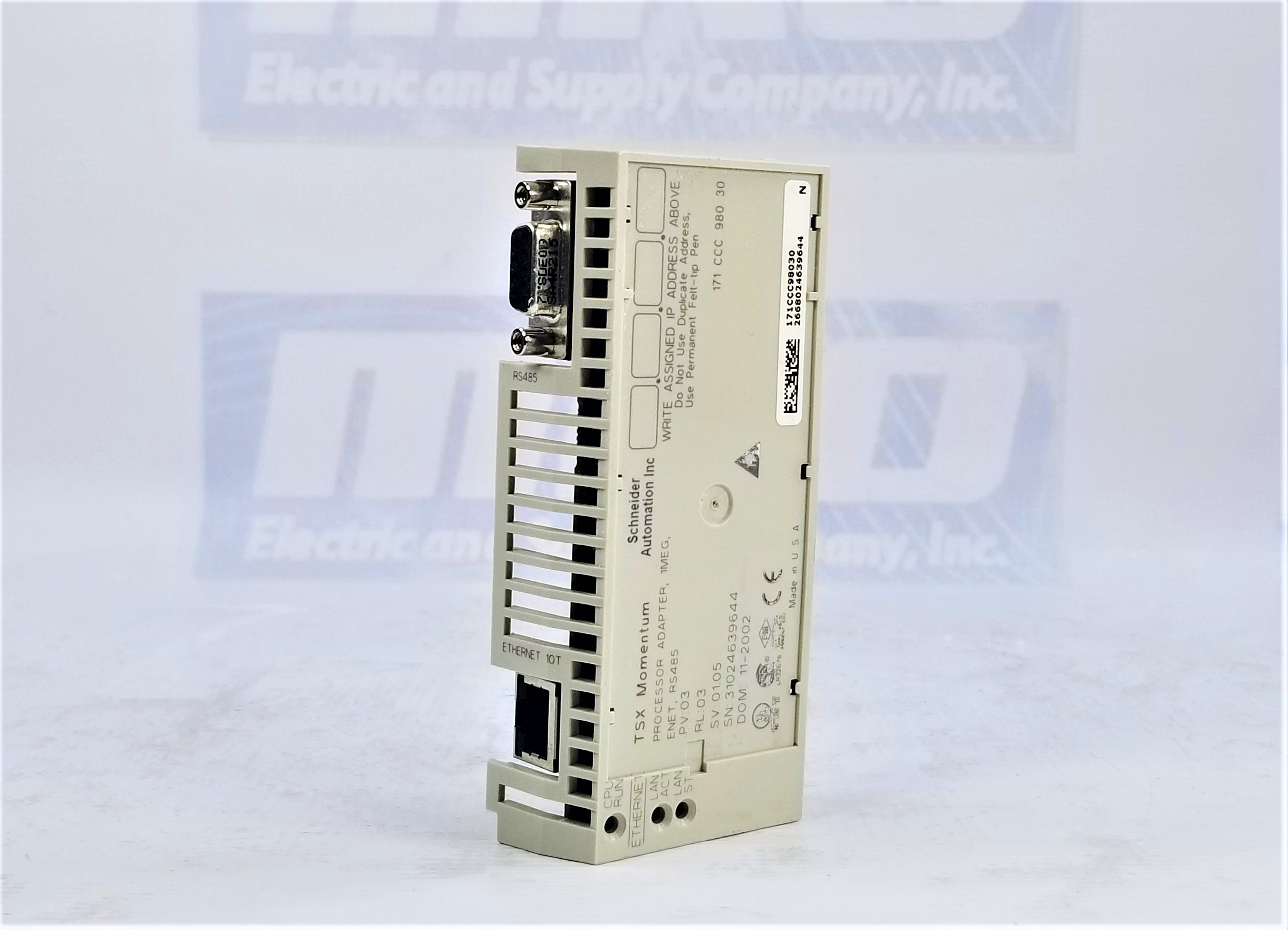

Schneider Electric 171CCC98030 Modicon Momentum M1/M1E Processor Adaptor

The Schneider Electric 171CCC98030 is a highly versatile M1/M1E processor adaptor designed for the Modicon Momentum automation platform. This processor adaptor is engineered to meet the demands of modern industrial automation, offering powerful processing capabilities alongside robust communication options. It is equipped with the Transparent Ready concept, facilitating seamless integration with Schneider Electric’s automation and control systems suite. The device supports Modbus and Ethernet communication protocols, making it ideal for applications that require efficient and reliable data exchange across various networks.

One of the standout features of the 171CCC98030 is its compatibility with several advanced programming environments. It supports Concept V2.6, Modsoft (V2.5 or higher), ProWORX 32, and ProWORX NxT V2.0, allowing users to develop and implement complex automation solutions tailored to their needs. This flexibility makes it an excellent choice for various industrial applications, from manufacturing to process automation.

The processor name is based on an X86 architecture, utilizing an Intel or AMD processor with an IEC executive, running at a clock frequency of 50 MHz. This ensures smooth processing of instructions and quick response times, with the system executing 1K instructions per 1 millisecond. The system's configuration includes 1 MB of Flash memory, 544 kB of RAM, and dedicated program and data storage memory blocks. Specifically, it provides 24 kB of data memory, 18 kB of LL984 program memory, and 200 kB of IEC program memory.

Communication Capabilities

The 171CCC98030 is equipped with multiple communication ports, including 1 Ethernet port and 1 RS485 port, making it versatile for networked control systems. The Ethernet service supports critical protocols such as I/O scanning and Modbus TCP messaging, enabling seamless communication across industrial networks and ensuring data is exchanged accurately and efficiently. It also includes web services such as a web page loader, rack viewer, and data editor, allowing for remote monitoring and configuration. These web-based tools simplify maintenance and troubleshooting, reducing downtime and improving system efficiency.

In terms of I/O processing, this module can handle a substantial amount of input and output data, with a discrete I/O processor capacity of 8192 inputs and 8192 outputs. Additionally, the register I/O processor capacity reaches 26048 inputs and outputs, making this unit capable of managing complex automation tasks with ease. The I/O limit processor capacity supports local I/O on Modbus, enhancing its functionality in distributed control systems.

Power and Build Specifications

The device is powered by the Momentum I/O base, with a rated supply voltage of 5.0 V DC, operating within a +/- 5% tolerance range. This ensures stable power delivery, critical for maintaining uninterrupted operation in industrial settings. The 171CCC98030 is constructed using Lexan, a durable material known for its heat and mechanical stress resistance, making it well-suited for harsh industrial environments.

The unit complies with Class B10 standards and is CE-marked, ensuring it meets stringent safety and performance regulations. Its 16-bit word length further enhances its processing efficiency, allowing faster and more accurate data handling in automation tasks.

Warranty and Shipping

When purchasing the Schneider Electric 171CCC98030 from MRO Electric and Supply, customers benefit from a 2-year warranty, which ensures reliability and peace of mind. Additionally, free shipping is offered with every purchase, further enhancing the value and convenience of the product.

FAQs

What communication protocols are supported by the Schneider Electric 171CCC98030?

The processor adaptor supports Modbus and Ethernet communication protocols, making it compatible with various industrial networks.

What programming environments are compatible with the 171CCC98030?

The device is compatible with Concept V2.6, Modsoft (V2.5 or higher), ProWORX 32, and ProWORX NxT V2.0, offering programming and system integration flexibility.

What is the processor speed of this adaptor?

The processor runs at a clock frequency of 50 MHz, providing fast and reliable processing of instructions.

What is the discrete I/O capacity of this processor adaptor?

The 171CCC98030 can handle 8192 and 8192 outputs, allowing for large-scale automation tasks.

How much memory does the unit have?

The unit includes 1 MB of Flash memory, 544 kB of RAM, 24 kB of data memory, 18 kB of LL984 program memory, and 200 kB of IEC program memory.

What power supply is required for the 171CCC98030?

The Momentum I/O base powers the processor adaptor and requires a 5.0 V DC supply.

Does the 171CCC98030 have web-based tools?

Yes, the device includes web-based tools for remote monitoring and configuration, such as a web page loader, rack viewer, and data editor.

Is free shipping available for this product?

Yes, free shipping is available when purchasing from MRO Electric and Supply.

How long is the warranty for this product?

The Schneider Electric 171CCC98030 comes with a 2-year warranty.

What materials is the unit constructed from?

The processor adaptor is made from Lexan, a durable material designed to withstand industrial conditions.
