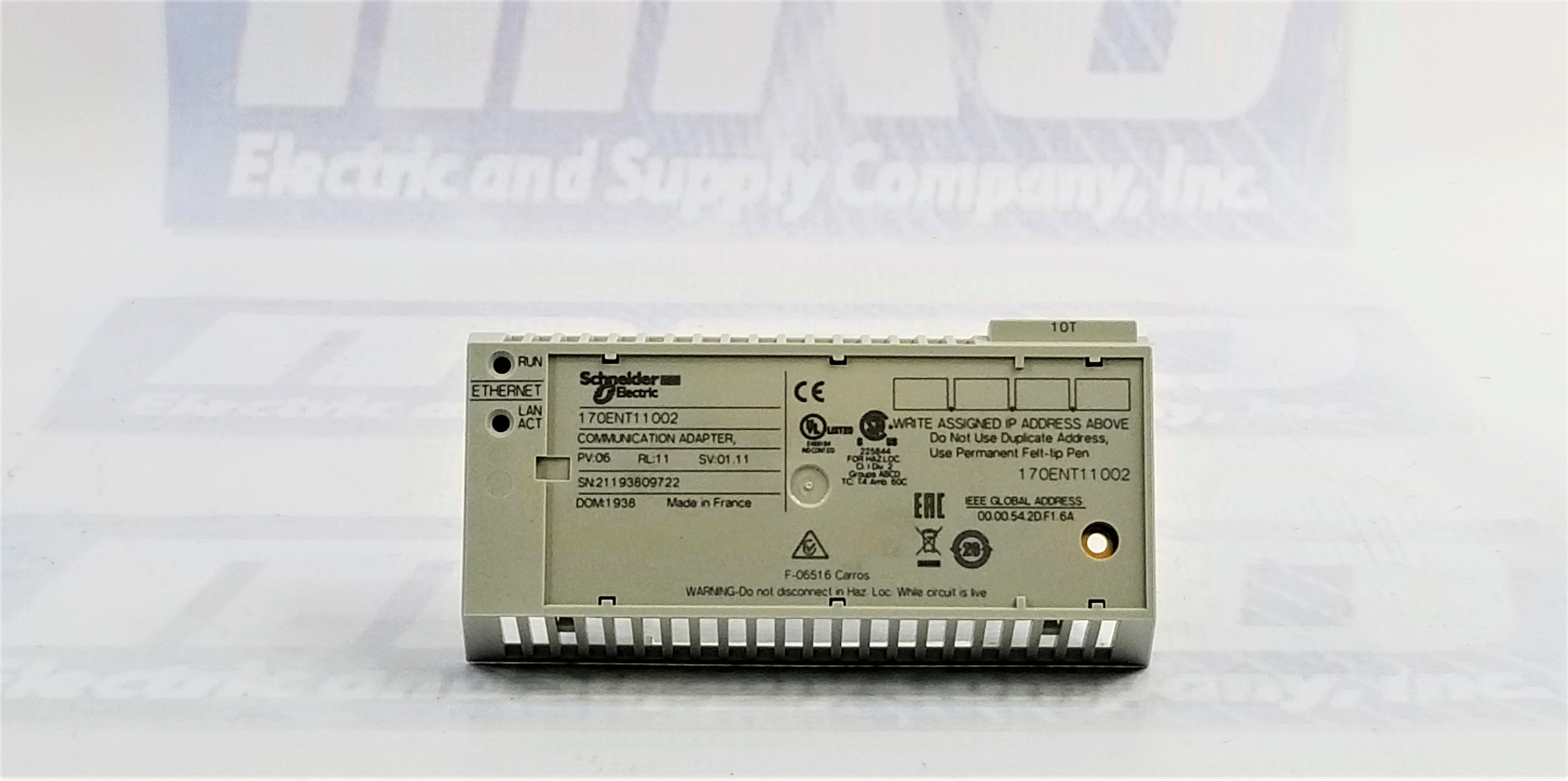

Schneider Electric 170ENT11002

Modicon Momentum - Ethernet Communication Adaptor - 170ENT11002

The Modicon Momentum 170ENT11002 stands at the forefront of the Modicon Momentum automation platform, playing a pivotal role in establishing efficient communication networks. This Ethernet TCP/IP communication adaptor has been meticulously designed to meet the demanding requirements of industrial automation, providing seamless integration and reliable data exchange.

Communication Protocol

At its core, the 170ENT11002 utilizes the Ethernet TCP/IP protocol, a robust and widely adopted standard in industrial communication. This protocol facilitates both peer-to-peer and master/slave communication methods, offering a versatile framework for diverse automation scenarios. The result is a communication adaptor that adapts effortlessly to the dynamic needs of industrial networks.

Transmission Medium

Ensuring the reliability and integrity of data transfer, the 170ENT11002 relies on shielded twisted pairs cable as its transmission support medium. This choice aligns with industry best practices, providing a shield against electromagnetic interference and ensuring stable communication in challenging industrial environments.

Configuration and Topology

Configuration is streamlined through the incorporation of a BOOTP server, simplifying the assignment of IP parameters. The module supports multidrop and star network topologies, providing flexibility in network architecture. This adaptability is key to accommodating the varying requirements of industrial settings, where network structures can vary widely.

Network Parameters

The 170ENT11002, with its Ethernet 10BASE-T port, supports up to 32 devices per segment. The maximum cable distance of 3280.84 ft (1000 m) without the need for a repeater ensures scalability and efficient coverage. The unique IEEE global addressing and user-assigned IP addresses contribute to effective device identification, a critical aspect in large-scale industrial networks.

Fail-Safe Operation

Reliability is paramount in industrial automation, and the 170ENT11002 addresses this by operating in a fail-safe mode. In the event of unforeseen circumstances, the module ensures continued system operation. The inclusion of the CRC-32 control parameter enhances data integrity during transmission, minimizing the risk of data corruption.

Physical Characteristics

Weighing a mere 0.15 lb(US) (0.07 kg), the 170ENT11002 boasts a compact and lightweight design, allowing for efficient use of space in industrial cabinets. The electrical connection is streamlined through a single RJ45 connector for 10BASE-TX, simplifying installation procedures and reducing potential points of failure.

Environmental Specifications

Compliance with UL, FM Class 1 Division 2, and CSA standards underscores the module's commitment to safety and reliability in diverse industrial environments. The IP20 degree of protection ensures resistance against solid objects, making it suitable for harsh industrial conditions where dust and debris are prevalent.

Electromagnetic Compatibility

The 170ENT11002 exhibits remarkable resilience to electromagnetic interference, meeting IEC 801-3 standards. This includes protection against electrostatic discharge, with 4 kV contact and 8 kV on air, complying with IEC 801-2. These measures ensure stable operation even in environments with challenging electromagnetic conditions.

Operating Conditions

Operating within a temperature range of 32 to 140 °F (0 to 60 °C), the module is well-suited for a variety of industrial settings. With resistance to extreme temperatures and humidity levels, it ensures stable performance in conditions where other communication adaptors might falter.

Sustainability and Regulatory Compliance

In addition to its technical prowess, the 170ENT11002 adheres to stringent environmental and safety standards. It complies with California Proposition 65, providing transparent information on potential chemical exposures. The module also aligns with REACh, EU RoHS, and China RoHS regulations, showcasing its commitment to environmental responsibility throughout its lifecycle.

Frequently Asked Questions (FAQ) about the Schneider Electric 170ENT11002 Ethernet TCP/IP Communication Adaptor

Q: What is the Schneider Electric 170ENT11002?

A: The Schneider Electric 170ENT11002 is an Ethernet TCP/IP communication adaptor designed for use with the Modicon Momentum automation platform. It facilitates communication between devices on an Ethernet network using the TCP/IP protocol.

Q: What are the key specifications of the 170ENT11002 communication adaptor?

A: The 170ENT11002 features an electrical connection via one RJ45 connector for 100BASE-TX Ethernet. It supports a transmission rate of 10 Mbit/s over shielded twisted pairs cable. The module operates as a BOOTP server to assign IP parameters and supports multidrop and star network topologies.

Q: What methods of access does the 170ENT11002 support?

A: The 170ENT11002 supports peer-to-peer and master/slave methods of access, providing flexibility in establishing communication between devices on the network.

Q: How many devices can be connected to the 170ENT11002?

A: The 170ENT11002 allows for connection of up to 32 devices per segment, with a total of 0 or more devices possible when using a hub or repeater.

Q: What is the maximum cable length supported by the 170ENT11002?

A: The 170ENT11002 supports cable lengths of up to 3280.84 feet (1000 meters) with or without a repeater, providing flexibility in network layout and configuration.

Q: How is the 170ENT11002 powered?

A: The 170ENT11002 draws power from the I/O base, simplifying installation and eliminating the need for additional power sources.

Q: What is the fail state of the 170ENT11002?

A: The 170ENT11002 operates in a fail-safe manner, ensuring that in the event of a failure, the network and connected devices are safeguarded against potential issues.

Q: How is the status of the 170ENT11002 indicated?

A: The 170ENT11002 features local signaling with two LEDs: one green LED indicates the Ethernet network state (LAN), and another green LED indicates module activity (RUN), providing visual feedback on the status of the communication adaptor.
