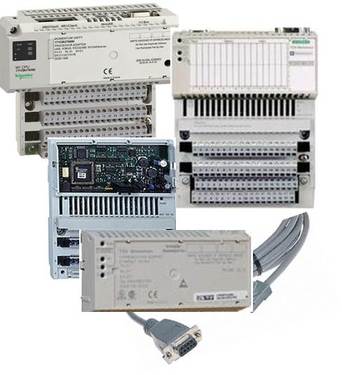

| Part Number | 170AMM09000C |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 170-AMM-090-00C |
| Warranty | 2 Year |
| Width | 5.57 in (141.5 mm) |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue,Discrete I/O base |
| Group of channels | 1 group of 4 discrete inputs |
| 1 group of 2 discrete outputs | |
| 1 group of 2 analog outputs | |
| 1 group of 4 analog differential inputs | |
| Analogue input range | +/- 10 V |
| +/- 20 mA | |
| +/- 5 V | |
| 1...5 V | |
| 4...20 mA | |
| Analogue input type | Differential |
| Analogue input resolution | 12 bits 1...5 V |
| 12 bits 4...20 mA | |
| 13 bits +/- 20 mA | |
| 13 bits +/- 5 V | |
| 14 bits +/- 10 V | |
| Discrete input voltage | 24 V DC |
| Analogue output range | +/- 10 V 12 bits |
| 0...20 mA 12 bits | |
| Discrete output voltage | <= 30 V |
| Output short-circuit protection | With discrete output |
| Output overload protection | With discrete output |
| Discrete input number | 4 IEC 1131-2 Type 1 |
| [Us] rated supply voltage | 24 V DC |
| Conversion consistency | +/- 0.02 % +/- 10 V analogue input circuit |
| +/- 0.04 % +/- 20 mA analogue input circuit | |
| +/- 0.04 % +/- 5 V analogue input circuit | |
| +/- 0.04 % 1...5 V analogue input circuit | |
| +/- 0.04 % 4...20 mA analogue input circuit | |
| Common mode rejection | > 54 dB analogue input circuit |
| Input voltage limits | < 30 V |
| Discrete input logic | Positive |
| Voltage state 0 guaranteed | -3...5 V discrete input |
| Voltage state1 guaranteed | 11...30 V discrete input |
| Current state 0 guaranteed | <= 1.2 mA discrete input |
| Current state 1 guaranteed | >= 2.5 mA discrete input |
| Maximum overvoltage on input | -30...30 V 24 V discrete input |
| -50...50 V <= 100 s | |
| Input resistance | 1 kOhm analogue input circuit |
| 4 kOhm discrete input | |
| Output load | 3 kOhm +/- 10 V analogue output |
| 600 Ohm 0...20 mA analogue output | |
| Conversion time | 1 ms analogue output |
| 10 ms analogue input circuit | |
| Conversion error | 0,0008 +/- 10 V 77 °F (25 °C) analogue input circuit |
| 0,0015 +/- 10 V 140 °F (60 °C) analogue input circuit | |
| 0,0016 +/- 20 mA 77 °F (25 °C) analogue input circuit | |
| 0,0016 +/- 5 V 77 °F (25 °C) analogue input circuit | |
| 0,0016 1...5 V 77 °F (25 °C) analogue input circuit | |
| 0,0016 4...20 mA 77 °F (25 °C) analogue input circuit | |
| 0,003 +/- 20 mA 140 °F (60 °C) analogue input circuit | |
| 0,003 +/- 5 V 140 °F (60 °C) analogue input circuit | |
| 0,003 1...5 V 140 °F (60 °C) analogue input circuit | |
| 0,003 4...20 mA 140 °F (60 °C) analogue input circuit |
| +/- 0.35 % +/- 10 V 77 °F (25 °C) analogue output | |
| +/- 0.35 % 0...20 mA 77 °F (25 °C) analogue output | |
| +/- 0.70 % +/- 10 V 140 °F (60 °C) analogue output | |
| +/- 0.70 % 0...20 mA 140 °F (60 °C) analogue output | |
| Fail state | Hold analogue input circuit |
| Reset to zero analogue input circuit | |
| Discrete output type | Transistor |
| Discrete output logic | Positive |
| Discrete output current | 1 A per point |
| 2 A per group | |
| 2 A per module | |
| Leakage current | < 1 mA DC 24 V discrete output |
| Voltage drop | < 0.5 V 1 A at state on discrete output |
| Operating rate | 100 cyc/s resistive 1 A discrete output |
| 1000 cyc/h inductive 1 A discrete output | |
| 8 cyc/s tungsten 2.4 W discrete output | |
| Response time | < 0.1 ms from state 0 to state 1 discrete output |
| < 0.1 ms from state 1 to state 0 discrete output | |
| 2.2 ms from state 0 to state 1 discrete input | |
| 3.3 ms from state 1 to state 0 discrete input | |
| Isolation voltage | 500 V 1 min between analogue I/O and operating voltage |
| 500 V 1 min between operating voltage and I/O from ground | |
| Power dissipation in W | <= 6 W |
| Marking | CE |
| Local signalling | 16 LEDs channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | <= 350 mA 24 V DC |
| 200 mA 24 V DC | |
| Depth | 1.87 in (47.5 mm) |
| Height | 4.92 in (125 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170AMM09000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170AMM09000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170AMM09000C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 170AMM09000C for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170AMM09000C, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170AMM09000C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
