170AMM09000

2-year Warranty

Same Day Shipping

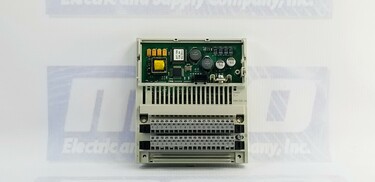

Schneider Electric 170AMM09000

MODICON MOMENTUM DISTRIBUTED ANALOG/DISCRETE I/O

5/5
1 rating

Select Condition

Refurbished

12 in stock

$783.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170AMM09000
ManufacturerSchneider Electric
TypeBases
Model #170-AMM-090-00
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue,Discrete I/O base
Group of channels1 group of 2 analog outputs
1 group of 2 discrete outputs
1 group of 4 analog differential inputs
1 group of 4 discrete inputs
Analogue input range+/- 10 V
+/- 20 mA
+/- 5 V
1...5 V
4...20 mA
Analogue input typeDifferential
Analogue input resolution12 bits 1...5 V
12 bits 4...20 mA
13 bits +/- 20 mA
13 bits +/- 5 V
14 bits +/- 10 V
Discrete input voltage24 V DC
Analogue output range+/- 10 V 12 bits
0...20 mA 12 bits
Discrete output voltage<= 30 V
Output short-circuit protectionWith discrete output
Output overload protectionWith discrete output
Discrete input number4 IEC 1131-2 Type 1
[Us] rated supply voltage24 V DC
Conversion consistency+/- 0.02 % +/- 10 V analogue input circuit
+/- 0.04 % +/- 20 mA analogue input circuit
+/- 0.04 % +/- 5 V analogue input circuit
+/- 0.04 % 1...5 V analogue input circuit
+/- 0.04 % 4...20 mA analogue input circuit
Common mode rejection> 54 dB analogue input circuit
Input voltage limits< 30 V
Discrete input logicPositive
Voltage state 0 guaranteed-3...5 V discrete input
Voltage state1 guaranteed11...30 V discrete input
Current state 0 guaranteed<= 1.2 mA discrete input
Current state 1 guaranteed>= 2.5 mA discrete input
Maximum overvoltage on input-30...30 V 24 V analogue input circuit
-50...50 V <= 100 s analogue input circuit
Input resistance1 MOhm analogue input circuit
4 kOhm discrete input
Output load<= 600 Ohm 0...20 mA analogue output
>= 3 kOhm +/- 10 V analogue output
Conversion time1 ms analogue output
10 ms analogue input circuit
Conversion error0,0008 +/- 10 V 77 °F (25 °C) analogue input circuit
0,0015 +/- 10 V 140 °F (60 °C) analogue input circuit
0,0016 +/- 20 mA 77 °F (25 °C) analogue input circuit
0,0016 +/- 5 V 77 °F (25 °C) analogue input circuit
0,0016 1...5 V 77 °F (25 °C) analogue input circuit
0,0016 4...20 mA 77 °F (25 °C) analogue input circuit
0,003 +/- 20 mA 140 °F (60 °C) analogue input circuit
0,003 +/- 5 V 140 °F (60 °C) analogue input circuit
0,003 1...5 V 140 °F (60 °C) analogue input circuit
0,003 4...20 mA 140 °F (60 °C) analogue input circuit
+/- 0.35 % +/- 10 V 77 °F (25 °C) analogue output
+/- 0.35 % 0...20 mA 77 °F (25 °C) analogue output
+/- 0.70 % +/- 10 V 140 °F (60 °C) analogue output
+/- 0.70 % 0...20 mA 140 °F (60 °C) analogue output
Fail stateHold analogue input circuit
Reset to zero analogue input circuit
Discrete output typeTransistor
Discrete output logicPositive
Discrete output current1 A per point
2 A per group
2 A per module
Leakage current< 1 mA DC 24 V discrete output
Voltage drop< 0.5 V 1 A at state on discrete output
Operating rate100 cyc/s resistive 1 A discrete output
1000 cyc/h inductive 1 A discrete output
8 cyc/s tungsten 2.4 W discrete output
Response time< 0.1 ms from state 0 to state 1 discrete output
< 0.1 ms from state 1 to state 0 discrete output
2.2 ms from state 0 to state 1 discrete input
3.3 ms from state 1 to state 0 discrete input
Isolation voltage500 V 1 min between analogue I/O and operating voltage
500 V 1 min between operating voltage and I/O from ground
Power dissipation in W<= 6 W
MarkingCE
Local signalling8 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption<= 350 mA 24 V DC
200 mA 24 V DC
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170AMM09000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170AMM09000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170AMM09000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 11 hours and 54 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170AMM09000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170AMM09000 Overview

Schneider Electric 170-AMM-090-00 Base for Modicon Momentum Automation Platform

The Schneider Electric 170-AMM-090-00 base is a highly versatile and reliable component designed to support automation systems within the Modicon Momentum automation platform. Known for its precision and reliability, this base offers comprehensive input/output (I/O) functionality, including analog and discrete channels. It is an ideal choice for industrial applications requiring accurate control and monitoring of various processes. With its advanced features, compact design, and robust protection mechanisms, the 170-AMM-090-00 base ensures seamless operation and enhanced performance in various automation tasks.

Comprehensive I/O Capabilities

The Schneider Electric 170-AMM-090-00 is classified as an analog and discrete I/O base, supporting multiple groups of channels. It provides:

  • One group of two analog outputs.
  • One group of two discrete outputs.
  • One group of four analog differential inputs.
  • One group of four discrete inputs.

This makes it well-suited for tasks requiring precise control over analog and digital signals, such as monitoring sensor data or controlling actuators.

The analog input range for this base includes +/- 10 V, +/- 20 mA, +/- 5 V, 1 to 5 V, and 4 to 20 mA, providing flexibility in accommodating various sensor types. The analog inputs are differential and have a resolution of up to 14 bits, ensuring high signal conversion and data representation accuracy. The discrete inputs operate at 24 V DC, adhering to IEC 1131-2 Type 1 standards for industrial-grade reliability.

High-Performance Outputs

The 170-AMM-090-00 base offers robust output performance, with its analog outputs supporting a range of +/- 10 V (12 bits) and 0 to 20 mA (12 bits). For discrete outputs, the base operates with voltages up to 30 V and is equipped with short-circuit and overload protection, ensuring the safety and durability of connected devices. The discrete outputs are transistor-based and capable of handling a current of up to 1 A per point and 2 A per group, making them suitable for various industrial applications.

Advanced Protection Features

Schneider Electric has engineered the 170-AMM-090-00 base with multiple protection mechanisms to ensure reliable operation in harsh industrial environments. It features short-circuit protection for discrete outputs and overload protection to prevent damage from excessive loads. The base also has isolation voltage protection of 500 V between the analog I/O and the operating voltage, providing additional safety against electrical disturbances.

The unit’s robust construction also ensures fail-safe operation. In the event of a failure, the analog input circuits can hold the last known value or reset to zero, providing flexibility depending on the application’s requirements.

Efficient Performance and Compact Design

The 170-AMM-090-00 base is designed for high efficiency and minimal power consumption. With a power dissipation of only 6 watts and a maximum current consumption of 350 mA at 24 V DC, it ensures optimal energy use while maintaining peak performance. The base has a fast conversion time of 10 ms for analog input circuits and 1 ms for analog outputs, enabling quick responses to system changes.

The unit is compact, with a height and width of 4.92 inches (125 mm) and a depth of 1.87 inches (47.5 mm), making it easy to integrate into control panels and automation systems with limited space. It includes two connectors for removable terminal blocks, simplifying installation and maintenance. Additionally, eight LEDs provide local signaling for channel status, offering real-time visual feedback on system performance.

Warranty and Shipping

MRO Electric and Supply provides a 2-year warranty on the Schneider Electric 170-AMM-090-00 base, ensuring peace of mind and reliability. MRO Electric also offers free shipping, making it convenient for customers to acquire this product without additional costs or delays.

FAQs for Schneider Electric 170-AMM-090-00 Base

1. What type of I/O capabilities does the 170-AMM-090-00 base provide?

The Schneider Electric 170-AMM-090-00 base offers both analog and discrete I/O capabilities. It includes one group of four analog differential inputs, one group of four discrete inputs, one group of two analog outputs, and one group of two discrete outputs. This versatility allows for precise control and monitoring in automation applications.

2. What is the resolution of the analog inputs and outputs?

The resolution of the analog inputs depends on the input range. For example, the resolution is 12 bits for 1–5 V and 4–20 mA inputs, 13 bits for +/- 20 mA and +/- 5 V inputs, and 14 bits for +/- 10 V inputs. The analog outputs have a resolution of 12 bits for both the +/- 10 V and 0–20 mA ranges.

3. What voltage levels do the discrete inputs and outputs operate at?

The discrete inputs operate at 24 V DC and follow IEC 1131-2 Type 1 standards. The discrete outputs can handle up to 30 V voltages and are protected with short-circuit and overload features for safe operation.

4. How does the 170-AMM-090-00 base protect against overloads or short circuits?

This base includes short-circuit protection for its discrete outputs and overload protection for analog and discrete outputs. These protective features ensure that the base can safely manage excessive loads without damaging connected devices.

5. What is the rated input voltage for the 170-AMM-090-00?

The Schneider Electric 170-AMM-090-00 base is designed to operate at a rated supply voltage of 24 V DC, ensuring compatibility with standard industrial power systems.

6. What kind of input ranges does the analog input support?

The analog inputs on the 170-AMM-090-00 base support a variety of ranges, including +/- 10 V, +/- 20 mA, +/- 5 V, 1–5 V, and 4–20 mA. This flexibility makes it suitable for handling signals from different sensors and devices.

7. What is the physical size of the 170-AMM-090-00 base?

The base's compact design—it is 4.92 inches (125 mm) wide and high and 1.87 inches (47.5 mm) deep —makes it easy to install in control panels and automation systems with space constraints.

8. What is the power consumption of the 170-AMM-090-00?

The base's power dissipation is less than or equal to 6 watts, and its maximum current consumption is 350 mA at 24 V DC. This ensures efficient power use in industrial automation systems.

9. How fast is the conversion time for the analog inputs and outputs?

The conversion time for the analog input circuits is ten milliseconds, and for the analog outputs, it is one millisecond. These fast response times allow the base to quickly adapt to changing conditions in the system.

10. Does the 170-AMM-090-00 base come with a warranty?

Yes, the 170-AMM-090-00 base comes with a 2-year warranty from MRO Electric and Supply, ensuring peace of mind and reliability in case of any issues. Additionally, MRO Electric offers free shipping on this product.
