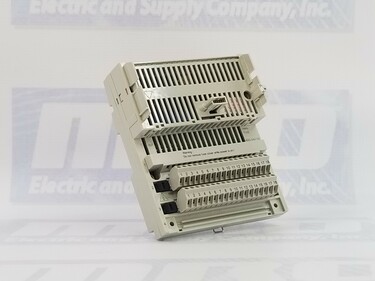

MODICON MOMENTUM DISCRETE OUTPUT MODULE- 16 O SOLID STATE
| Part Number | 170ADO54050 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 170-ADO-540-50 |
| Warranty | 2 Year |
| Width | 4.92 in (125 mm) |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete output base AC |
| Group of channels | 2 groups of 8 outputs |
| Discrete output number | 16 |
| Discrete output type | Triac |
| Discrete output voltage | 120 V AC |
| Current per channel | <= 0.5 A |
| Short-circuit protection | Internal fuse, 5 A slow-blow per group |
| Protective treatment | TC |
| System Voltage | 120 V AC |
| Discrete output current | 4 A per group |
| 8 A per module |
| Minimum output current | 30 mA |
| Leakage current | 1.9 mA 120 V AC |
| Surge current | 10 A for 2 cycles |
| 15 A for 1 cycle | |
| 5 A for 3 cycles | |
| Voltage drop | < 1.5 V 0.5 A at state 1 |
| Output overload protection | Internal fuse |
| Response time | 1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1 |
| 1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0 | |
| Isolation between channels and bus | 1780 V AC for 1 minute |
| Power dissipation | 7.5 W maximum |
| 6 W typical | |
| Marking | CE |
| Local signalling | 16 LEDs channel status |
| Current consumption | 125 mA 120 V AC |
| Terminals description PLC n°1 | (16)OUT_DIS#16 |
| (3)OUT_DIS#3 | |
| (10)OUT_DIS#10 |
| (11)OUT_DIS#11 | |
| (1L+)PW | |
| (4)OUT_DIS#4 | |
| (15)OUT_DIS#15 | |
| (8)OUT_DIS#8 | |
| (7)OUT_DIS#7 | |
| (1)OUT_DIS#1 | |
| (2)OUT_DIS#2 | |
| (6)OUT_DIS#6 | |
| (5)OUT_DIS#5 | |
| TB | |
| (12)OUT_DIS#12 | |
| (9)OUT_DIS#9 | |
| (14)OUT_DIS#14 | |
| (1N)PW | |
| (13)OUT_DIS#13 | |
| Depth | 1.87 in (47.5 mm) |
| Height | 5.57 in (141.5 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170ADO54050 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170ADO54050 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170ADO54050, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 170ADO54050 for credit when ordering from MRO Electric
The Schneider Electric 170ADO54050 is a high-performance discrete output base AC module designed for the Modicon Momentum automation platform. As an essential component of industrial control systems, this I/O module facilitates efficient signal processing and communication between controllers and connected devices. With 16 discrete outputs arranged in two groups of eight, this module ensures seamless operation for various industrial applications, including manufacturing, process automation, and robotics.
Built for reliability and efficiency, the 170ADO54050 operates at 120V AC with a triac output type, making it ideal for handling moderate electrical loads. Each output channel supports a maximum current of 0.5A, with an overall module limit of 8A, ensuring stable performance across multiple connected devices. Additionally, the module is equipped with internal short-circuit protection via 5A slow-blow fuses per group, safeguarding the system from electrical faults and enhancing operational longevity.
The Schneider Electric 170ADO54050 is designed to handle industrial-grade electrical loads while maintaining system safety and efficiency. It features built-in overload protection, preventing damage from excessive current draw, and ensures continued functionality in demanding environments. The module also boasts low power dissipation, consuming a typical 6W while operating under normal conditions and a maximum of 7.5W under heavy loads.
For enhanced operational safety, the module incorporates a high-voltage isolation barrier of 1780V AC for 1 minute between channels and the communication bus. This isolation minimizes electrical interference and prevents unintended voltage spikes from affecting control system operations. With a response time of 0.5 line cycles, the module provides fast and accurate switching, making it well-suited for time-sensitive automation tasks.
Designed for ease of installation and maintenance, the Schneider Electric 170ADO54050 features a compact form factor, measuring 4.92 inches wide, 5.57 inches high, and 1.87 inches deep. This makes it ideal for installations where space is limited. Additionally, local LED indicators provide real-time status updates for each of the 16 output channels, allowing operators to diagnose and address system issues quickly.
The module is equipped with CE marking, ensuring compliance with international safety and performance standards. With a current consumption of 125mA at 120V AC, it offers efficient energy usage without compromising functionality. Its protective treatment (TC) further enhances durability, allowing it to operate in challenging industrial environments.
MRO Electric and Supply offers the Schneider Electric 170ADO54050 with free shipping and a 2-year warranty for industries requiring immediate replacement or new installation. This ensures minimal downtime and uninterrupted operation, giving customers confidence in the product's quality and longevity.
What is the Schneider Electric 170ADO54050 used for?
It is a discrete output module designed for the Modicon Momentum automation platform to control industrial processes.
How many outputs does this module have?
The module features 16 discrete outputs, organized in two groups of eight.
What is the module's operating voltage?
It operates at 120V AC, making it suitable for industrial automation systems requiring standard AC power.
Does this module have built-in short-circuit protection?
It includes internal 5A slow-blow fuses per group to protect against electrical faults.
What is the maximum current per output channel?
Each channel can handle up to 0.5A, with a total module capacity of 8A.
How does this module protect against voltage surges?
It features surge current protection up to 15A for one cycle and 10A for two cycles, ensuring durability in fluctuating power conditions.
Is the module equipped with local status indicators?
Yes, it has 16 LEDs, one for each output, providing real-time operational feedback.
What are the module's physical dimensions?
The module measures 4.92 inches wide, 5.57 inches high, and 1.87 inches deep, making it compact and easy to install.
Where can I purchase this module?
The Schneider Electric 170ADO54050 is available at MRO Electric and Supply with immediate shipping and a 2-year warranty.
Is this module compliant with safety standards?
It is CE-marked, ensuring compliance with international electrical and safety standards.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADO54050, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170ADO54050 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
