Available
Free Shipping
2 Year warranty

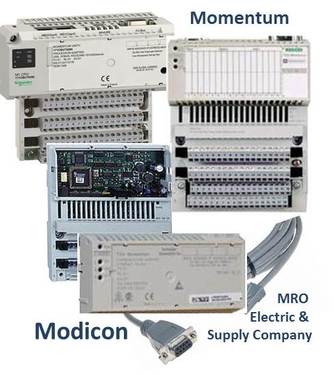

| Part Number | 170ADM39030C |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 170-ADM-390-30C |
| Warranty | 2 Year |
| Width | 4.92 in (125 mm) |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete relay I/O base DC |
| Group of channels | 2 groups of 4 outputs |
| 1 group of 10 inputs | |
| Discrete input number | 10 IEC 1131-2 Type 1 |
| Discrete input logic | Positive |
| Discrete input voltage | 20...115 V DC |
| Discrete output number | 8 |
| Discrete output type | Relay normally open |
| Discrete output voltage | 20...120 V DC |
| Protective treatment | Conformal coating Humiseal 1A33 |
| [Us] rated supply voltage | 24 V DC |
| Input voltage limits | - 3...30 V |
| Network frequency | 47...63 Hz |
| Voltage state 0 guaranteed | -3...5 V |
| Voltage state1 guaranteed | 11...30 V |
| Current state 0 guaranteed | <= 1.2 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input resistance | 4 kOhm |
| Discrete output current | <= 0.15 mA 115 V resistive |
| <= 0.2 mA 115 V inductive | |
| <= 1 mA 24 V inductive | |
| <= 2 mA 24 V resistive | |
| >= 0.005 A 24 V | |
| Leakage current | < 1 mA 230 V output circuit |
| Mechanical durability | <= 30000000 cycles |
| Electrical durability | <= 100000 cycles inductive |
| Response time | 2.2 ms from state 0 to state 1 on input |
| 3.3 ms from state 1 to state 0 on input | |
| 10 ms 60 Hz from state 0 to state 1 on output | |
| 10 ms 60 Hz from state 1 to state 0 on output | |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 5.5 W |
| <= 8.5 W | |
| Protection type | Without protection |
| Associated fuse rating | <= 4 A fast blow input voltage |
| <= 8 A slow-blow output voltage per group | |
| 375 mA fast blow operating voltage | |
| Marking | CE |
| Terminals description PLC n°1 | (3)IN_DIS#3 |
| (M-)PW_NEG | |
| (2)IN_DIS#2 | |
| (4)IN_DIS#4 |
| (6)IN_DIS#6 | |
| (L+)PW_POS | |
| (5)IN_DIS#5 | |
| (9)IN_DIS#9 | |
| (7)IN_DIS#7 | |
| (1L+)PW_POS | |
| (8)IN_DIS#8 | |
| (1)IN_DIS#1 | |
| TB | |
| (10)IN_DIS#10 | |
| Terminals description PLC n°2 | (2L1)PW |
| (1L+)PW | |
| (1)OUT_DIS#1 | |
| (8)OUT_DIS#8 | |
| (6)OUT_DIS#6 | |
| TB_1 | |
| (4)OUT_DIS#4 | |
| (7)OUT_DIS#7 | |
| (2)OUT_DIS#2 | |
| (5)OUT_DIS#5 | |
| (3)OUT_DIS#3 | |
| Current consumption | 250 mA 24 V DC |
| Depth | 1.87 in (47.5 mm) |
| Height | 5.57 in (141.5 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170ADM39030C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170ADM39030C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170ADM39030C, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 170ADM39030C for credit when ordering from MRO Electric
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADM39030C, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170ADM39030C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
