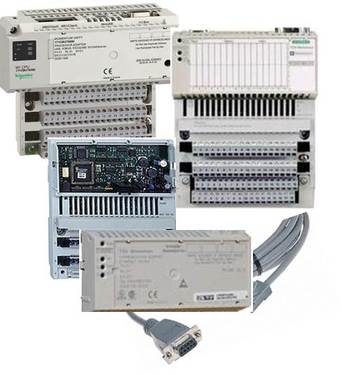

Part Number | 170ADM35010C |
Manufacturer | Schneider Electric |
Type | I/O Modules |
Model # | 170-ADM-350-10C |
Warranty | 2 Year |
Width | 4.92 in (125 mm) |
Range of product | Modicon Momentum automation platform |
Product or component type | Discrete solid state I/O base DC |
Group of channels | 1 group of 16 inputs |
2 groups of 8 outputs | |
Discrete input number | 16 IEC 1131-2 Type 1 |
Discrete input logic | Positive |
Discrete input voltage | 24 V DC |
Discrete output number | 16 |
Discrete output type | Solid state switch |
Discrete output voltage | <= 30 V |
24 V DC | |
Discrete output logic | Positive |
Protective treatment | Conformal coating Humiseal 1A33 |
[Us] rated supply voltage | 24 V DC |
Input voltage limits | - 3...30 V |
Network frequency | 47...63 Hz |
Voltage state 0 guaranteed | -3...5 V |
Voltage state1 guaranteed | 11...30 V |
Current state 0 guaranteed | <= 1.2 mA |
Current state 1 guaranteed | >= 2.5 mA |
Input resistance | 4 kOhm |
Discrete output current | 4 A per group |
8 A per module | |
0.5 A per point | |
Leakage current | < 1 mA 24 V output circuit |
Peak output current | 5 A |
Voltage drop | < 0.5 V 0.5 A at state 1 output circuit |
Fault type | Overload on output |
Response time | < 0.1 ms from state 0 to state 1 on output |
< 0.1 ms from state 1 to state 0 on output | |
2.2 ms from state 0 to state 1 on input | |
3.3 ms from state 1 to state 0 on input | |
Isolation between channels and bus | 500 V AC |
Power dissipation | <= 8 W |
6 W | |
Marking | CE |
Terminals description PLC n°1 | (7)IN_DIS#7 |
(16)IN_DIS#16 | |
(8)IN_DIS#8 | |
(M-)PW_NEG | |
(10)IN_DIS#10 | |
(4)IN_DIS#4 | |
(14)IN_DIS#14 | |
(2)IN_DIS#2 | |
(L+)PW_POS | |
(3)IN_DIS#3 | |
(11)IN_DIS#11 | |
(9)IN_DIS#9 | |
(6)IN_DIS#6 |
(5)IN_DIS#5 | |
(12)IN_DIS#12 | |
TB | |
(15)IN_DIS#15 | |
(1)IN_DIS#1 | |
(13)IN_DIS#13 | |
Terminals description PLC n°2 | (15)OUT_DIS#15 |
TB_1 | |
(8)OUT_DIS#8 | |
(2)OUT_DIS#2 | |
(14)OUT_DIS#14 | |
(2L+)PW_POS | |
(1)OUT_DIS#1 | |
(7)OUT_DIS#7 | |
(6)OUT_DIS#6 | |
(3)OUT_DIS#3 | |
(13)OUT_DIS#13 | |
(9)OUT_DIS#9 | |
(11)OUT_DIS#11 | |
(12)OUT_DIS#12 | |
(1L+)PW_POS | |
(4)OUT_DIS#4 | |
(10)OUT_DIS#10 | |
(5)OUT_DIS#5 | |
Current consumption | 250 mA 24 V DC |
Depth | 1.87 in (47.5 mm) |
Height | 5.57 in (141.5 mm) |
