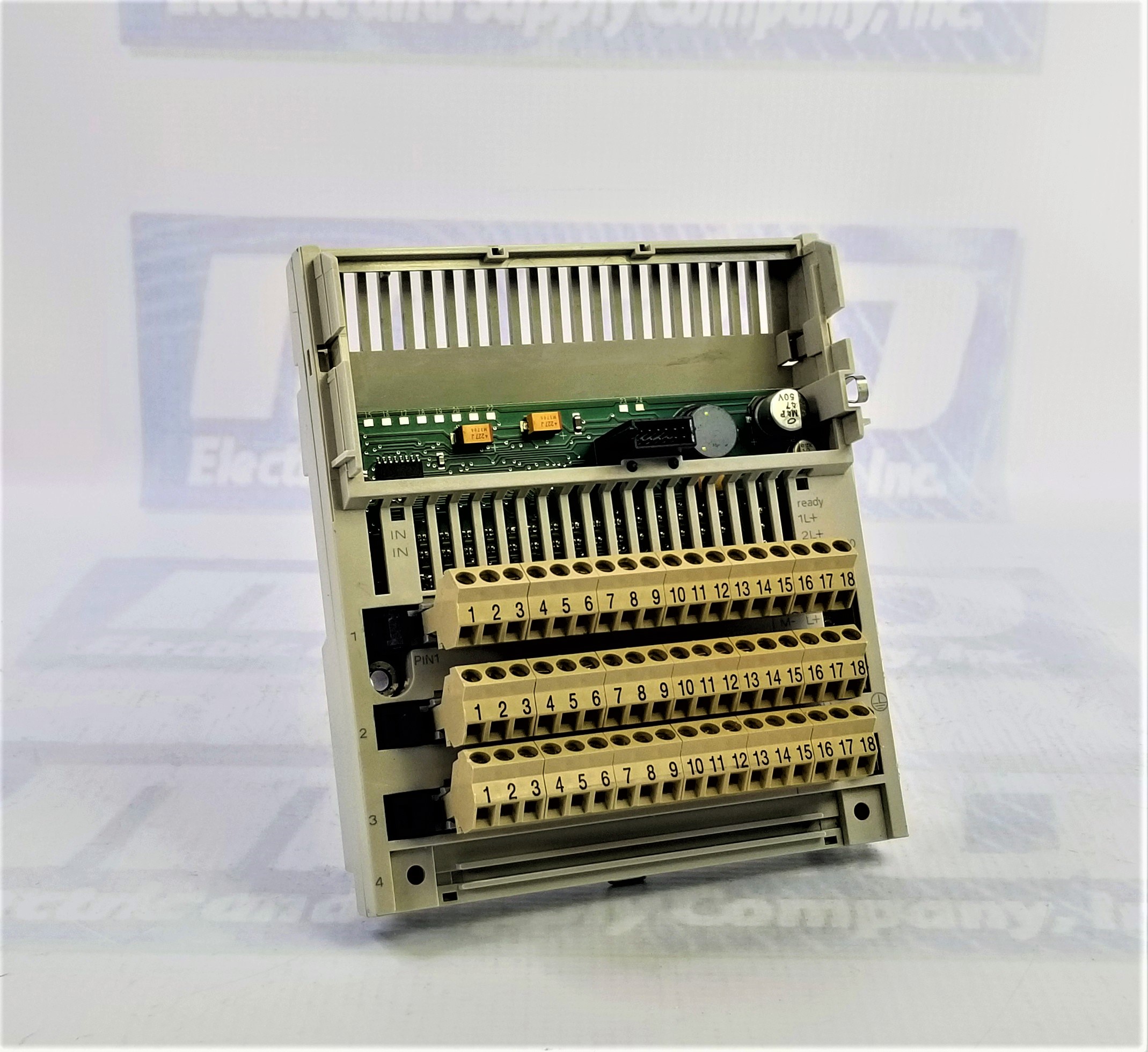

Schneider Electric 170ADI35000

Schneider Electric 170ADI35000 I/O Module Description

Overview

The Schneider Electric 170ADI35000 is a high-performance discrete input module designed for the Modicon Momentum automation platform. This module is ideal for industrial applications requiring reliable, fast, and accurate input processing. Its compact size and powerful capabilities ensure that it can seamlessly integrate into various industrial control systems. Measuring 4.92 inches (125 mm) in width, 1.87 inches (47.5 mm) in depth, and 5.57 inches (141.5 mm) in height, the 170ADI35000 takes up minimal space while delivering significant performance.

Input Capabilities

The module features 32 discrete inputs, divided into groups of 16 inputs each, and adheres to the IEC 1131-2 Type 1 standard. It operates on a 24 V DC input voltage with a positive logic configuration. The voltage range extends from -3 V to 30 V, making it highly adaptable to various automation environments. The module guarantees voltage state 0 between -3 V and 5 V, while voltage state 1 is between 11 V and 30 V. This ensures that the input logic is always accurate, contributing to the system's overall reliability.

Fast Response Time

One of the critical features of the 170ADI35000 is its quick response time. The transition from state 0 to state one occurs in just 2.2 ms, while switching from state 1 to state 0 takes 3.3 ms. This rapid responsiveness is crucial in high-demand industrial applications where timing is everything, ensuring that input data is processed promptly.

Isolation and Power Efficiency

The module offers robust isolation between channels and the bus at 500 V AC, providing electrical protection and preventing potential interferences. Additionally, the power dissipation is kept to a minimum, with a typical dissipation of 5.5 W and a maximum of 8.5 W, making it an energy-efficient choice for continuous industrial operations.

Local Signaling

The 170ADI35000 features 32 LEDs for channel status, offering real-time local signaling and easy system monitoring. This ensures quick diagnostics and troubleshooting, reducing downtime and ensuring operational efficiency.

Durability and Protection

The module has been treated with a protective coating (TC), enhancing its resistance to environmental factors such as dust, humidity, and other harsh conditions. This makes it suitable for demanding industrial environments. Additionally, the CE marking ensures compliance with European safety and environmental standards, underscoring its reliability and quality.

Connectivity

With clearly marked terminals, installation and integration into existing systems are straightforward. The terminals include IN_DIS#1 through IN_DIS#32, PW_POS, and PW_NEG, facilitating easy wiring and connection with other devices in the control system.

Warranty and Support

The Schneider Electric 170ADI35000 comes with a 2-year MRO Electric and Supply warranty. Free shipping is included, providing added value and assurance to customers. Designed for durability and reliability, this I/O module is essential in modern industrial automation setups.

Frequently Asked Questions (FAQs)

What type of inputs does the Schneider Electric 170ADI35000 support?

The Schneider Electric 170ADI35000 supports 32 discrete inputs divided into two groups 16. The inputs operate at 24 V DC with positive logic.

What is the response time of the 170ADI35000?

The module offers a fast response time of 2.2 ms for transitions from state 0 to state 1 and 3.3 ms for transitions from state 1 to state 0, suitable for high-speed industrial applications.

Does the 170ADI35000 provide isolation between channels and the bus?

The module provides isolation between channels and the bus at 500 V AC, ensuring electrical protection and minimizing potential interference between signals.

What kind of monitoring signaling does the module offer?

The 170ADI35000 has 32 LEDs that indicate the channel status, providing real-time local signaling for easy monitoring and diagnostics.

Is the 170ADI35000 durable in harsh environments?

Yes, the module has a protective treatment (TC) that makes it resistant to environmental factors such as dust and humidity. It is designed for industrial environments and complies with CE safety and environmental standards.

What is the power dissipation of the Schneider Electric 170ADI35000?

The 170ADI35000's typical power dissipation is 5.5 W, while the maximum is 8.5 W, making it energy-efficient for continuous industrial operations.

What warranty is provided with the 170ADI35000?

The Schneider Electric 170ADI35000 comes with a 2-year warranty from MRO Electric and Supply and free shipping for added convenience.
