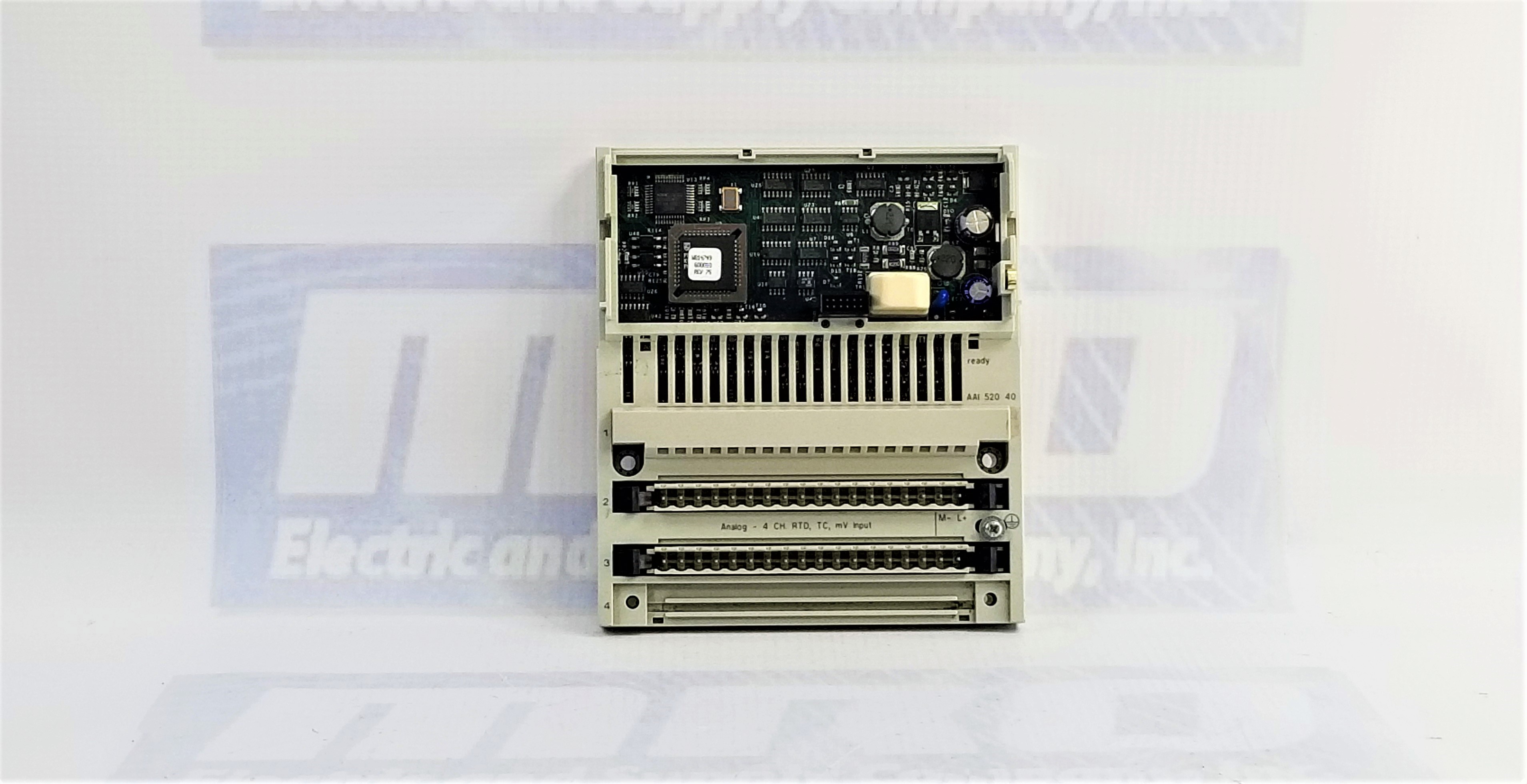

| Part Number | 170AAI52040 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 170-AAI-520-40 |
| Warranty | 2 Year |
| Width | 5.57 in (141.5 mm) |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 4 |
| Analogue input type | Differential |
| Analogue input range | +/- 100 mV 15 bits + sign > 10000 kOhm |
| +/- 25 mV 15 bits + sign > 10000 kOhm | |
| Thermocouple type | Thermocouple B |
| Thermocouple K | |
| Thermocouple E | |
| Thermocouple S | |
| Thermocouple N | |
| Thermocouple T | |
| Thermocouple R | |
| Thermocouple J |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 21 µV 77 °F (25 °C) +/- 25 mV |
| +/- 27 µV 77 °F (25 °C) +/- 100 mV | |
| +/- 46 µV 140 °F (60 °C) +/- 25 mV | |
| +/- 94 µV 140 °F (60 °C) +/- 100 mV | |
| Temperature probe type | Ni 100 0.125 mA +/- 25 mV |
| Ni 1000 0.125 mA +/- 100 mV | |
| Pt 100 0.125 mA +/- 25 mV | |
| Pt 1000 0.125 mA +/- 100 mV | |
| Update time | 500 ms |
| Isolation between channels | 400 V DC |
| Isolation between channels and | 500 V AC for 1 minute |
| ground | |
| Isolation between supply and ground | 500 V for 1 minute |
| Permissible common mode voltage | 100 V DC between channels to ground |
| 115 V AC single or three phases between channels | |
| 200 V DC between channels | |
| 250 V AC between channels to ground | |
| 250 V AC single phase between channels | |
| Common mode rejection | 120 dB DC between channels |
| 130 dB 50 Hz AC between channels | |
| 135 dB DC between channels to ground | |
| 140 dB 60 Hz AC between channels | |
| 145 dB 50 Hz AC between channels to ground | |
| 155 dB 60 Hz AC between channels to ground | |
| Serial mode rejection | 35 dB 50 Hz AC |
| 45 dB 60 Hz AC | |
| External power requirement | +/- 30 V DC |
| Power dissipation in W | <= 5.5 W |
| Reverse polarity protection | Internal |
| Protection type | Internal 2 A slow-blow |
| Associated fuse rating | 500 mA fast blow |
| Marking | CE |
| Local signalling | 4 LEDs channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | 305 mA 24 V DC |
| Depth | 1.87 in (47.5 mm) |
| Height | 4.92 in (125 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170AAI52040 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170AAI52040 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170AAI52040, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 170AAI52040 for credit when ordering from MRO Electric
The Schneider Electric 170AAI52040 is an analog input module designed for use with Modicon Quantum programmable logic controllers (PLCs), which are widely used in industrial automation and control systems. Here's an overview, description, specifications, installation guidelines, similar products, and frequently asked questions (FAQs) about the 170AAI52040 module:
The 170AAI52040 analog input module is part of Schneider Electric's Quantum series of PLC modules. It provides high-performance analog input capabilities, allowing the PLC to interface with various analog sensors and devices in industrial applications.
The 170AAI52040 module serves as an interface between the analog signals from sensors or other field devices and the digital processing capabilities of the Modicon Quantum PLC. It typically features multiple analog input channels, each capable of converting analog signals into digital data that the PLC can process.
Installation of the 170AAI52040 module involves mounting it onto a suitable DIN rail within the control panel and connecting it to the Quantum PLC using the appropriate bus interface. Analog sensors or devices are then connected to the module's input channels. The module's input ranges and other parameters are configured through the PLC programming software.
Always refer to the product documentation and manufacturer's guidelines for accurate and up-to-date information regarding the Schneider Electric 170AAI52040 analog input module.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170AAI52040, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170AAI52040 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
