Schneider Electric 170AAI03000

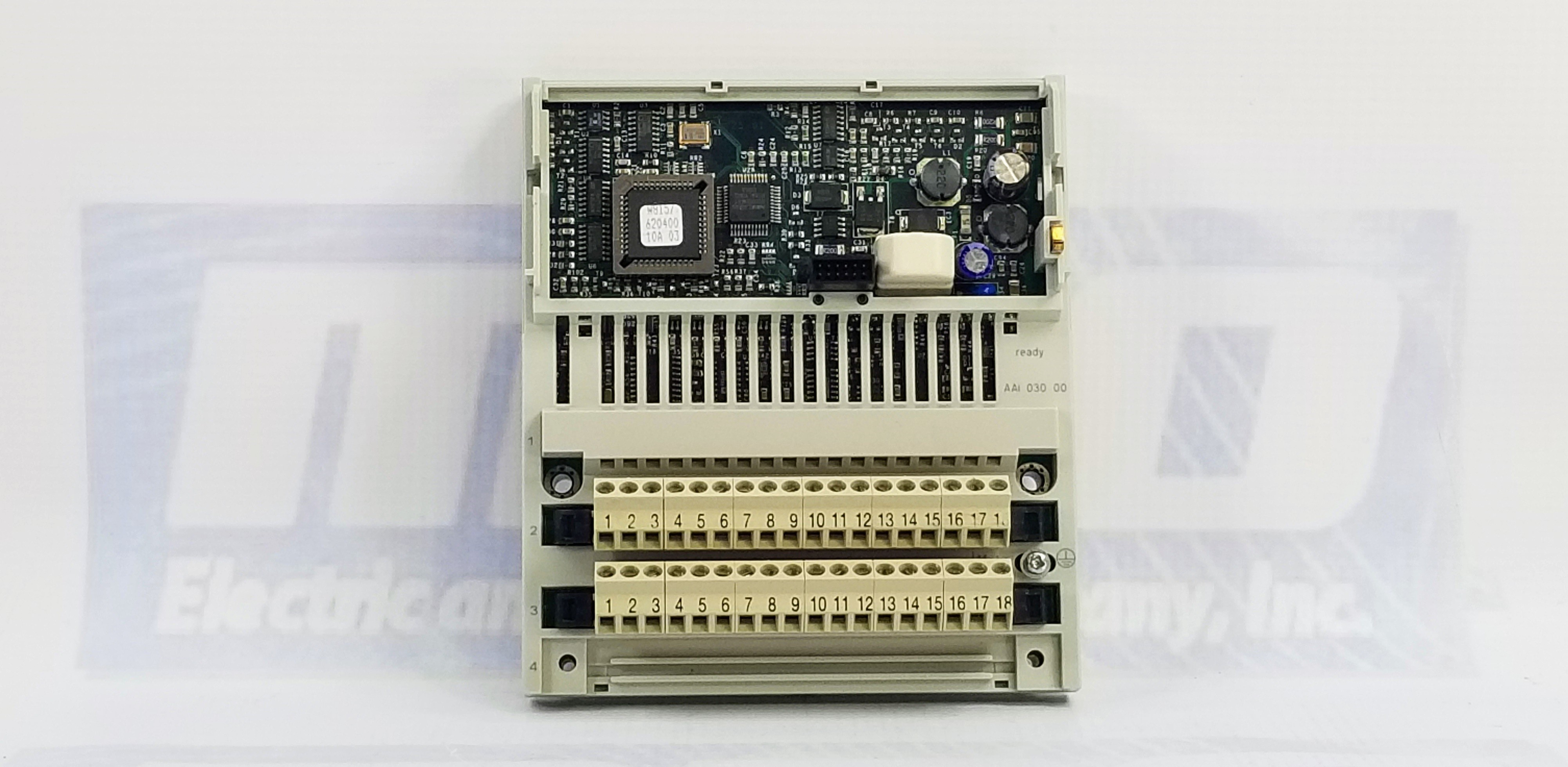

MODICON MOMENTUM DISTRIBUTED ANALOG INPUT - 8 INPUT

5/5
3 ratings

Select Condition

Refurbished

2 in stock

New

5 in stock

$479.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170AAI03000
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-AAI-030-00
Warranty2 Year
Electrical connection1 connector SUB-D 9 for connecting Modbus Plus network
1 connector SUB-D 9 for redundant Modbus Plus network
Range of productModicon Momentum automation platform
Product or component typeAnalogue input base
Analogue input number8
Analogue input typeDifferential
Analogue input range+/- 10 V 14 bits + sign > 0.1 kOhm
+/- 20 mA 14 bits + sign 250 kOhm
+/- 5 V 14 bits + sign > 0.1 kOhm
1...5 V 15 bits + sign > 0.1 kOhm
4...20 mA 15 bits + sign 250 kOhm
Data formatFull 16 bits signed
Absolute accuracy error+/- 0.13 % full scale 77 °F (25 °C) 1...5 V
+/- 0.19 % full scale 140 °F (60 °C) 1...5 V
+/- 0.21 % full scale 77 °F (25 °C) +/- 5 V
+/- 0.26 % full scale 140 °F (60 °C) +/- 5 V
+/- 0.27 % full scale 77 °F (25 °C) +/- 10 V
+/- 0.27 % full scale 77 °F (25 °C) 4...20 mA
+/- 0.32 % full scale 77 °F (25 °C) +/- 20 mA
+/- 0.32 % full scale 140 °F (60 °C) +/- 10 V
+/- 0.38 % full scale 140 °F (60 °C) 4...20 mA
+/- 0.41 % full scale 140 °F (60 °C) +/- 20 mA
Conversion time<= 12 ms 8
Isolation between channels+/- 200 V DC for 1 minute
Isolation between channels and500 V AC for 1 minute
ground
Isolation between channels and bus500 V AC for 1 minute
Permissible common mode voltage100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground
Common mode rejection>= 80 dB between channels to ground
External power requirement< 382 mA DC
20.4...28.8 V DC
24 V DC
Reverse polarity protectionInternal
MarkingCE
Local signalling1 LED green ready
8 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170AAI03000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170AAI03000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170AAI03000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 21 hours and 7 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170AAI03000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170AAI03000 Overview

Schneider Electric 170AAI03000 Modicon Momentum Analog Input Base

The Schneider Electric 170AAI03000 is an analog input base designed for the Modicon Momentum automation platform, making it a highly reliable and robust solution for industrial automation applications. This I/O module is built explicitly for handling differential analog inputs and provides exceptional versatility with its ability to handle various input ranges and types. The device supports up to 8 analog inputs, with a wide input range that includes +/-10 V, +/-5 V, +/-20 mA, 1-5 V, and 4-20 mA, each offering 14 to 15 bits of resolution, ensuring precise measurement of analog signals in different industrial processes.

The analog input module ensures high accuracy across various conditions, with an absolute accuracy error as low as +/- 0.13% full scale at 25°C (77°F) for 1-5 V inputs. Even in more challenging environments with higher temperatures, such as 60°C (140°F), the accuracy remains competitive, with error margins as low as +/- 0.19% full scale for 1-5 V inputs. This reliability is essential in maintaining the efficiency and precision of control systems in harsh industrial environments.

One of the 170AAI03000's significant advantages is its fast conversion time, with a response time of less than 12 ms for all eight channels. This makes it suitable for time-sensitive applications where quick data acquisition is critical. The device also provides robust isolation features, with +/-200 V DC isolation between channels and 500 V AC isolation between channels and ground, ensuring the safety and protection of connected equipment. The common mode rejection ratio of 80 dB or greater further improves its signal integrity, reducing noise and ensuring accurate readings.

Connectivity and Power

The 170AAI03000 module features SUB-D 9 connectors for connecting to the Modbus Plus network and a redundant Modbus Plus network, making it highly adaptable to complex network architectures. Additionally, the device includes two connectors for removable terminal blocks, ensuring ease of installation and maintenance.

This module operates on external DC power, requiring a voltage range of 20.4 to 28.8 V DC with a current draw of less than 382 mA. It also features reverse polarity protection, enhancing durability and longevity in demanding environments. The green LED indicator provides a quick status check to ensure the system is operational, while eight additional LEDs indicate the status of each input channel.

Design and Standards

The Schneider Electric 170AAI03000 has a compact form factor, with a depth of 1.87 inches and a height of 4.92 inches, making it easy to integrate into tight spaces within control cabinets or enclosures. The module meets CE marking standards, ensuring compliance with international safety regulations.

This I/O module is an ideal solution for industries that require reliable, high-precision analog input processing, such as manufacturing, utilities, and infrastructure projects. Its wide range of input types and accuracy across different environmental conditions make it highly versatile and dependable.

Warranty and Shipping

The 170AAI03000 module has a 2-year warranty when purchased from MRO Electric and Supply, offering peace of mind and quality assurance. Customers also benefit from free shipping, making this a cost-effective and convenient option for businesses looking to enhance their automation systems.

FAQs

1. What is the primary function of the Schneider Electric 170AAI03000?

The 170AAI03000 is an analog input base designed for the Modicon Momentum automation platform. It can handle eight differential analog inputs with various voltage and current input types.

2. What types of analog inputs does the module support?

The module supports several analog inputs, including +/-10 V, +/-5 V, +/-20 mA, 1-5 V, and 4-20 mA, with 14 to 15 bits resolution.

3. What is the accuracy of the 170AAI03000?

The module offers high accuracy, with an absolute accuracy error as low as +/- 0.13% full scale at 25°C (77°F) for 1-5 V inputs.

4. How fast is the conversion time?

The conversion time is less than 12 ms for all eight channels, making it suitable for fast data acquisition applications.

5. Does the module offer isolation?

The 170AAI03000 provides +/-200 V DC isolation between channels and 500 V AC isolation between channels and ground, ensuring protection and safety.

6. What are the power requirements?

The module operates on external DC power with a 20.4 to 28.8 V DC voltage range and a current draw of less than 382 mA.

7. What are the dimensions of the 170AAI03000?

The module is 1.87 inches deep and 4.92 inches high, making it compact and easy to install.

8. Does the module come with a warranty?

Yes, when purchased from MRO Electric and Supply, it comes with a 2-year warranty.

9. Is free shipping available?

Yes, free shipping is offered with the purchase of the 170AAI03000 module from MRO Electric and Supply.

10. What types of connectors are used for Modbus Plus?

The module uses SUB-D 9 connectors for both the Modbus Plus network and a redundant Modbus Plus network.
