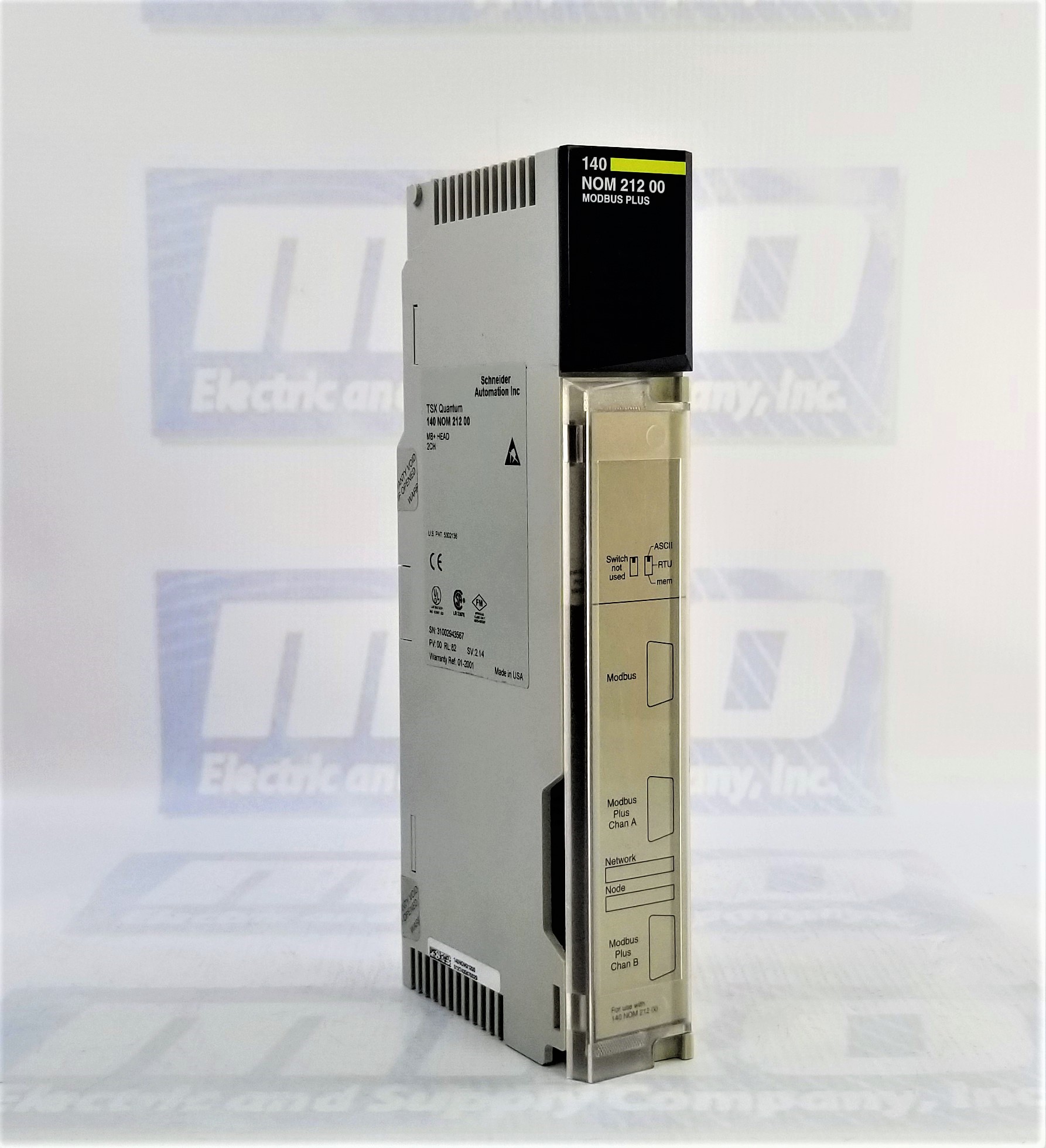

Schneider Electric 140NOM21200

Schneider Electric 140NOM21200

The 140NOM21200 DIO head-end adaptor is an essential component of the Modicon Quantum automation platform, offering seamless integration and efficient data communication in industrial automation systems. Designed for reliability and versatility, this adaptor facilitates communication between devices within the system, ensuring smooth operation and enhanced control.

Key Features:

Product Compatibility: The 140NOM21200 is compatible with various modules within the Modicon Quantum platform, including the 140CRA21210 and 140CRA21220 modules, ensuring interoperability and ease of integration.

Port Configuration: It features one Modbus RS232 twisted pair redundant copper port and two Modbus Plus RS485 twisted pair redundant copper ports, providing flexible connectivity options for different devices and networks.

High Transmission Rate: With a transmission rate of 1 Mbit/s, the adaptor ensures fast and efficient data exchange, facilitating real-time monitoring and control of industrial processes.

I/O Capacity: The adaptor offers 30 input and 32 output words, enabling comprehensive data acquisition and control capabilities to meet the demands of complex automation systems.

Built-in Checks: It incorporates various checks including RAM, processor, RAM address, and checksum, ensuring data integrity and system reliability.

Low Power Consumption: With a power dissipation of only 4 W, the adaptor minimizes energy consumption, contributing to cost savings and environmental sustainability.

Robust Environmental Resistance: The adaptor is designed to withstand harsh industrial environments, with resistance to electrostatic discharge (4 kV contact, 8 kV on air) and electromagnetic fields (up to 9.14 V/m).

Wide Operating Temperature Range: It operates reliably within a temperature range of 32 to 140 °F (0 to 60 °C), making it suitable for use in diverse industrial settings.

Comprehensive Certifications: The adaptor holds certifications from UL, CSA, FM Class 1 Division 2, GOST, GL, RINA, RMRS, DNV, and C-tic, ensuring compliance with industry standards and regulatory requirements.

Benefits:

Enhanced Connectivity: The multiple port configurations allow for seamless integration with different devices and networks, facilitating efficient data exchange and communication.

Improved Control: With high-speed transmission and comprehensive I/O capacity, the adaptor enables precise monitoring and control of industrial processes, enhancing operational efficiency and productivity.

Reliability and Durability: Designed to withstand harsh industrial environments and equipped with built-in checks for data integrity, the adaptor ensures reliable and uninterrupted operation, minimizing downtime and maintenance costs.

Cost-effective Solution: The low power consumption and robust design contribute to cost savings over the long term, making it a cost-effective solution for industrial automation applications.

Compliance and Safety: The comprehensive certifications demonstrate compliance with industry standards and regulations, ensuring safety and peace of mind for users.

FAQ (Frequently Asked Questions)

What is a DIO head-end adaptor, and what is its role in industrial automation?

A DIO head-end adaptor, such as the 140NOM21200, serves as an interface between various devices and networks within an industrial automation system. It facilitates communication, data exchange, and control between different components, enabling seamless operation and coordination.

How many ports does the 140NOM21200 have, and what are their configurations?

The 140NOM21200 features one Modbus RS232 twisted pair redundant copper port and two Modbus Plus RS485 twisted pair redundant copper ports. These ports offer flexibility in connectivity, allowing integration with different devices and networks.

What is the transmission rate supported by the 140NOM21200?

The adaptor supports a transmission rate of 1 Mbit/s, ensuring fast and efficient data exchange for real-time monitoring and control of industrial processes.

What certifications does the 140NOM21200 hold, and what do they signify?

The 140NOM21200 is certified by UL, CSA, FM Class 1 Division 2, GOST, GL, RINA, RMRS, DNV, and C-tic. These certifications demonstrate compliance with industry standards and regulatory requirements, ensuring reliability, safety, and compatibility with industrial environments.

What environmental conditions can the 140NOM21200 withstand?

The adaptor is designed to operate within a wide temperature range of 32 to 140 °F (0 to 60 °C) and can withstand harsh industrial environments, including resistance to electrostatic discharge and electromagnetic fields.

What is the power consumption of the 140NOM21200, and how does it contribute to energy efficiency?

The adaptor has a power dissipation of only 4 W, making it energy-efficient and contributing to cost savings over the long term. Its low power consumption also reduces environmental impact and operational costs.

Is the 140NOM21200 suitable for use in safety-critical applications?

Yes, the 140NOM21200 is suitable for use in safety-critical applications, as indicated by its certifications, including FM Class 1 Division 2, which signifies compliance with safety standards for hazardous locations.

Can the 140NOM21200 be integrated with other components of the Modicon Quantum platform?

Yes, the 140NOM21200 is compatible with various modules within the Modicon Quantum platform, ensuring seamless integration and interoperability with other components for comprehensive automation solutions.

What measures are in place to ensure data integrity and system reliability with the 140NOM21200?

The adaptor incorporates built-in checks for RAM, processor, RAM address, and checksum, ensuring data integrity and system reliability, thereby minimizing downtime and maintenance costs.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
