Schneider Electric 140NOE77110

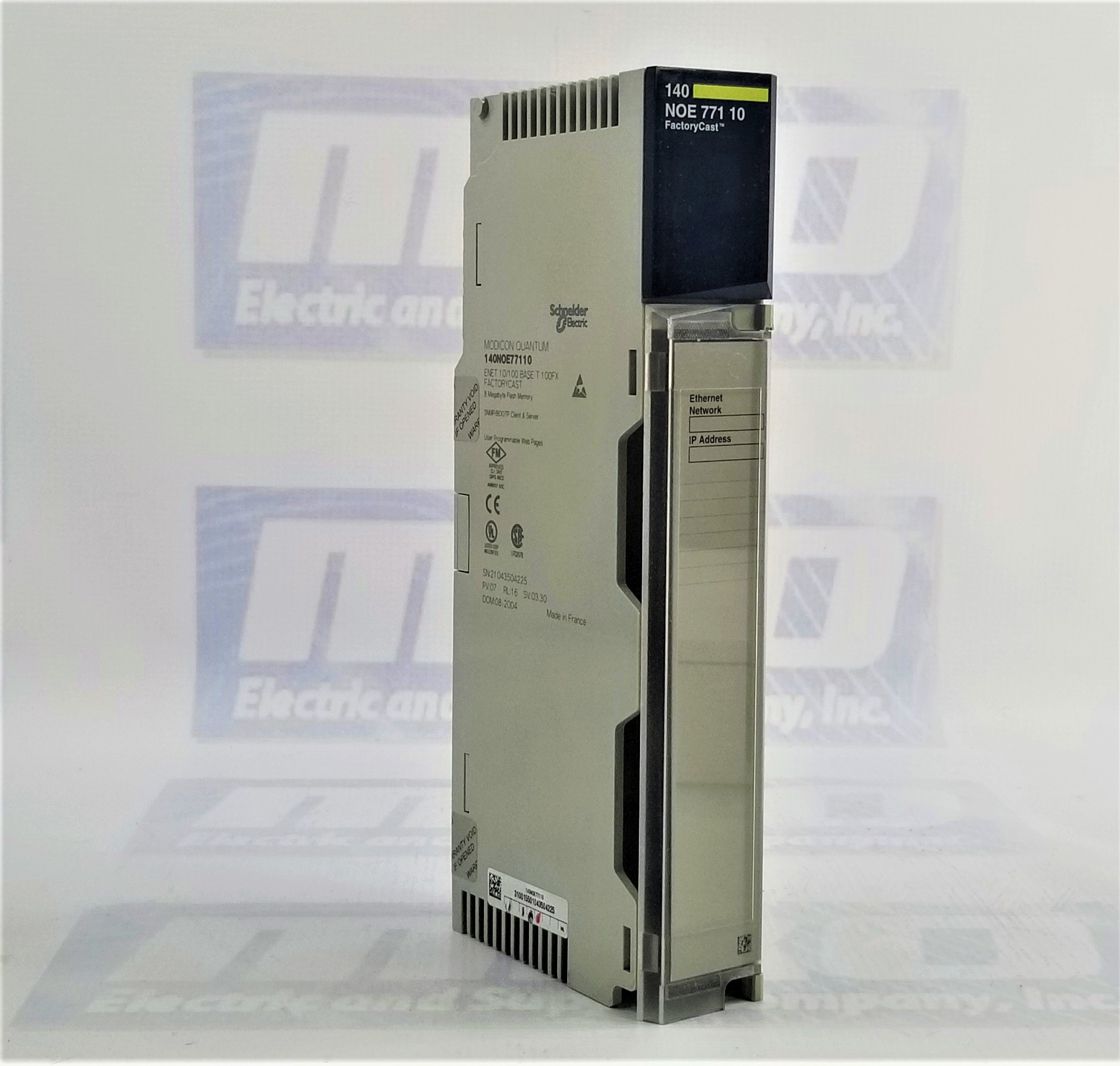

140NOE77110 Ethernet Network TCP/IP Module

The 140NOE77110, an integral part of the Modicon Quantum automation platform, is a sophisticated Ethernet network TCP/IP module designed for seamless integration into industrial networks. With its transparent and FactoryCast configurable features, this module provides advanced networking capabilities for the Modicon Quantum platform.

Concept: Transparent Ready

The 140NOE77110 embodies the concept of being "Transparent Ready," indicating its ability to seamlessly integrate into existing industrial networks without disrupting operations. This transparency ensures a smooth and efficient deployment within the Modicon Quantum automation platform.

Web Server Class C20

Equipped with a Class C20 web server, the 140NOE77110 delivers a user-friendly interface for configuration and monitoring. The web services include a data editor, rack viewer, and FactoryCast configurability, providing users with comprehensive tools for network management.

Communication Services

The module supports SNMP network management and Modbus TCP messaging, enhancing communication capabilities for efficient data exchange in industrial settings.

Communication Port Protocol

Operating on the Ethernet Modbus TCP/IP protocol, the 140NOE77110 ensures compatibility with standard industrial communication protocols. The physical interface includes MT/RJ for 100BASE-FX fiber optic and RJ45 for 10BASE-T/100BASE-TX twisted pair connections, offering versatility in network setups.

Redundancy

Featuring hot standby redundant architecture, the module ensures uninterrupted network operation even in the event of a failure. This redundancy capability is crucial for maintaining continuous and reliable communication in critical industrial applications.

Local Signalling

With a robust system of LEDs, the module provides local signaling for various network parameters. LEDs indicate data rate (10 MB/100 MB), collision detection (Coll), download mode (Kernel), Ethernet module fault (Fault), Ethernet network status (RUN), full-duplex mode (Fduplex), module readiness (Ready), network activity (Link), and rack operational status (Active). This comprehensive signaling system aids in quick diagnostics and troubleshooting.

Current Consumption and Module Format

Operating at 750 mA and 5 V DC, the 140NOE77110 maintains efficient power consumption. The standard module format and lightweight design with a net weight of 0.76 lb(US) (0.345 kg) ensure easy integration into the Quantum automation platform.

Environmental Resilience

The module adheres to an IP20 degree of protection, safeguarding it against solid objects. It holds certifications including cUL, UL 508, FM Class 1 Division 2, and CSA C22.2 No 142, attesting to its compliance with rigorous industry standards.

Electromagnetic Compatibility

Resilience to electrostatic discharge and electromagnetic fields is demonstrated with ratings of 4 kV contact and 8 kV on air (IEC 801-2), and 9.14 V/m (10 V/m) from 80 to 1000 MHz (IEC 801-3). These features ensure stable operation even in challenging electromagnetic environments.

Operating Conditions

Operating within a temperature range of 32 to 140 °F (0 to 60 °C) and a storage temperature range of -40 to 185 °F (-40 to 85 °C), the module remains reliable in diverse industrial environments. It can operate at altitudes up to 14763.78 ft (4500 m).

Frequently Asked Questions (FAQs)

1. What is the primary function of the 140-NOE-771-10 module?

The 140-NOE-771-10 Ethernet network module enables Modbus TCP/IP communication for automation systems, providing seamless connectivity to support transparent communication in industrial applications.

2. What types of communication services does this module support?

This module supports Modbus TCP messaging, SNMP network management, and web services such as a data editor, FactoryCast configurator, and rack viewer.

3. Does the module support redundancy?

Yes, it supports a hot standby redundant architecture, ensuring uninterrupted operation in critical applications.

4. What transmission rates are supported?

The module operates at 10 Mbps and 100 Mbps, allowing for flexible data transmission speeds based on network requirements.

5. What type of physical interfaces does the module use?

The module features RJ45 interfaces for 100BASE-FX twisted pair connections and MT/RJ connectors for 10BASE-T/100BASE-TX fiber optic connectivity.

6. How is the module powered?

The module is powered via the rack's power supply and has a current consumption of 750 mA at 5 V DC.

7. What kind of diagnostics does the module provide?

It has multiple LED indicators for diagnostics, signaling transmission/reception activity, rack operational status, network activity, module readiness, data rate, full-duplex mode, collision detection, and faults.

8. What web server capabilities does the module include?

The module includes Transparent Ready web server capabilities, classified as Class C20, allowing configuration and data visualization through web services like a data editor and rack viewer.

9. Is the module CE-marked?

Yes, the module meets CE marking standards, ensuring compliance with European safety and performance regulations.

10. What is the warranty for the 140-NOE-771-10?

The module comes with a two-year warranty, providing long-term reliability and peace of mind.
