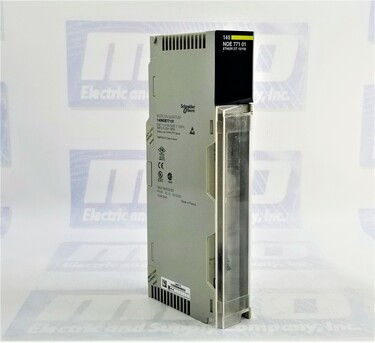

MODICON QUANTUM ETHERNET ETHERNET NETWORK TCP/IP MODULE - CLASS B30 - DATA EDITOR, RACK VIEWER
| Part Number | 140NOE77101 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-NOE-771-01 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Ethernet network TCP/IP module |
| Concept | Transparent Ready |
| Web server | Class B30 |
| Web services | Data Editor (via PC terminal) |
| Diagnostics via predefined web pages | |
| Rack viewer |
| Communication service | Bandwidth management |
| FDR server | |
| Global Data | |
| I/O scanning | |
| Modbus TCP messaging | |
| SNMP network management | |
| Communication port protocol | Ethernet Modbus TCP/IP |
| Physical interface | RJ45 10BASE-T/100BASE-TX twisted pair |
| MT/RJ 100BASE-FX fiber optic | |
| Transmission rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
| Supply | Via the power supply of the rack |
| Marking | CE |
| Local signalling | 1 LED transmission/reception activity (TxAct/RxAct) |
| 1 LED rack operational (Active) | |
| 1 LED network active (Link) | |
| 1 LED module ready (Ready) | |
| 1 LED full-duplex mode (Fduplex) | |
| 1 LED Ethernet network status (RUN) | |
| 1 LED Ethernet module fault (Fault) | |
| 1 LED download mode (Kernel) | |
| 1 LED collision detection (Coll) | |
| 1 LED 10 Mbps or 100 Mbps data rate (10 MB/100 MB) | |
| Current consumption | 750 mA 5 V DC |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140NOE77101 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140NOE77101 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140NOE77101, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140NOE77101 for credit when ordering from MRO Electric
Can the Quantum 140NOE77101 ethernet module be assigned an IP address without a CPU module?
Can the host name of the Quantum 140NOE77101 be changed?
How do you change the user name and password of 140NOE77101?
Does the 140NOE77101 support the NTP service?
What are the new features in the 140NOE77101 which replaces the 140NOE77100 ethernet module?
The Schneider Electric 140NOE77101 is a high-performance Ethernet network module designed for industrial automation applications. As part of the Modicon Quantum series, this I/O module facilitates seamless Ethernet Modbus TCP/IP communication, enabling efficient data transmission and management across automated systems. It is ideal for industries requiring fast, reliable, and redundant network solutions to maintain operational efficiency.
This Transparent Ready module supports Class B30 web servers, allowing users to access diagnostics and data editing services remotely via a PC terminal. The predefined web pages provide real-time status updates, ensuring effective network management. The module is engineered for hot standby redundancy, enhancing reliability in critical automation processes.
The 140NOE77101 module offers robust Ethernet communication with a 10BASE-T/100BASE-TX RJ45 twisted pair interface and an MT/RJ 100BASE-FX fiber optic interface for high-speed data transfer at 10/100 Mbit/s. It features multiple network services, including Modbus TCP messaging, I/O scanning, bandwidth management, SNMP network management, and FDR server support. The module receives its power directly from the rack power supply, consuming 750 mA at 5V DC.
To facilitate easy monitoring and diagnostics, the module includes multiple LED indicators, such as:
Built for industrial automation, the Schneider Electric 140NOE77101 is CE-marked, ensuring compliance with global quality and safety standards. Its redundant architecture guarantees high availability, making it suitable for mission-critical applications that demand continuous operation without network failures.
The Schneider Electric 140NOE77101 is available immediately at MRO Electric and Supply. It has free shipping and a 2-year warranty, ensuring peace of mind for industrial users.
What is the Schneider Electric 140NOE77101 used for?
It is an Ethernet module for Modicon Quantum automation systems, enabling seamless TCP/IP communication in industrial networks.
How does this module support remote access?
It features a Class B30 web server, allowing users to monitor diagnostics, edit data, and view rack status via a PC terminal.
What communication protocols does it support?
It supports Ethernet Modbus TCP/IP and services such as Modbus TCP messaging, I/O scanning, bandwidth management, and SNMP network management.
Does this module support redundancy?
Yes, it is designed for a hot standby redundant architecture, ensuring reliability in critical industrial applications.
What physical interfaces does this module have?
It includes an RJ45 10BASE-T/100BASE-TX twisted pair interface and an MT/RJ 100BASE-FX fiber optic interface for high-speed data transmission.
What is the data transmission rate of this module?
The module supports 10/100 Mbit/s Ethernet communication, ensuring fast and reliable network performance.
How is the module powered?
It is powered via the rack power supply, consuming 750 mA at 5V DC.
What LED indicators are available on this module?
It includes multiple LEDs for monitoring network status, transmission activity, fault detection, and data rate (10 Mbps/100 Mbps).
What certifications does this module have?
It carries a CE marking, ensuring international safety and performance standards compliance.
Where can I purchase the Schneider Electric 140NOE77101?
It is available immediately at MRO Electric and Supply, with free shipping and a 2-year warranty.
