140NOC78100

2-year Warranty

Same Day Shipping

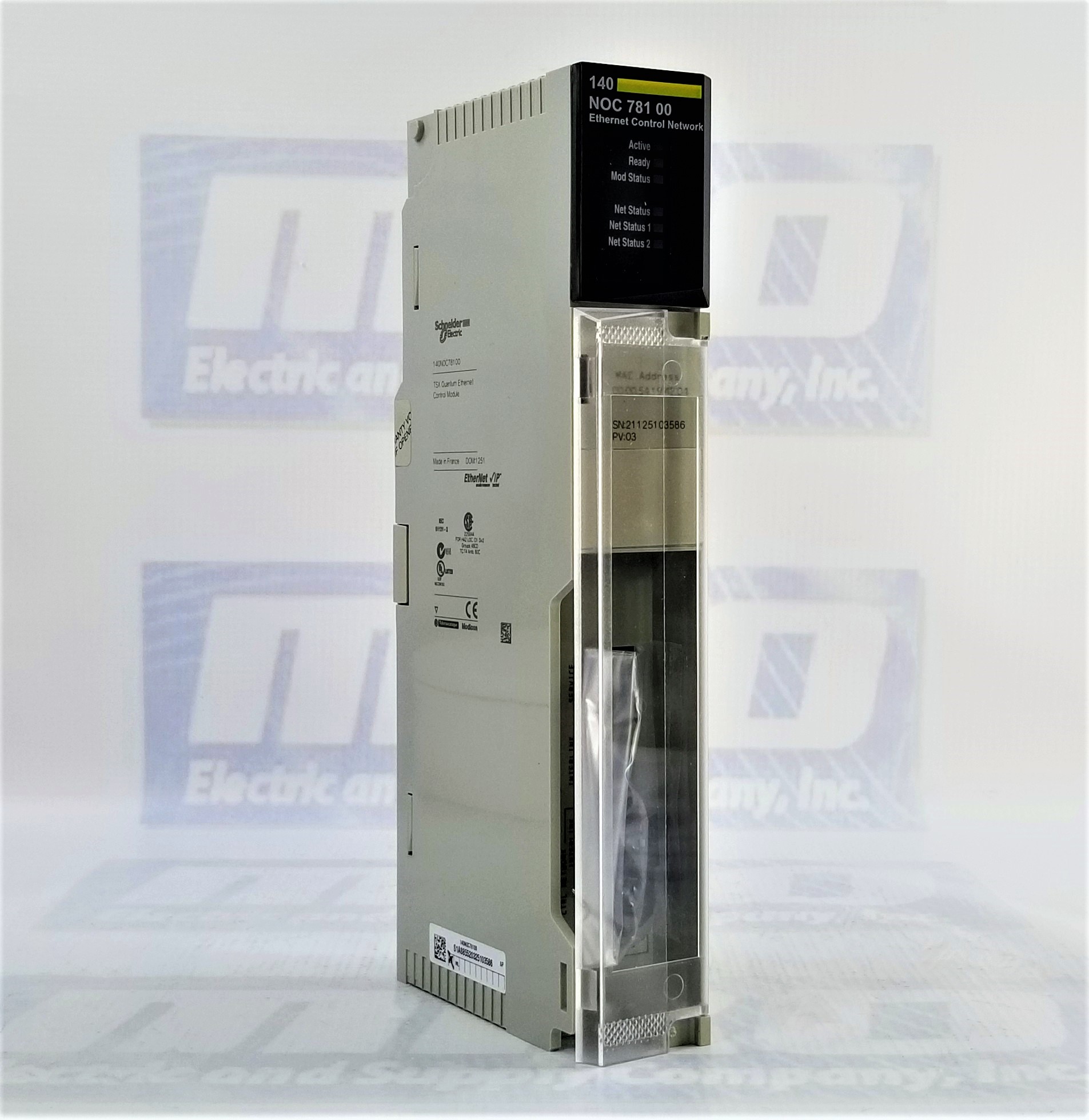

Schneider Electric 140NOC78100

MODICON QUANTUM ETHERNET CONTROL NETWORK MODULE - RJ45 - 10/100 MBIT/S

5/5
2 ratings

1 in stock


Free Shipping

2 Year warranty

Part Number140NOC78100
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-NOC-781-00
Warranty2 Year
Module formatStandard
Product or component typeEthernet control module
Product compatibility140CPU6xxxx
Communication port protocolModbus TCP
Ethernet/IP
Exchange modeFull duplex
Maximum number of connections64
Transmission rate10/100 Mbit/s
RedundancyYes hot standby redundant architecture
TopologyDaisy chain loop
Redundant ring
Web serverEmbedded
Communication serviceEmbedded router
CIP implicit messaging (I/O communication)
NTP time synchronization
FDR server
DHCP/BootP server
SMTP e-mail notification
Device Type Manager (DTM)
SNMP agent
Quality of Service (QoS)
CIP Explicit messaging (client messaging)
Embedded 4-port switch
Ethernet serviceRapid Scanning Tree Protocol (RSTP)
Transmission support mediumTwisted pair
Port Ethernet10BASE-T/100BASE-TX, connector type: RJ45
MarkingCE
SupplyVia the power supply of the rack
Local signalling1 LED green for communication on the bus (Active)
1 LED green for configuration status (Ready)
1 LED green/red for device network status (Net Status 1)
1 LED green/red for extended DIO network status (Net Status 2)
1 LED green/red for module status (Mod Status)
1 LED green/red for network communication status (Net Status)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140NOC78100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140NOC78100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140NOC78100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 23 hours and 31 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140NOC78100 for credit when ordering from MRO Electric

Can the Quantum backplane support more than one 140NOC78100 at a time?

  • Multiple modules are not supported in any Quantum configuration.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140NOC78100 Overview

Schneider Electric 140NOC78100: Revolutionizing Ethernet Control Modules

Unleash the Power of Connectivity

Schneider Electric presents the 140NOC78100, an Ethernet control module designed to redefine connectivity standards. Compatible with the 140CPU6xxxx series, this module facilitates seamless communication with various devices through Modbus TCP and Ethernet/IP protocols. Its versatility extends to many applications, ensuring optimal performance in diverse industrial settings.

Efficiency Redefined: Module Specifications

Incorporating a standard format, the 140NOC78100 boasts various features to enhance operational efficiency. With a maximum connection capacity of 64 and a transmission rate of 10/100 Mbit/s, it ensures swift and reliable data exchange. Embracing redundancy with hot standby architecture, this module offers unparalleled reliability, ensuring uninterrupted operation despite network disruptions.

Versatile Connectivity: Communication Capabilities

Equipped with a comprehensive suite of communication services, including an embedded router and CIP implicit messaging, the 140NOC78100 facilitates seamless integration into existing networks. Offering NTP time synchronization and SMTP email notifications, it empowers users with real-time insights and proactive maintenance capabilities. Support for SNMP agents and Quality of Service (QoS) ensures optimal performance and network management.

Seamless Integration: Web Server and Embedded Switch

Featuring an embedded web server, the 140NOC78100 simplifies configuration and monitoring, offering intuitive access to critical parameters. Its embedded 4-port switch enables streamlined connectivity, facilitating hassle-free integration of multiple devices. Leveraging Rapid Scanning Tree Protocol (RSTP) optimizes data transmission, ensuring minimal latency and maximum throughput.

Reliable Performance: Robust Design

Built to withstand demanding industrial environments, the 140NOC78100 boasts a rugged construction and CE marking, guaranteeing compliance with stringent quality standards. Powered via the rack's power supply, it eliminates the need for external power sources, streamlining installation and maintenance. Its comprehensive LED indicators provide at-a-glance status updates, ensuring quick diagnosis and troubleshooting.

Conclusion: Empowering Connectivity

In conclusion, the Schneider Electric 140NOC78100 redefines connectivity in industrial automation, offering unmatched performance, reliability, and versatility. Its seamless integration with Modbus TCP and Ethernet/IP protocols, its comprehensive communication services, and its robust design sets a new standard for Ethernet control modules. Whether deployed in manufacturing facilities, utilities, or infrastructure projects, it empowers organizations to achieve operational excellence in the digital age.

Frequently Asked Questions about Schneider Electric 140NOC78100

What is the Schneider Electric 140NOC78100? The Schneider Electric 140NOC78100 is an Ethernet control module designed for industrial applications. It facilitates communication between devices using Modbus TCP and Ethernet/IP protocols.

What compatibility does it offer? This module is compatible with the 140CPU6xxxx series, enabling seamless integration into existing Schneider Electric systems.

What sets the 140NOC78100 apart? Its standout features include a maximum connection capacity of 64, a transmission rate of 10/100 Mbit/s, support for redundancy with hot standby architecture, and embedded communication services such as an embedded router and CIP implicit messaging.

How does the 140NOC78100 ensure uninterrupted operation? It features hot standby redundant architecture, ensuring uninterrupted operation even in the event of network disruptions. Additionally, its rugged construction and CE marking guarantee reliability in demanding industrial environments.

What communication services does it offer? It offers a comprehensive suite of communication services, including NTP time synchronization, SMTP email notifications, SNMP agent support, and Quality of Service (QoS) management.

How does the 140NOC78100 make your job easier? With its embedded web server, it allows for intuitive configuration and monitoring, providing easy access to critical parameters.

Does it support network management? It supports network management through features such as Rapid Scanning Tree Protocol (RSTP) for optimized data transmission and SNMP agent support for network monitoring.

How is power supplied to the module? Power is provided via the rack's power supply, eliminating the need for external power sources and simplifying installation and maintenance.

What are the LED indicators for? LED indicators provide status updates on communication, configuration, device network status, module status, and network communication status, enabling quick diagnosis and troubleshooting.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140NOC78100, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140NOC78100 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
